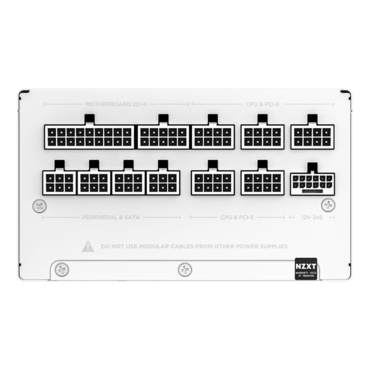

Output Connectors |
24-pin ATX Power Cable: |
1 |
4+4-pin CPU Power Cable: |
1 |
8-pin CPU Power Cable: |
1 |
6+2-pin PCIe Power Cable: |
3 |
16-pin (12+4) 12V-2x6 PCIe Cable: |
1 |
SATA Cable: |
12 |
Peripherals Cable: |
4 |
Cable Specs |
24-pin ATX Power Cable: |
600mm with nylon sleeving |
4+4-pin CPU Power Cable: |
700mm with nylon sleeving |
8-pin CPU Power Cable: |
700mm with nylon sleeving |
6+2-pin PCIe Power Cable: |
650mm with nylon sleeving |
16-pin (12+4) 12V-2x6 PCIe Cable: |
650mm with nylon sleeving |
SATA Cable: |
500 + 150mm |
Peripherals Cable: |
500 + 150mm |
AC Input Rating |
100 - 240Vac: |
13A 50Hz-60Hz |
200 - 240Vac: |
6.5A 50Hz-60Hz (China & South Korea) |
DC Output Rating |
3.3V / +5V: |
22A (120W) |
12V: |
83.3A (1000W) |
5Vsb: |
3A (15W) |
Total: |
1000W |
Energy Efficiency |
Rating: |
80 Plus Gold |
10% loading: |
85.5% @115Vac |
20% loading: |
89.7% @115Vac |
50% loading: |
91.9% @115Vac |
100% loading: |
89.3% @115Vac |
Electrical Features |
PF Correction: |
Active @0.99 |
Protections: |
OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) / |

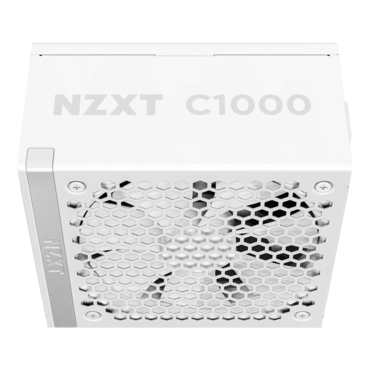

Fan Specs |
Dimensions: |
135 x 135 x 25 mm |
Speed: |
2300 ± 10% RPM |
Airflow: |
93.02 CFM (Min.) |
Noise: |
44.5 dBA max |
Bearing: |
Fluid Dynamic Bearing (FDB) |
Operation |
MTBF: |
100,000 hours |
Temperature: |
0 - 50 °C |
Dimensions |
Width: |
150 mm |
Height: |
86 mm |
Depth: |
160 mm |
General |
Material(s): |
Steel, PCB and Plastic |
Compliance Standard: |
ATX12V v3.1 / EPS12V v2.92 |
Regulation & Certification: |
FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65 |
Warranty: |
10 Years |
Model Number (White): |
PA-0G2BW-US |
EAN (White): |
55056547206332 (US) |
UPC (White): |
810074846394 (US) |
