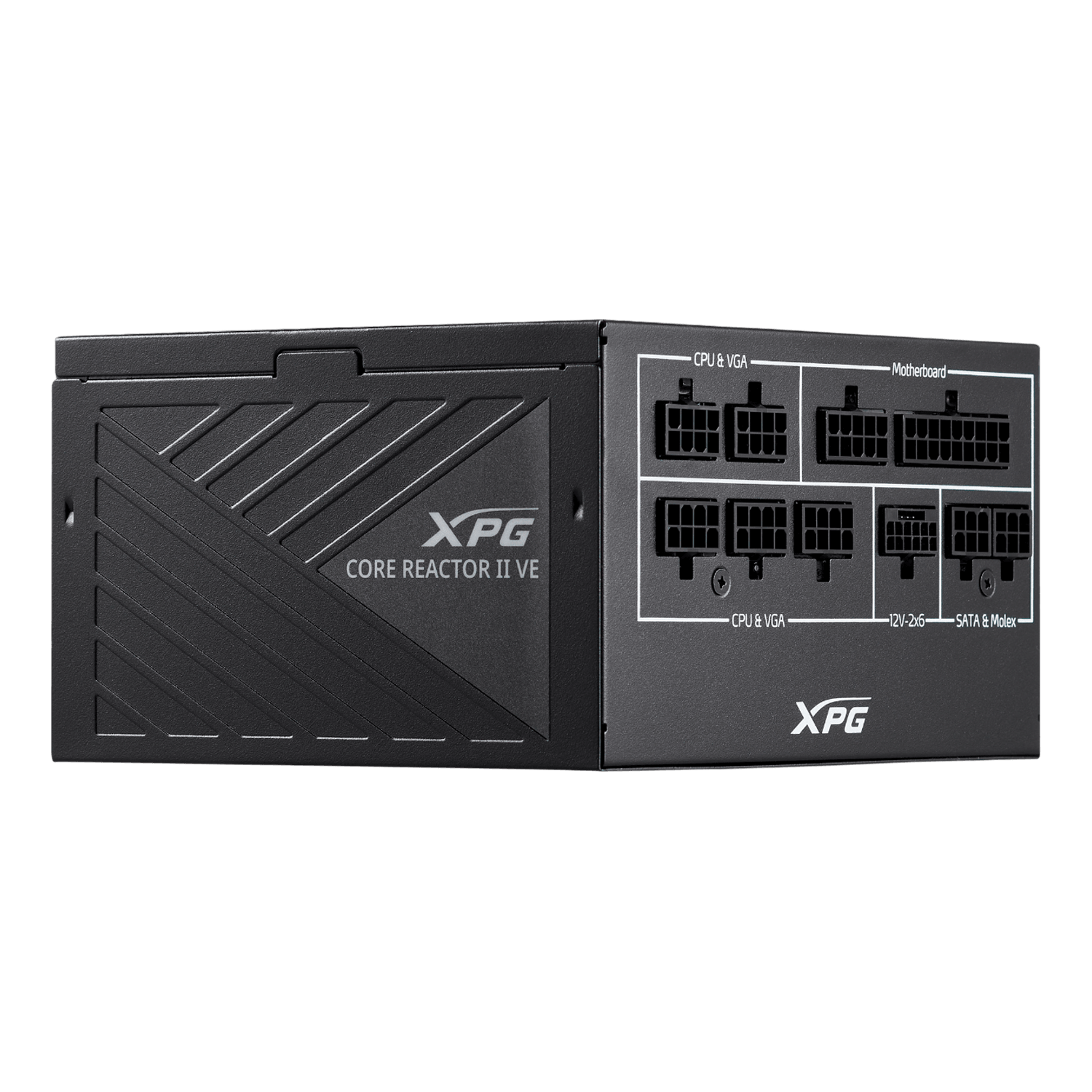

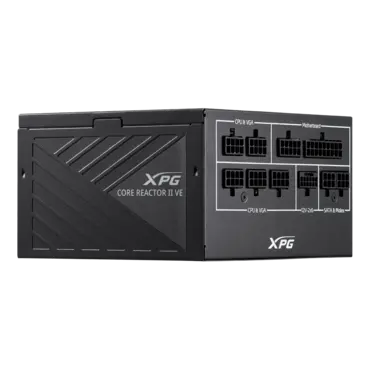

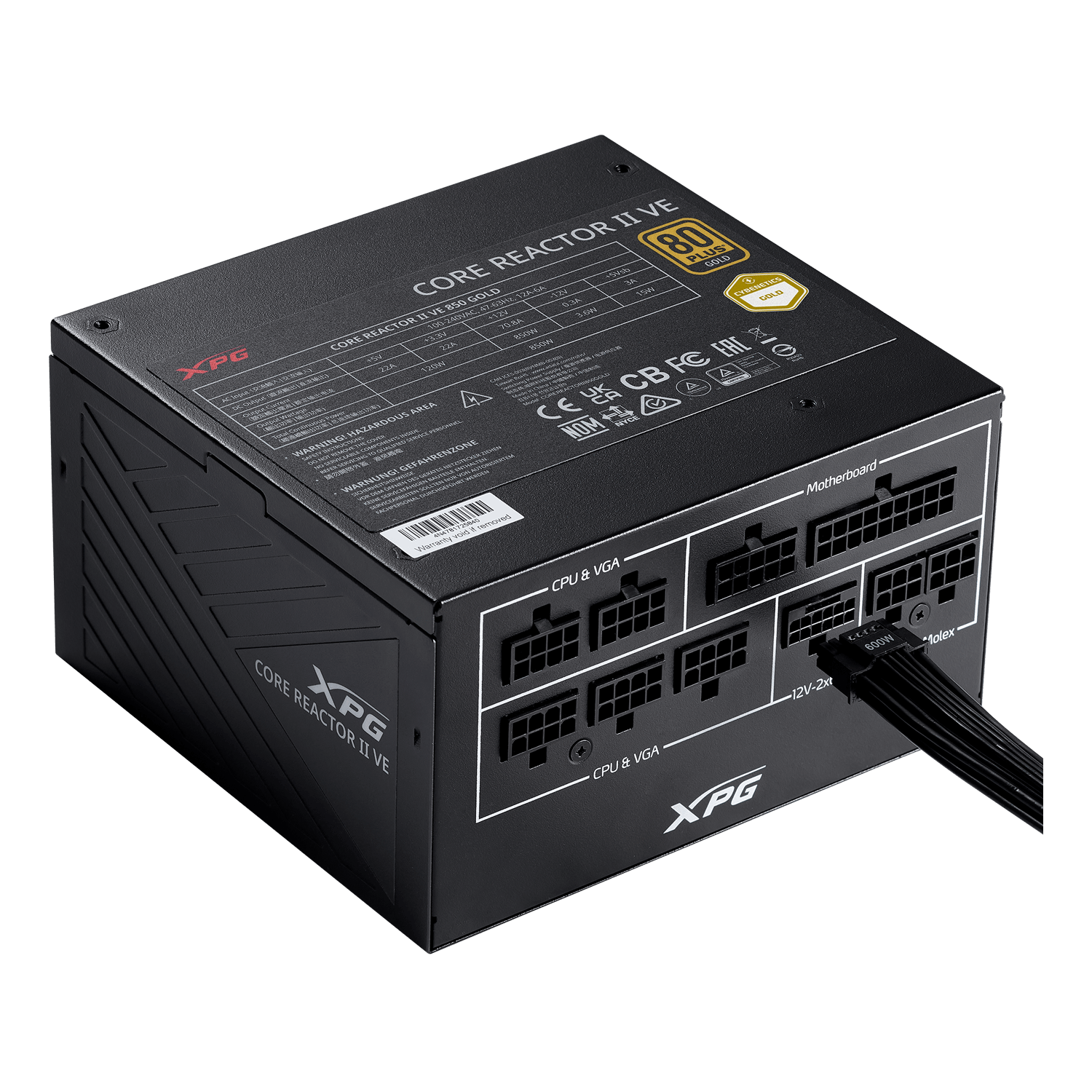

CORE REACTOR II VE 750, 80 PLUS Gold 750W, Fully Modular, ATX Power Supply

Quantity:
  • SKU: 18596254
  • Manufacturer: XPG
  • MPN: 75261418
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$120.48
Quantity:
Dimensions (L x W x H) 140 x 150 x 86mm
Cybenetics Rating GOLD
80 Plus Rating GOLD
ATX Version Intel ATX 12V v3.1
Protections OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP
Certification CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus
PFC 0.99
Input Voltage 100-240V
Input Current 750W: 10A
Input Frequency 47Hz-63Hz
DC Output Voltage +5V | +3.3V | +12V | -12V | +5Vsb
Total Output 750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A
Power Excursion 750W: 1762W (*up to 235% of the PSU's rated power for 100μs)
Operating Temperature 40°C

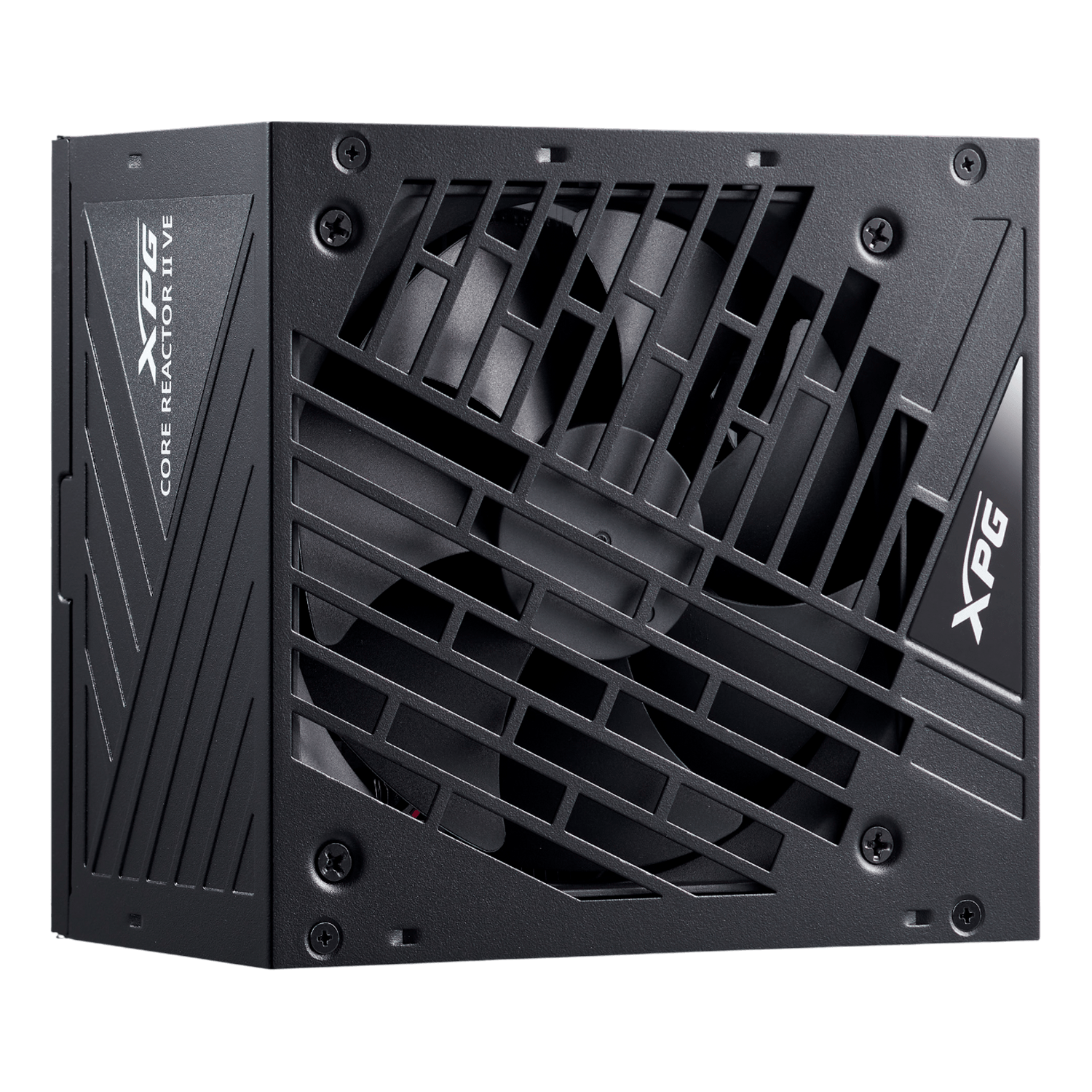

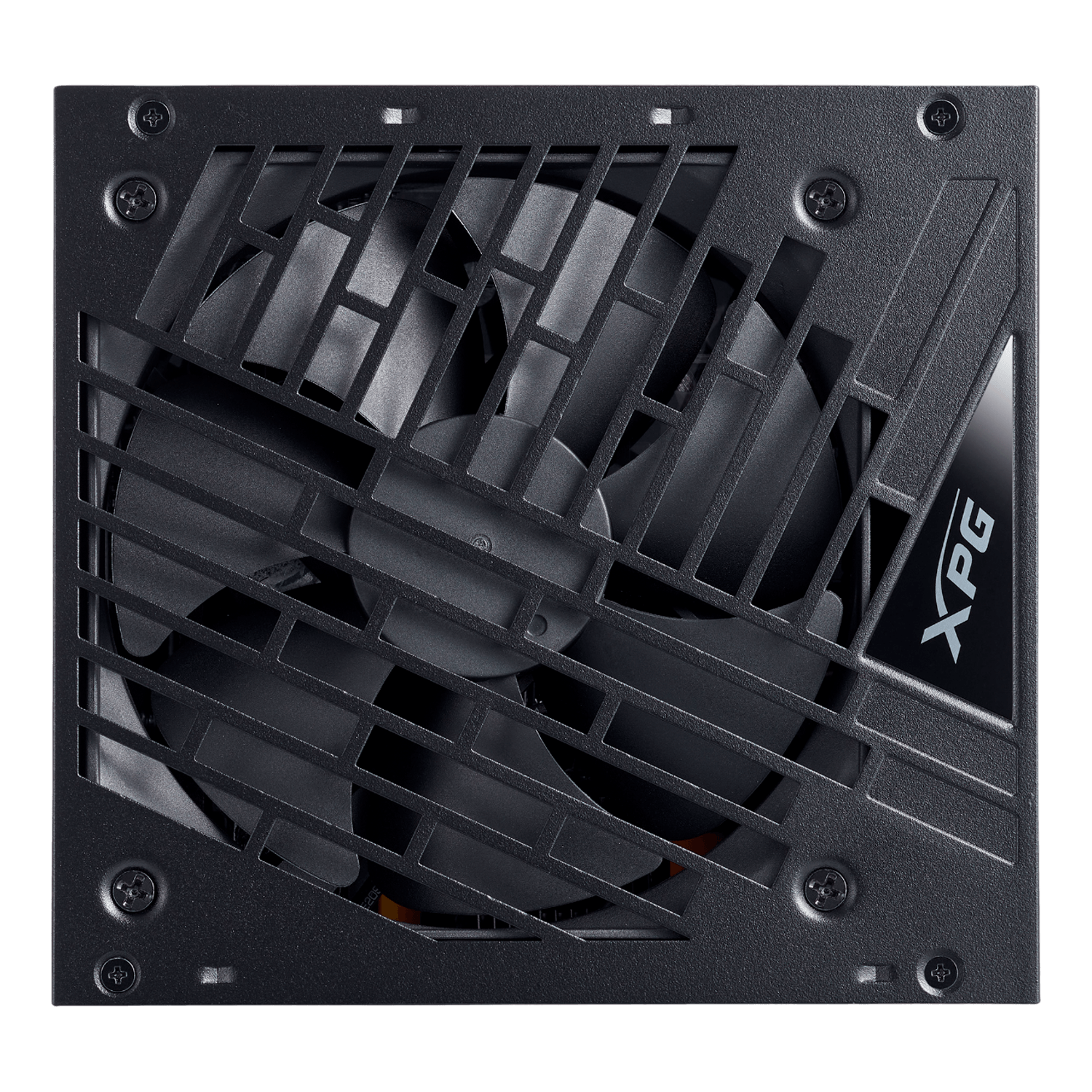

Fan Size 120mm FDB Fan
Fan Bearing FDB (Fluid Dynamic Bearing)
Fan Speed 2400 RPM
MTBF 100K hours at full load

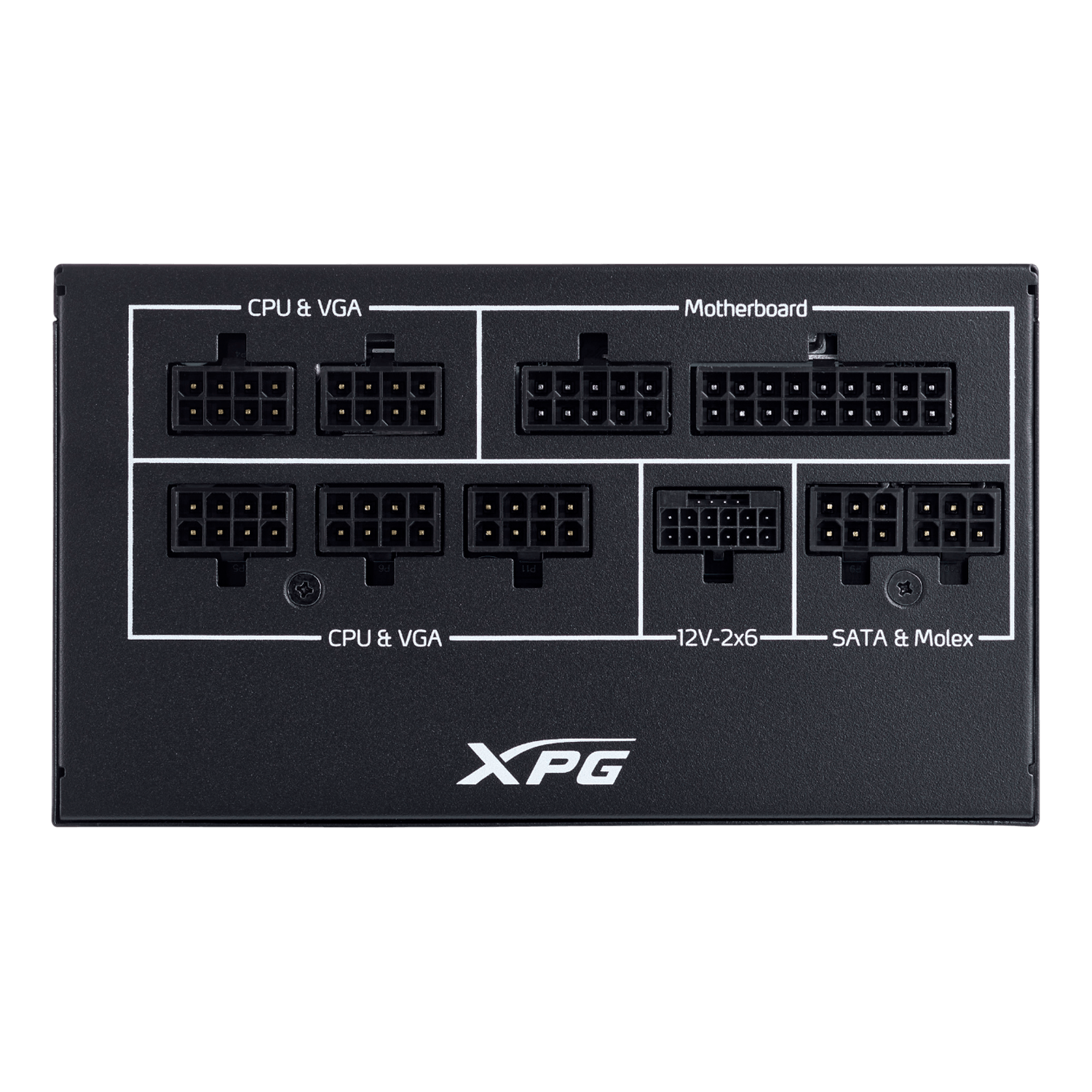

ATX 24 Pin Connector 1
EPS 8 Pin Connector 2
PCI-E 6+2 Pin Connector 750W: 3
Molex 4 Pin Connector 2
12V-2x6 (12+4) Connector (600W) 750W: 1
12V-2x6 (12+4) Connector (450W) 750W: 0
SATA Connector 6
Weight 750W:
Product + Cables: 1450g+1350g
with Package: 3.03kg
Warranty 7 years
