- Modern design with premium aluminum exterior
- Built-in six hot-swappable 2.5” drive bays with 6Gbps SAS/SATA HDD Backplane
- Vertical layout for stack effect cooling with built-in Air Penetrator fan
- Accommodates two more 2.5” drives internally for total eight drive capacity
- Supports 7.5” low profile expansion cards
Model No. | SST-CS01S-HS (Silver) | |

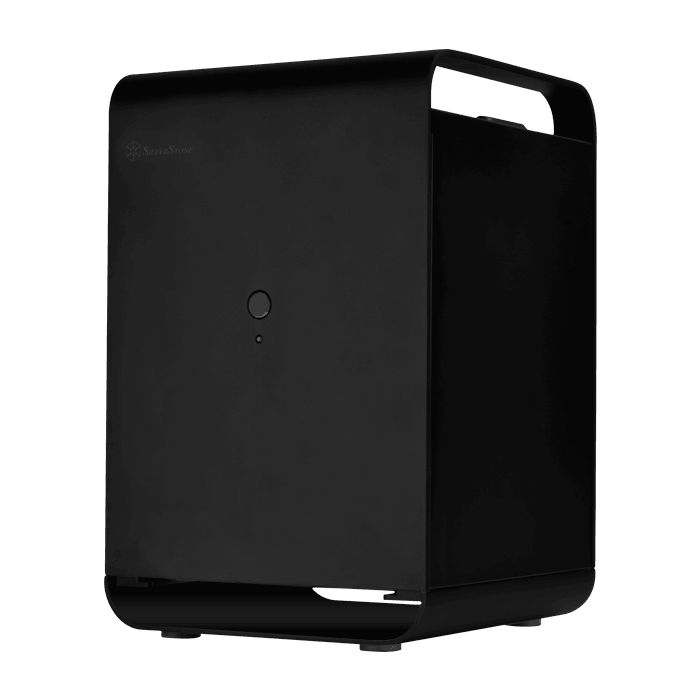

SST-CS01B-HS (Black) | ||
-- | ||
-- | ||
Material | Aluminum outer shell, steel body | |
Motherboard | Mini-ITX | |
Drive bay | External | 2.5” SAS/ SATA hot-swap x 6 |
(With 6Gbps SAS/SATA HDD Backplane)* | ||
Internal | 2.5” x 2 | |
Cooling system | Front | -- |
Rear | -- | |
Side | -- | |
Top | -- | |
Bottom | 120mm AP fan x 1 , 1200rpm, 19.7dBA | |
Internal | -- | |
Expansion slot | 1x low profile | |
Front I/O port | USB 3.0 x 2 | |
Power supply | SFX / SFX-L | |
Expansion card | 1 x low profile up to 7.5”, width restriction – 2.95” | |
Limitation of CPU cooler | 68mm | |
Limitation of PSU | 130mm (Up to SFX-L) | |
Net weight | 4.289kg | |
Dimension | 210.5mm (W) x 322 mm (H) x 210 mm (D), 14.2 liters |
