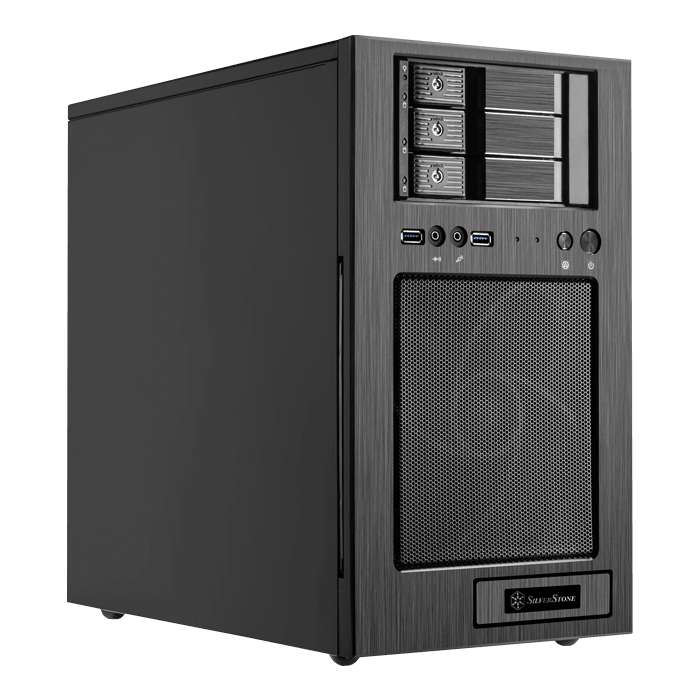

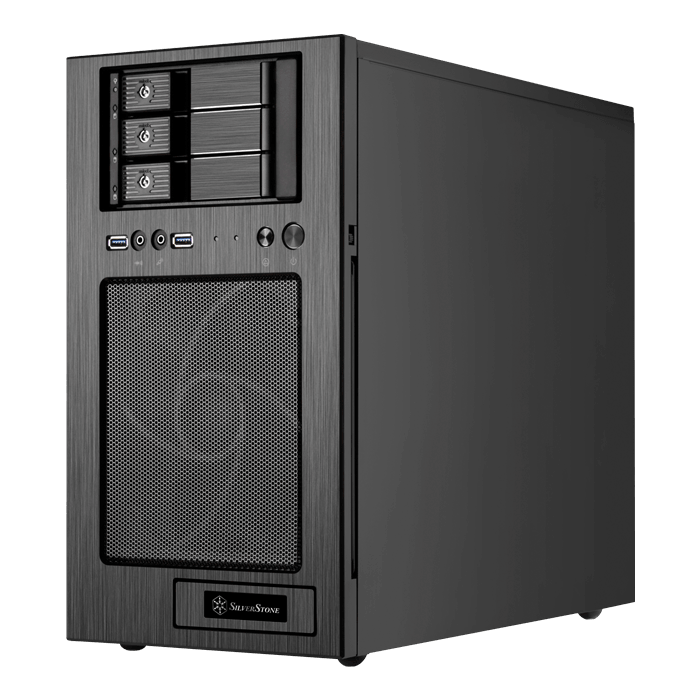

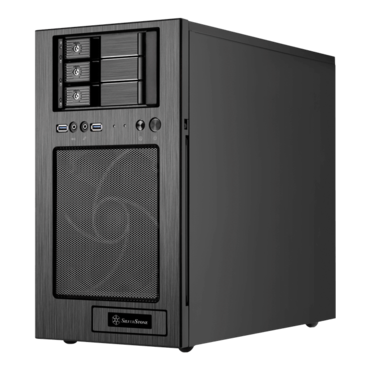

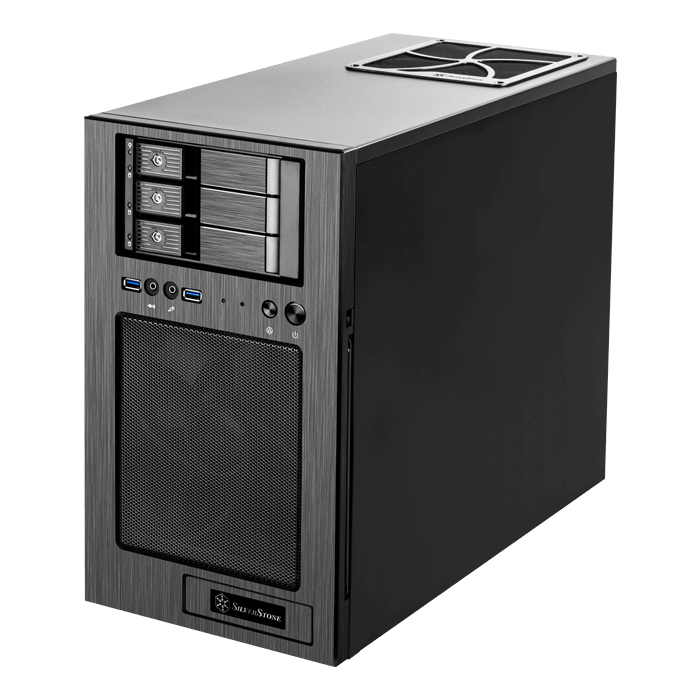

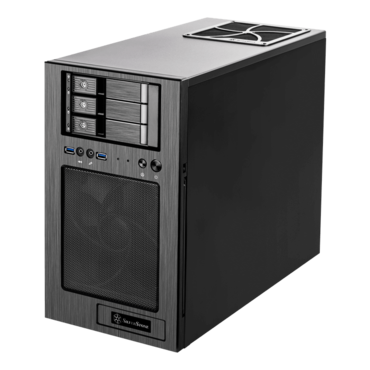

- Supports three 3.5" SAS / SATA hard drives and speed up to 12Gbit/s** with tray-less and screw-less design
- Supports one 2.5" hard drive and up to eight 3.5” hard drives
- Adjustable LED hard drive indicator and fan speed
- One 180mm Air Penetrator fan included for excellent system cooling

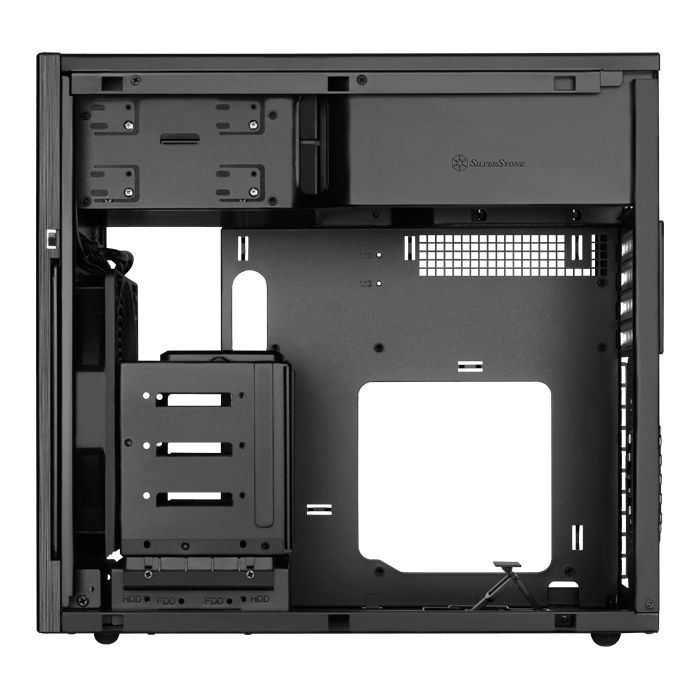

- Removable motherboard tray and top panel design
- Easily removable filters

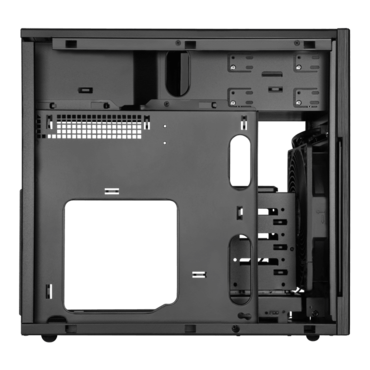

- Abundant cable management space behind motherboard tray
- Includes custom CPU cooler supporter
Model No. | SST-CS330B | |
Material | Aluminum front panel, steel body | |
Motherboard | Micro-ATX, Mini-DTX, Mini-ITX | |
Drive bay | External |
3.5" SAS/SATA x 3 3.5" x 1 or Internal 2.5" x 1 |
Internal | 3.5" x 4, 2.5" x 1 or external 3.5" x 1 | |
Cooling system | Front | 180mm x 1 (180mm x 1 AP181 fan included, 700/1200RPM 18/34dBA) |
Rear | 120mm x 1 (Option) | |
Side | -- | |
Top | -- | |
Bottom | -- | |
Internal | -- | |
Radiator support | Rear | 120mm |

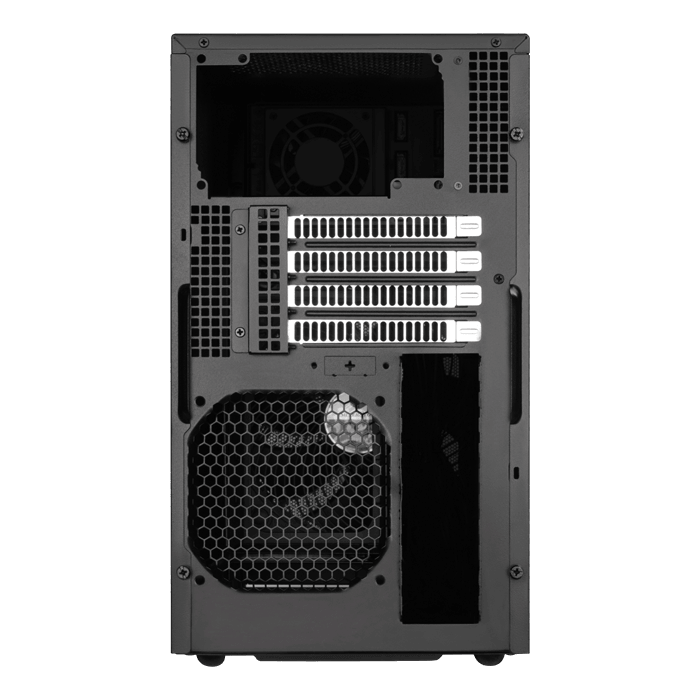

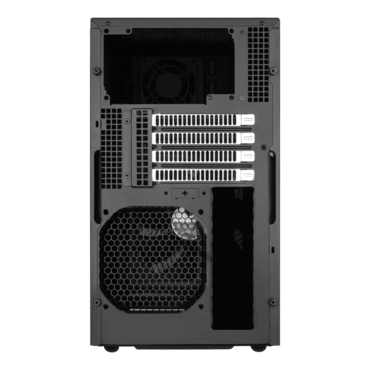

Expansion slot | 4 | |
Front I/O port |
USB 3.0 x 2 (compatible with USB 2.0) Audio x 1 MIC x 1 |
|
Power supply | Standard PS2(ATX) up to 160mm | |
Expansion card | Support graphics card up to 13.25" (336mm), width restriction -6.69" (169mm)* | |
Limitation of CPU cooler | 165mm | |
Limitation of PSU | 160mm | |
Net weight | 6.05 kg | |
Dimension |
210mm (W) x 374mm (H) x 385mm (D), 30.2 liters 8.27" (W) x 14.72" (H) x 15.16" (D), 30.2 liters |
|
Extra | Support Kensington lock | |
Hot Swap 3.5" HDD Storage | ||
Transfer rate | Up to 12 Gbit/s** (depends on HDD / SSD speed) | |
Host interface | 7pin SATA connector x 3 | |
Power connector | SATA 15pin connector x 2 | |
LED indicator |
Power ON: Blue Accessing: Purple blinking |
|
Drive tray security | Triangle metal key lock design | |
Switch button |
Fan speed: High / Low HDD LED: ON / OFF |
|
Remark | ||
*Please install into expansion slots 3 and 4 for interface card with extension bracket and length of 13.3" *Your system must have SAS controller if you want to use SAS HDD *Hard drive capacity and RAID support is dependent on SAS or SATA controller used **12Gbit/s Mini-SAS HD control card and cable required for 12Gb/s performance. (e.g. SilverStone ECS05 & CPS05) |
