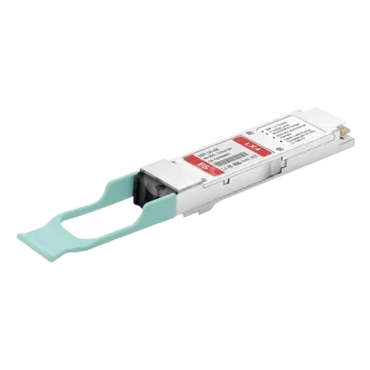

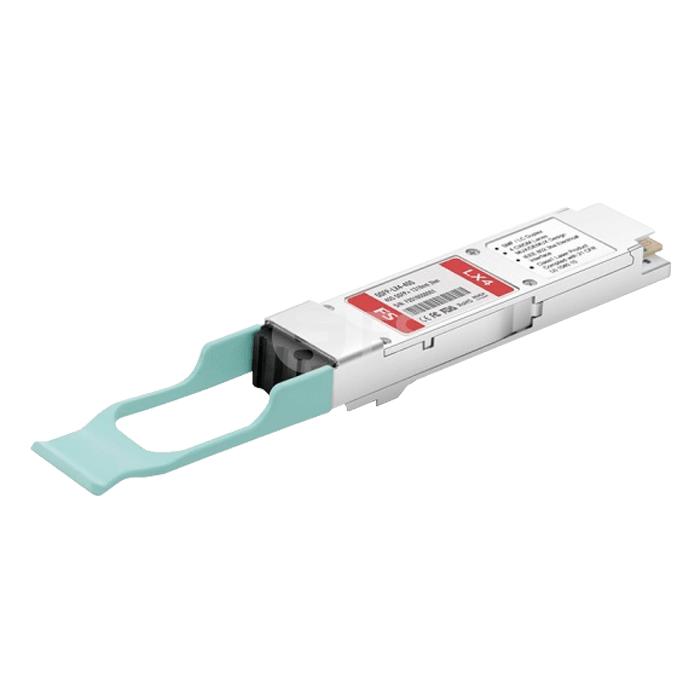

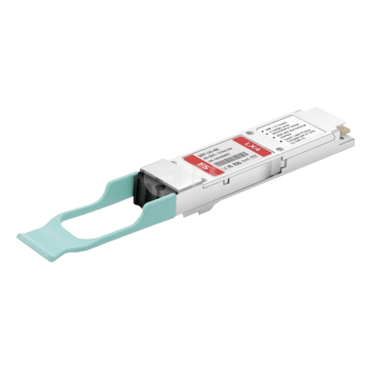

Cisco QSFP-40G-UNIV Compatible 40GBASE-UNIV QSFP+ 1310nm 2km DOM LC SMF/MMF Optical Transceiver Module
Quantity:
- SKU: 14452827
- Manufacturer: FS.com
- MPN: QSFP-40G-UNIV
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$356.21
Cisco QSFP-40G-UNIV Compatible 40GBASE-UNIV QSFP+ 1310nm 2km DOM LC SMF/MMF Optical Transceiver Module
The Cisco QSFP-40G-UNIV Compatible QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 150m over OM3 multimode fiber (MMF) and 2km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LM4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.
The Cisco QSFP-40G-UNIV Compatible QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 150m over OM3 multimode fiber (MMF) and 2km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LM4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.
| Cisco Compatible | QSFP-40G-UNIV |
| Form Factor | QSFP+ |
| Wavelength | 1310nm |
| Connector | LC Duplex |
| Transimitter Type | DFB CWDM |
| DDM/DOM | Supported |
| TX Power (MMF) | -7~4.3dBm |
| Receiver Sensitivity (MMF) | <-10dBm |
| Receiver Overload (MMF) | 4.3dBm |
| Powerbudget (MMF) | 3.5dB |
| Power Consumption | <3.5W |
| Transmit and Dispersion Penalty (MMF) | 4.7dB |
| Packaging Technology | BOX Packaging |
| EMC (Electro Magnetic Compatibility) | Supported |
| Modulation Format | NRZ |
| Application | 40G Ethernet over MMF and SMF, Data Center, Infiniband QDR and DDR |
| Vendor Name | FS |
| Max Data Rate | 41.2Gbps (4×10.3Gbps) |
| Max Cable Distance | 150m@OM3/2km@SMF |
| Cable Type | MMF/SMF |
| Receiver Type | PIN |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power (SMF) | -10~2.3dBm |
| Receiver Sensitivity (SMF) | <-13.7dBm |
| Receiver Overload (SMF) | 2.3dBm |
| Powerbudget (SMF) | 0.5dB |
| Extinction Ratio | >3.5dB |
| Transmit and Dispersion Penalty (SMF) | 2.6dB |
| Host FEC | Supported |
| Bit Error Ratio (BER) | 1.00E-12 |
| Protocols | 40G Ethernet, MSA Compliant |
| Warranty | 5 Years |
