READY TO SHIP
Composite and S-Video to VGA Video Converter
Quantity:
- SKU: 51958
- Manufacturer: STARTECH.COM
- MPN: VID2VGATV
- Availability: LOW STOCK
Starting At
$69.99

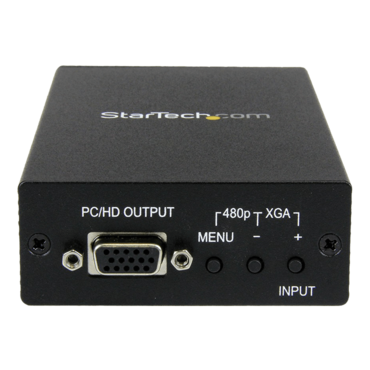

Composite and S-Video to VGA Video Converter
Convert between resolutions and video formats with StarTech.com s VID2VGATV, a composite/s-video/YCbCr/RGB component to VGA/HDTV scaler. The VID2VGATV automatically detects your source s input resolution and allows you to customize its output resolution and refresh rate through an easy to use on-screen-display menu. Great for home theatre peripherals like DVD players, the VID2VGATV lets you connect non-VGA/HDTV enabled equipment to VGA or HDTV display devices like CRT monitors, VGA projectors and plasma screen TVs.
| Warranty Information | Warranty | 2 Years |
|---|---|---|

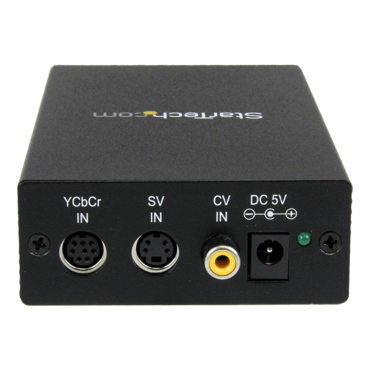

| Connector(s) | 1 - Connector A | Composite Video (1 x RCA) |
| S-Video (4 pin, Mini-DIN) | ||
| Component Video (3 x RCA) | ||
| 1 - Connector B | VGA (15 pin, High Density D-Sub) | |
| Environmental | Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Humidity | 20 - 90% (non-condensing) | |
| Hardware | Active or Passive Adapter | Active |
| AV Input | S-Video | |
| Composite | ||
| Component | ||
| AV Output | Component | |
| VGA | ||
| Audio | No | |
| Packaging Information | Package Length | 9.9 in [25.2 cm] |
| Package Width | 2.4 in [62.0 mm] | |
| Package Height | 5.4 in [13.8 cm] | |
| Shipping (Package) Weight | 31.4 oz [890.0 g] | |
| Performance | Supported Resolutions |
PC Output (RGBHV, progressive scan) 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024 HDTV (50/60Hz, YPbPr/RGBHV) 480p, 576p, 720p, 1080i |
| Signal Levels |
Input Video @ 1V p-p, 75 ohm Y @ 1 V p-p, 75 ohm Color @ 0.7V p-p, 75 ohm |
|
| Physical Characteristics | Color | Black |
| Product Length | 5.7 in [14.6 cm] | |
| Product Width | 3.0 in [77.0 mm] | |
| Product Height | 1.2 in [30.0 mm] | |
| Weight of Product | 8.5 oz [240.0 g] | |
| Power | Power Source | AC Adapter Included |
| Output Voltage | 5 DC | |
| Output Current | 2.6A | |
| Center Tip Polarity | Positive | |
| Power Consumption (In Watts) | 13 | |
| Special Notes / Requirements | Note | Multiple refresh rates supported on PC output - See product manual for full list |
| What's in the Box | 1 - Included in Package | Video to HDTV/VGA Scaler |
| Plastic Bracket | ||
| 3ft (1m) Composite RCA Cable | ||
| 3ft (1m) VGA to YPbPr M/M | ||
| 4ft (1.2m) S-Video cable | ||
| 4ft (1.2m) VGA cable M-M | ||
| YCbCr RCA to 8 pin DIN adapter | ||
| Universal Power Adapter (US/UK/EU/AUS) | ||
| User Manual |
