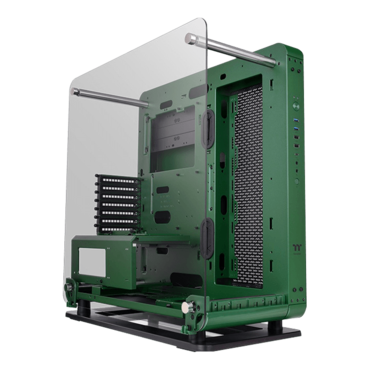

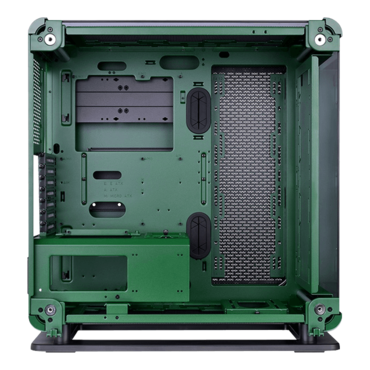

Core P6 TG, Tempered Glass, No PSU, ATX, Racing Green, Mid Tower Case
- SKU: 14911295
- Manufacturer: THERMALTAKE
- MPN: CA-1V2-00MCWN-00
- Availability: LOW STOCK
The Core P6 TG Racing Green Mid Tower Case is a special color edition to the Core P6 TG and is a smaller version of the Core P8 TG Full Tower Case. Just like the Core P8 TG, the Core P6 TG Racing Green can be transformed into a closed or open styled form effortlessly and is the newest member of the Thermaltake iconic open-frame Core Series. The Core P6 TG Racing Green features a fully modular design, Rotational PCI-E Slots, a PSU cover, an extra GPU bracket, support for 120mm and 140mm fans, support for 360mm and 280mm radiators, and removable filters. With all the significant features, the potential for the hardware expansion and cooling solution is remarkable for the Core P6 TG Racing Green. Users will enjoy the process of building in the Core P6 TG Racing Green Mid Tower Case and find it truly unique and innovative.
| P/N | CA-1V2-00MCWN-00 |
| SERIES | Core |
| MODEL | Core P6 TG Racing Green |
| CASE TYPE | Mid Tower |
| DIMENSION (H X W X D) |
565 x 255 x 530mm (22.2 x 10 x 20.9 inch) |
| NET WEIGHT | 17.84 kg / 39.33 lbs. |
| SIDE PANEL | 4mm Tempered Glass x 3 |
| COLOR | Racing Green |
| MATERIAL | SPCC |
| COOLING SYSTEM | - |
|
DRIVE BAYS -ACCESSIBLE -HIDDEN |
4 x 3.5” or 8 x 2.5” |
| EXPANSION SLOTS | 7 (Rotatable Patented Design) |
| MOtdERBOARDS |
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5”(CEB) |
| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT |
Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Rear: 1 x 120mm Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm or 1 x 120mm 2 x 140mm, 1 x 140mm |
| RADIATOR SUPPORT |
Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Bottom: 1 x 240mm, 1 x 120mm |
| CLEARANCE |
CPU cooler height limitation: 180mm VGA lengtd limitation: 300mm (Witd Reservoir) 400mm (Witdout Reservoir) 430mm (Witd Radiator) 458mm (Witdout Radiator) PSU lengtd limitation: 200mm |
