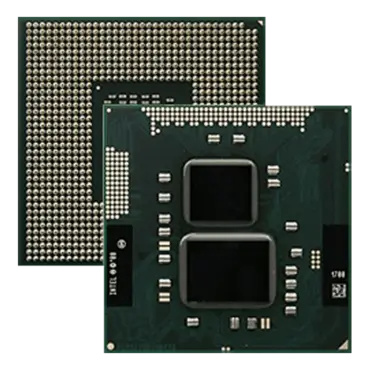

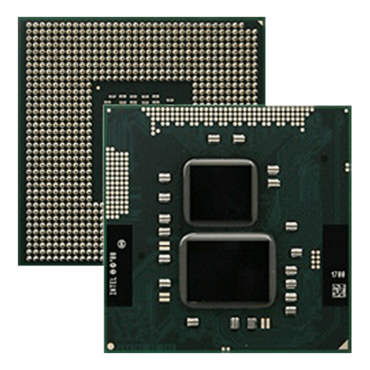

Core™ i5-560M 2-Core 2.6 - 3.2GHz Turbo, PGA988, 35W TDP, Retail Processor
An integral part of Intel's new family of processors, the new Intel® Core™ i5 mobile processor, puts smart performance well within your reach. Delivering solid performance for everyday applications, PCs powered by Intel Core i5 processors have the ability to boost speed as needed for demanding tasks, while extending battery life so you can remain unwired longer.
Multi-core performance
The Intel Core i5 mobile processor automatically speeds up your processor with Intel® Turbo Boost Technology while allowing you to work on two tasks at the same time with Intel® Hyper-Threading Technology (Intel® HT
Technology) so that each core of your mobile processor can work on two tasks at the same time.
- Intel Turbo Boost Technology automatically speeds up your processor when your PC needs extra performance.
- Intel Hyper-Threading Technology enables 4-way multitask processing allows each core of your processor to work on two tasks at the same time.
- Intel® HD Graphics provides superb visual performance for sharper images, richer color, and life-like video and audio. Available on select models of the all new 2010 Intel® Core™ processor family.
- New 32nm process technology enables maximum performance and energy efficiency.
- Integrated Memory Controller offering stunning memory read/write performance through efficient prefetching algorithms, lower latency, and higher memory bandwidth.
- Energy-efficient performance enables maximum performance while energy efficiency allows systems to run quieter.
Essentials | |
Processor Number | i5-560M |
# of Cores | 2 |
# of Threads | 4 |
Clock Speed | 2.66 GHz |
Max Turbo Frequency | 3.2 GHz |
Intel® Smart Cache | 3 MB |
Bus/Core Ratio | 20 |
DMI | 2.5 GT/s |
Instruction Set | 64-bit |
Supplemental SKU | No |
Lithography | 32 nm |
Max TDP | 35 W |
Memory Specifications | |
Max Memory Size (dependent on memory type) | 8 GB |
Memory Types | DDR3-800/1066 |
# of Memory Channels | 2 |
Max Memory Bandwidth | 17.1 GB/s |
Physical Address Extensions | 36-bit |
ECC Memory Supported | No |
Graphics Specifications | |
Integrated Graphics |
Yes |
Intel® HD Graphics | Yes |
Intel® HD Graphics with Dynamic Frequency | Yes |
Graphics Base Frequency | 500 MHz |
Graphics Max Dynamic Frequency | 766 MHz |
Intel® Flexible Display Interface (Intel® FDI) | Yes |
Intel® Clear Video Technology | Yes |
Intel® Clear Video HD Technology | Yes |
Dual Display Capable | Yes |
Macrovision* License Required | No |
