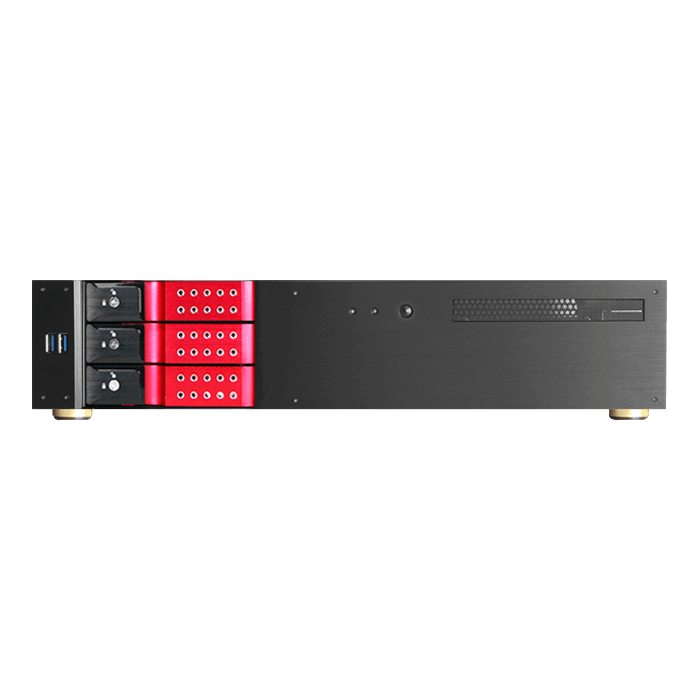

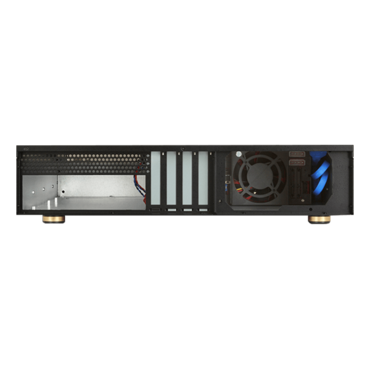

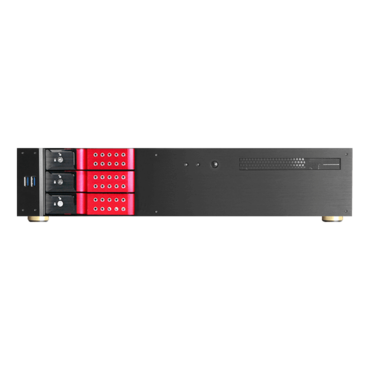

D-230HN-DT-RED, Red HDD Handle, 3 x 3.5" Hotswap Bay, No PSU, microATX, Black, 2U Desktop Chassis

Quantity:
  • SKU: 12459545
  • Manufacturer: ISTARUSA
  • MPN: D-230HN-DT-RED
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$250.69
Quantity:
D-230HN-DT-RED, Red HDD Handle, 3 x 3.5" Hotswap Bay, No PSU, microATX, Black, 2U Desktop Chassis

The D-230HN-DT-RED series are designed with elegance and functionality fit for Home Theater Personal Computer (HTPC). With the advancement of server racks for home, these models are ideal for both rackmount and desktop orientation. With storage capacity up to 8 TB per each bay, the tray-less drive cage maximizes data storage and backup functionality at the same time. These series are ideal platform for HTPC build using popular AMD and Intel processors.

D-230HN-DT-RED 2U Compact 3x 3.5" Bay Trayless Hotswap microATX Desktop Chassis

  • 3 trayless and hotswappable 3.5" bays for HDD quick swap
  • Rackmount or desktop convertible
  • Supports standard ATX power supplies
  • Slim optical drive bay (12.7mm height) available
  • Sleek aluminum front w/ various color options for HDD handles
  • USB 3.0 in front for easy access
  • Supports 6.0 Gb/s hard drives
Model Number D-230HN-DT
RoHS Compliance Yes
Form factor 2 U
Standard Drive Bays 2.5" Drive (internal): 1
3.5" Drive (internal): 1
Hotswap 3.5": 3
Slim 5.25" Optical: 1
Hotswap HDD Type: 3.5" SAS I/II & SATA I/II/III
Indicators Power, HDD
Switches Power
Expansion Slots 4 (Low profile)
Material of Front Bezel Aluminum
Material of Handle Aluminum
Material of Main Chassis SGCC 0.8mm
Color of Main Chassis Black
Front Connector 2x USB 3.0
Motherboard Size 9.6 x 9.6 (microATX, mini-ITX)
Cooling Fan 1x80mm
Ordering Information
(Part Number)
Black HDD Handle:D-230HN-DT
Blue HDD Handle:D-230HN-DT-BLUE
Red HDD Handle:D-230HN-DT-RED
Silver HDD Handle:D-230HN-DT-SILVER
Dimensions (WxHxD) 18.98" x 3.48" x 14.95"
482.1 mm x 88.4 mm x 379.7 mm
Notes - fits standard ATX power supply with length no more than 140mm.
