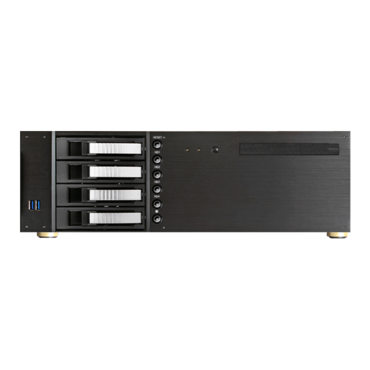

D-340HB-T-SILVER, Silver HDD Handle, 1x Slim 5.25", 3x 3.5", 4x 3.5" Hotswap Bays, No PSU, ATX, Black/Silver, 3U Chassis
Quantity:
- SKU: 9483586
- Manufacturer: ISTARUSA
- MPN: D-340HB-T-SILVER
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$312.79

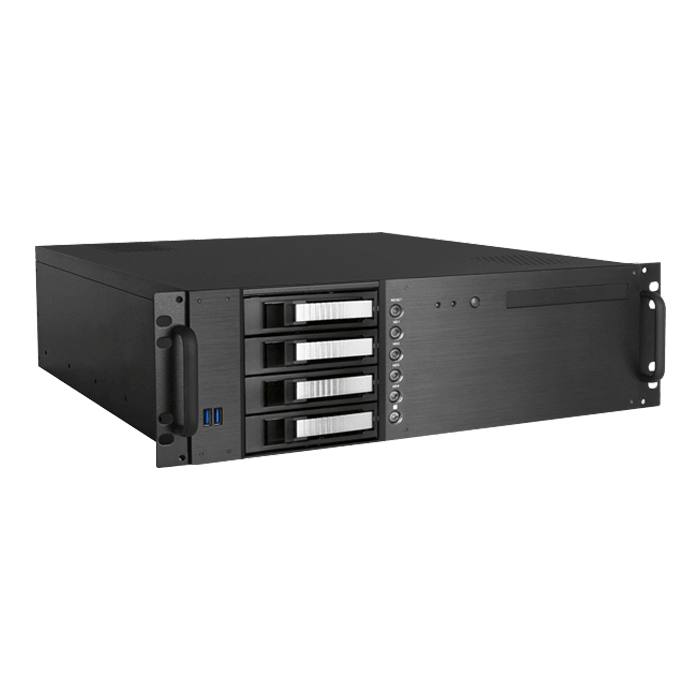

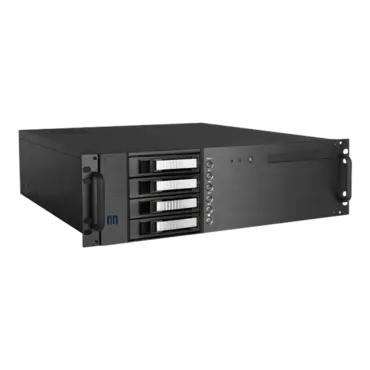

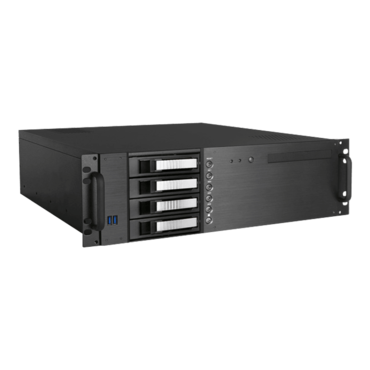

D-340HB-T-SILVER 3U Compact 4x3.5" Bay Hotswap ATX Chassis

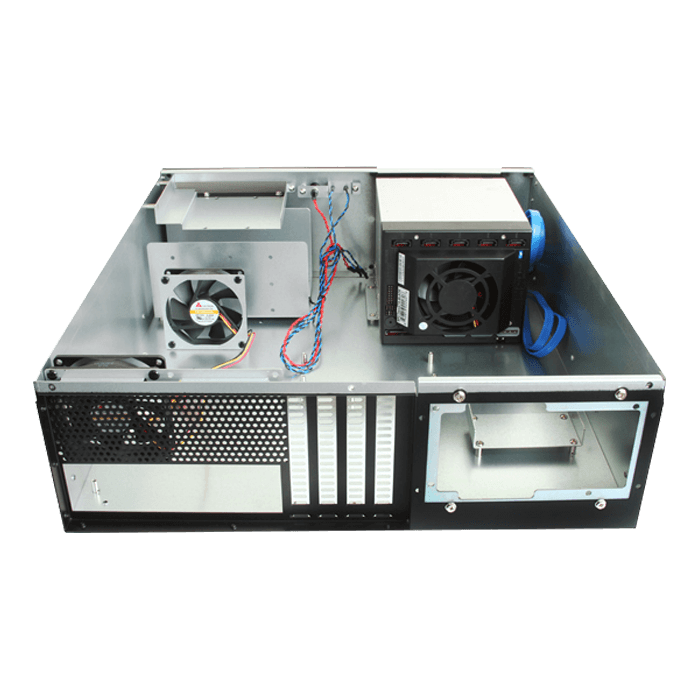

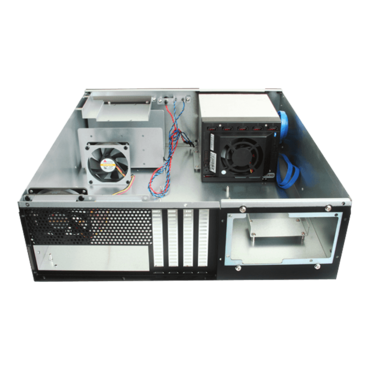

- 4 hotswappable 3.5" bays for HDD quick swap
- Compatible with 2.5" HDDs/SSDs
- Supports standard ATX power supplies
- Slim optical drive bay (12.7mm height) available

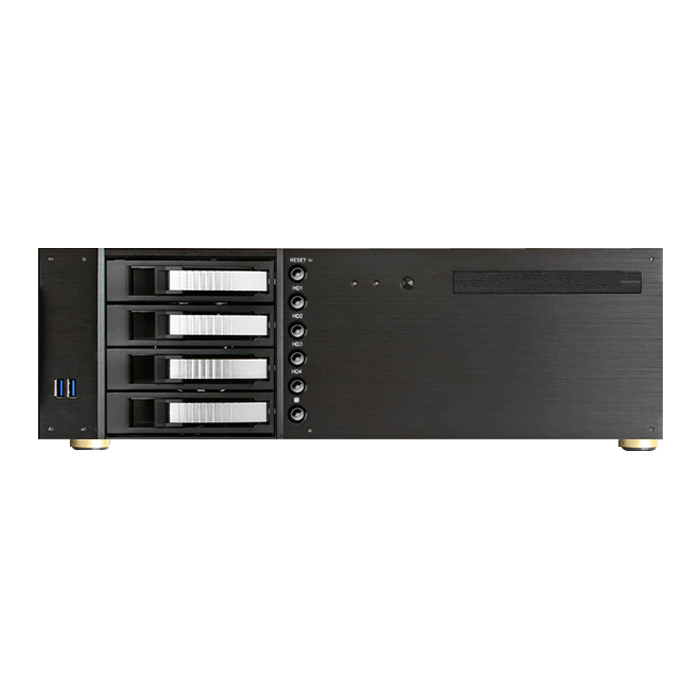

- USB 3.0 in front for easy access
- Sleek aluminum front w/ various color options for HDD handles
- Rackmount or desktop convertible
- Supports 6.0 Gb/s hard drives
| Model Number | D-340HB-T |
| RoHS Compliance | Yes |
| Form factor | 3 U |
| Standard Drive Bays | 3.5" Drive (internal): 3
Hotswap 3.5": 4 Slim 5.25" Optical: 1 |
| Indicators | Power, HDD |
| Switches | Power |

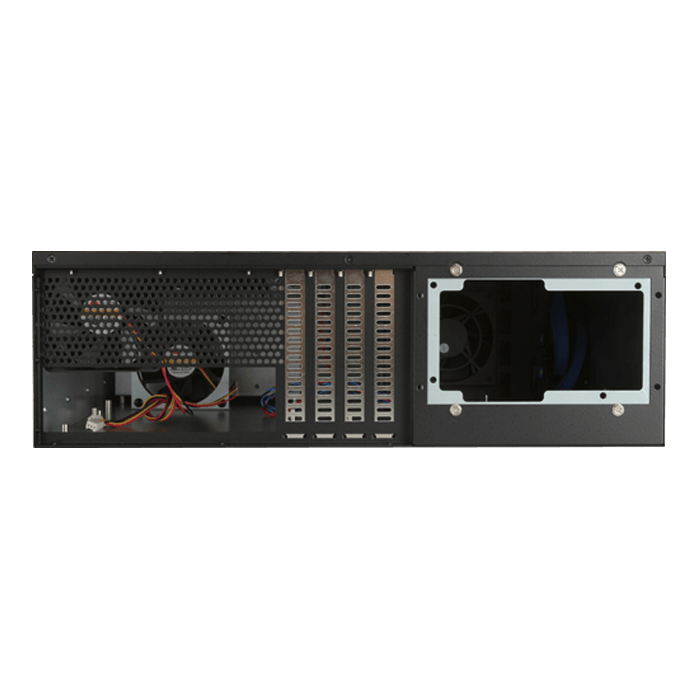

| Expansion Slots | 4 |
| Material of Front Bezel | Aluminum |
| Material of Handle | Aluminum |
| Material of Main Chassis | SGCC 0.8mm |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 3.0 |
| Motherboard Size | 12 x 9.6 (ATX, microATX) |
| Cooling Fan | 2x80mm |
| Optional Fan: | 80mm x1 |
| Ordering Information
(Part Number) |
Black HDD Handle:D-340HB-T
Blue HDD Handle:D-340HB-T-BLUE Red HDD Handle:D-340HB-T-RED Silver HDD Handle:D-340HB-T-SILVER |
| Dimensions (WxHxD) | 18.98" x 5.22" x 20.04"
482.1 mm x 132.6 mm x 509.0 mm |
| Notes | - the first three expansion slots on an ATX motherboard cannot be used if using an ATX MB in this chassis. |
