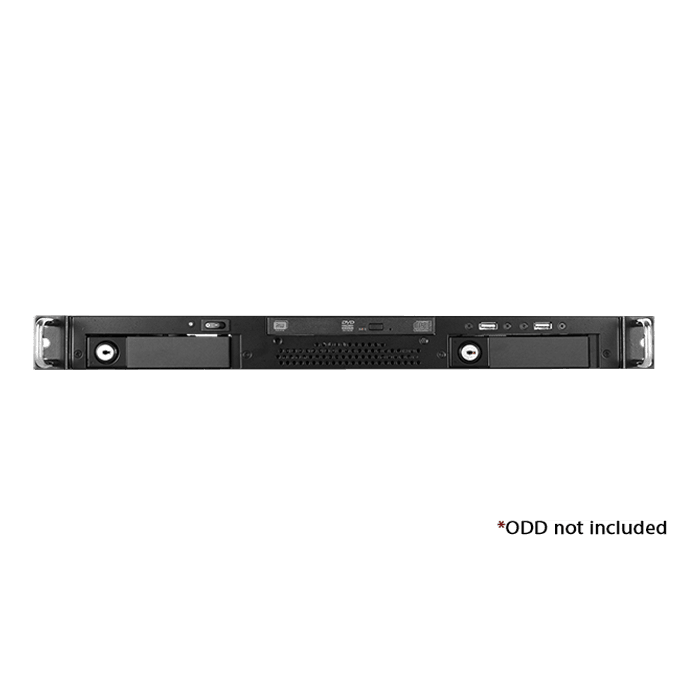

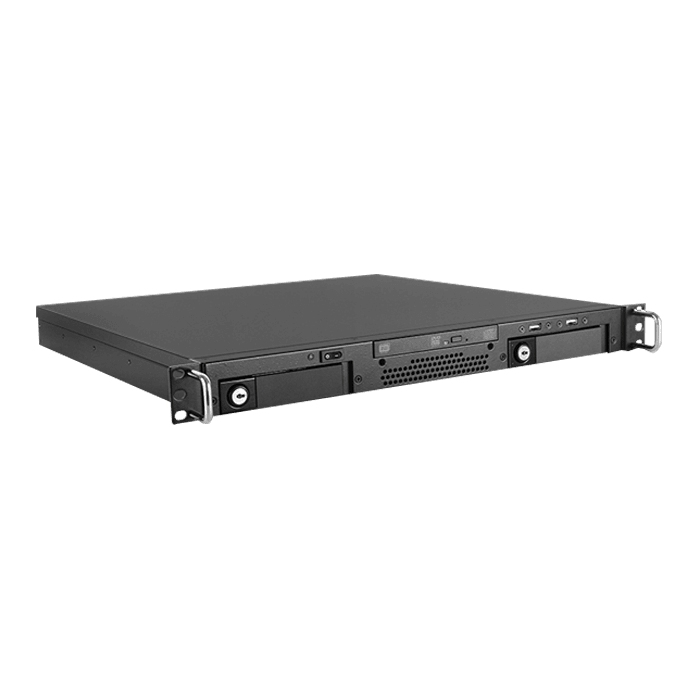

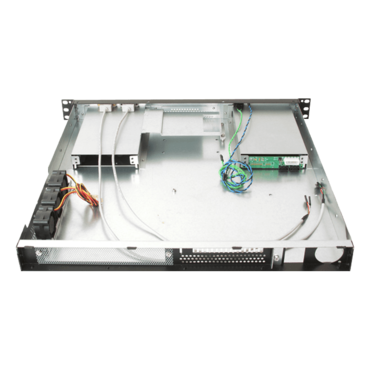

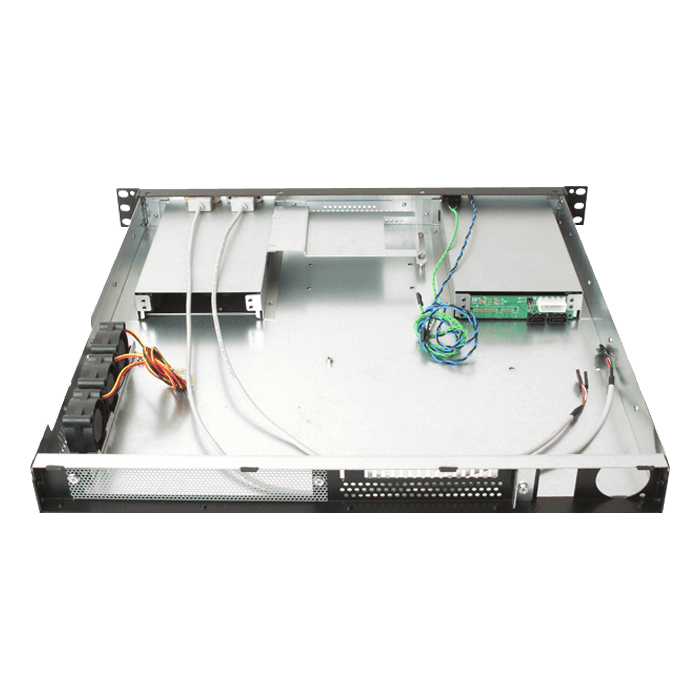

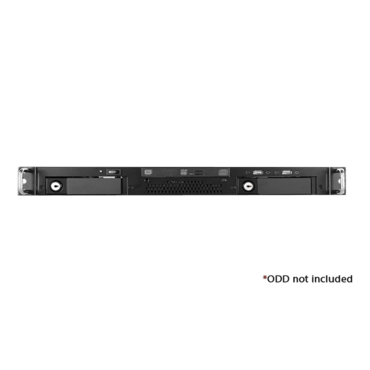

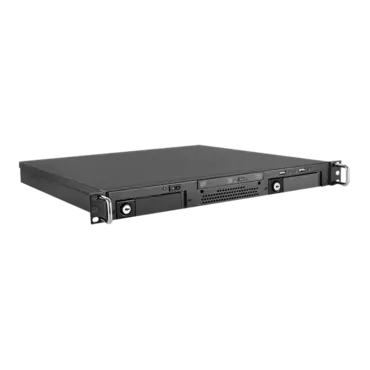

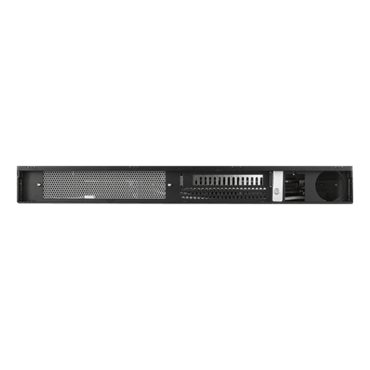

D-A120T-ITX, 1x 3.5" internal, 2x 3.5" Hotswap Bays, No PSU, Mini-ITX, Black, 1U Chassis
The D-A120T-ITX and D-A380T-MATX series are the same family designed with elegance and functionality fit for Home Theater Personal Computer (HTPC). With the advancement of Tool-Less server racks for home, these models are ideal for changing HDD without any tool, just need your hand. With storage capacity up to 4 TB per each bay, the drive cage has tray supporting both 3.5" & 2.5" HDD mounting and maximizes data storage and backup functionality at the same time. These series are ideal platform for HTPC build using popular AMD and Intel processors.
D-A120T-ITX 1U 2x 3.5" Bay Tool-less Hot swap ITX Chassis
- 2xTool-Less Hotswap 3.5" Drive Bay. Compatible with 2.5" SSD/HDD (screws needed)
- 1x Internal 3.5" Bay
- Slim Optical Drive Bay (12.7mm height) Available
- Front Access USB2.0X2
- 40mm x3 Cooling Fan Inside
- Power LED and Switch
Model Number | D-A120T-ITX |
RoHS Compliance | Yes |
Form factor | 1 U |
Standard Drive Bays | 3.5" Drive (internal): 1
Hotswap 3.5": 2 Slim 5.25" Optical: 1 |
Indicators | Power |
Switches | Power |
Supported PSU Type | 1U Flex |
Expansion Slots | 1 |
Material of Handle | Aluminum |
Material of Main Chassis | SGCC 1.0mm |
Color of Main Chassis | Black |
Front Connector | 2x USB 2.0 |
Motherboard Size | 6.7 x 6.7 (mini-ITX) |
Cooling Fan | 3x40mm |
Dimensions (WxHxD) | 18.98" x 1.75" x 18.25"
482.1 mm x 44.4 mm x 463.5 mm |
Notes | - standard I/O shield will NOT fit any 1U chassis. |
