D Storm D-200SEA-RD-75S2UPD8, Red Bezel, 2x 5.25", 2x 3.5" Drive Bays, 750W Rdt PSU, ATX, Black, 2U Chassis
The 2U compact industrial rackmount chassis D Storm D-200SEA-RD-75S2UPD8 . The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200SEA-RD-75S2UPD8 support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution, and also the 750W redundant power supply ensures total up time of mission critical server applications.
The 2U compact industrial rackmount chassis D Storm D-200SEA-RD-75S2UPD8 . The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200SEA-RD-75S2UPD8 support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution, and also the 750W redundant power supply ensures total up time of mission critical server applications.

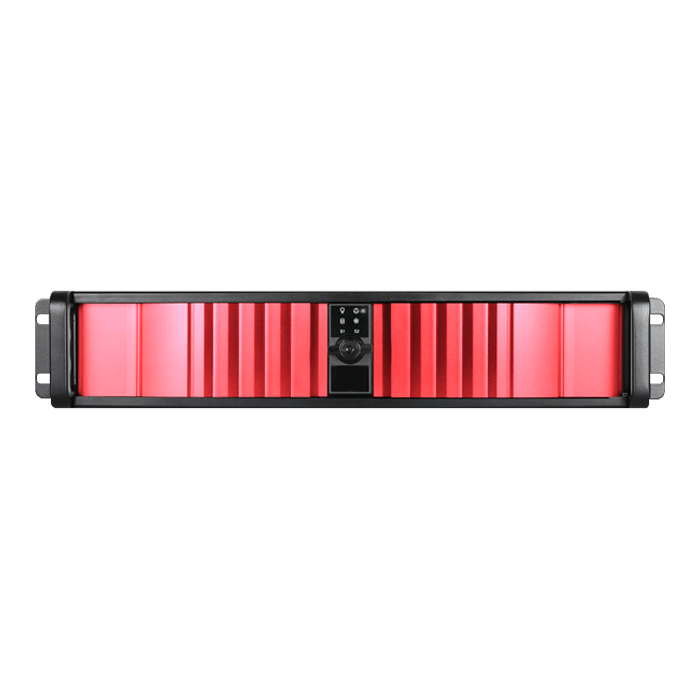

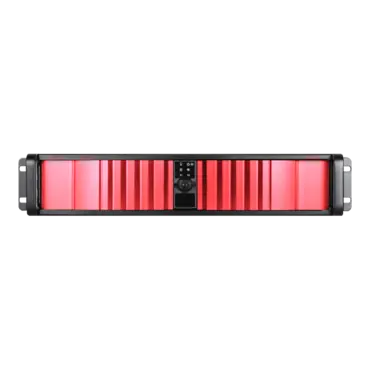

D-200SEA-RD-75S2UPD8 2U Compact Stylish Rackmount Chassis with RED SEA Bezel and 750W Redundant Power Supply
- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
- Front Access USB2.0 x2
- 80mm x1 cooling fan
- Power and HDD LED
- Power and Alarm Reset Switch
- Optional Aluminum Chassis

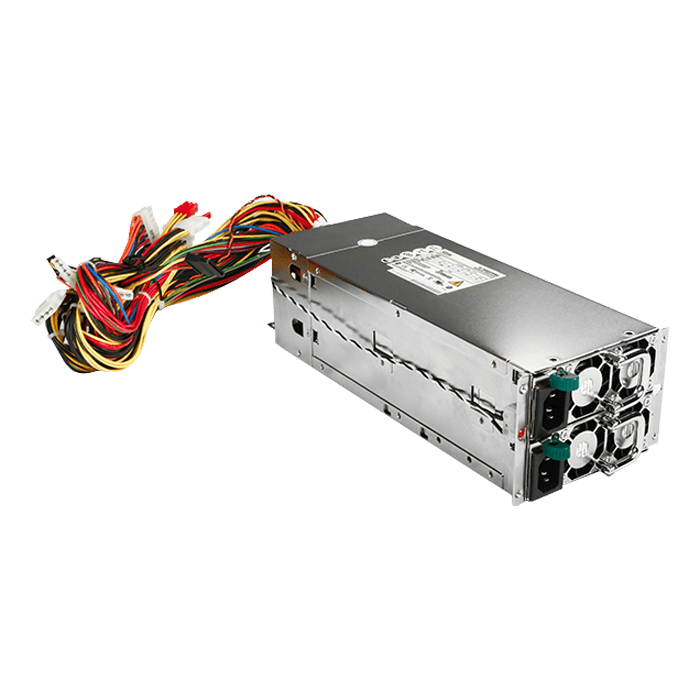

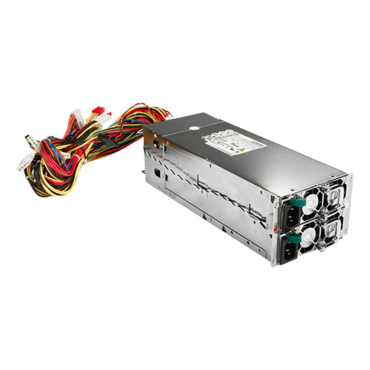

- 750W redundant power supply
Model Number | D-200SEA-RD-75S2UPD8 |
RoHS Compliance | Yes |
Form factor | 2 U |
Standard Drive Bays | 3.5" Drives: 2
5.25" Drives: 2 |
Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
Switches | Power, Reset |
Supported PSU Type | 2U |
Expansion Slots | 3 |
Security | Front Bezel Key Lock |
Material of Front Bezel | Aluminum alloy |
Material of Handle | SECC Zinc-Coated Steel |
Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
Color of Front Bezel | Red |
Color of Main Chassis | Black |
Front Connector | 2x USB 2.0 |
Motherboard Size | 12 x 9.6 (ATX, microATX, mini-ITX) |
Cooling Fan | 1x80mm |
Optional Fan: | 60mm x3 (bracket DD-FANGUARD-6 required) |
Dimensions (WxHxD) | 19.00" x 3.50" x 20.80"
482.6 mm x 88.9 mm x 528.3 mm |
Notes | - low profile backplate option, P/N: DD-200-LP-PCI.
- cross bar option for redundant power supplies, P/N: DD-200-R2U-BAR. |
