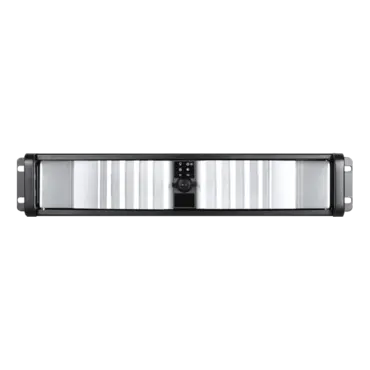

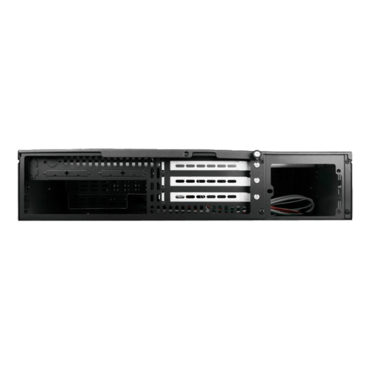

D Storm D-200SEA-SL-HDD2535, Silver Bezel, 2x 5.25", 2x 3.5" Drive Bays, No PSU, ATX, Black, 2U Chassis
Quantity:
- SKU: 13192830
- Manufacturer: ISTARUSA
- MPN: D-200SEA-SL-HDD2535
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$185.15
D Storm D-200SEA-SL-HDD2535, Silver Bezel, 2x 5.25", 2x 3.5" Drive Bays, No PSU, ATX, Black, 2U Chassis

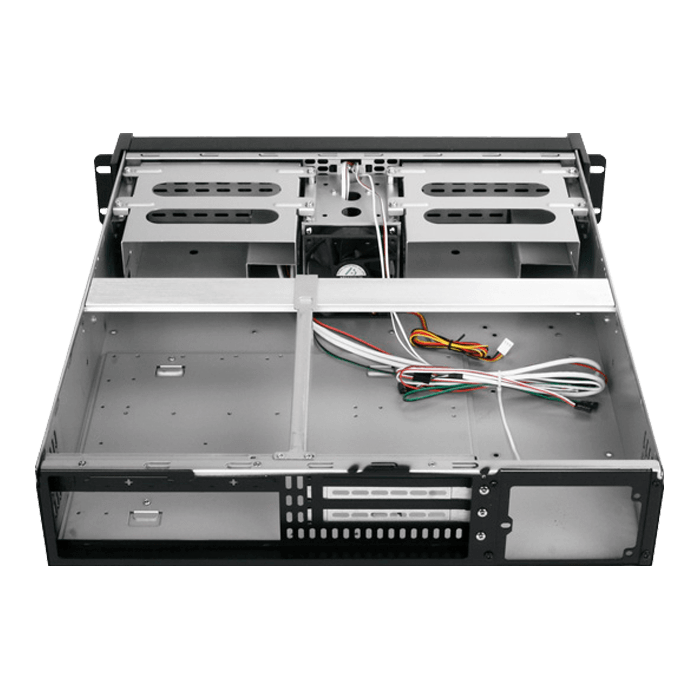

The 2U compact industrial rackmount chassis D Storm D-200SEA-SL-HDD2535SI. The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200SEA-SL-HDD2535SI support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution, also with Internal 2.5" to 3.5" HDD/SSD Converter.
The 2U compact industrial rackmount chassis D Storm D-200SEA-SL-HDD2535SI. The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200SEA-SL-HDD2535SI support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution, also with Internal 2.5" to 3.5" HDD/SSD Converter.
| Model Number | D-200SEA-SL-HDD2535 |
| RoHS Compliance | Yes |
| Form factor | 2 U |
| Standard Drive Bays | 3.5" Drives: 2
5.25" Drives: 2 |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | 2U |
| Expansion Slots | 3 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
| Color of Front Bezel | Silver |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Motherboard Size | 12 x 9.6 (ATX, microATX, mini-ITX) |
| Cooling Fan | 1x80mm |
| Optional Fan: | 60mm x3 (bracket DD-FANGUARD-6 required) |
| Dimensions (WxHxD) | 19.00" x 3.50" x 20.80"
482.6 mm x 88.9 mm x 528.3 mm |
| Notes | - low profile backplate option, P/N: DD-200-LP-PCI.
- cross bar option for redundant power supplies, P/N: DD-200-R2U-BAR. |
