D Storm D-200SEA-SL-RAIL24, Silver Bezel, 2x 5.25", 2x 3.5" Drive Bays, w/ 20" Sliding Rail Kit, No PSU, ATX, Black, 2U Chassis
The 2U compact industrial rackmount chassis D Storm D-200SEA-SL-RAIL24 . The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200SEA-SL-RAIL24 support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.
The 2U compact industrial rackmount chassis D Storm D-200SEA-SL-RAIL24 . The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200SEA-SL-RAIL24 support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.

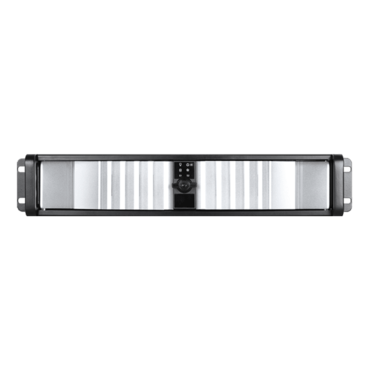

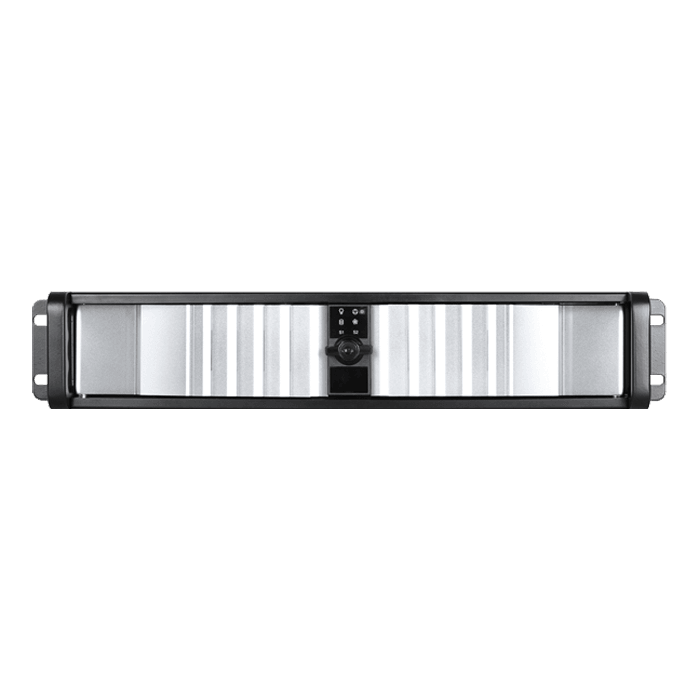

D-200SEA-SL-RAIL24 2U Compact Stylish Rackmount Chassis with silver SEA Bezel and 20" Sliding Rail Kit
- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
- Front Access USB2.0 x2
- 80mm x1 cooling fan
- Power and HDD LED
- Power and Alarm Reset Switch
- Optional Aluminum Chassis

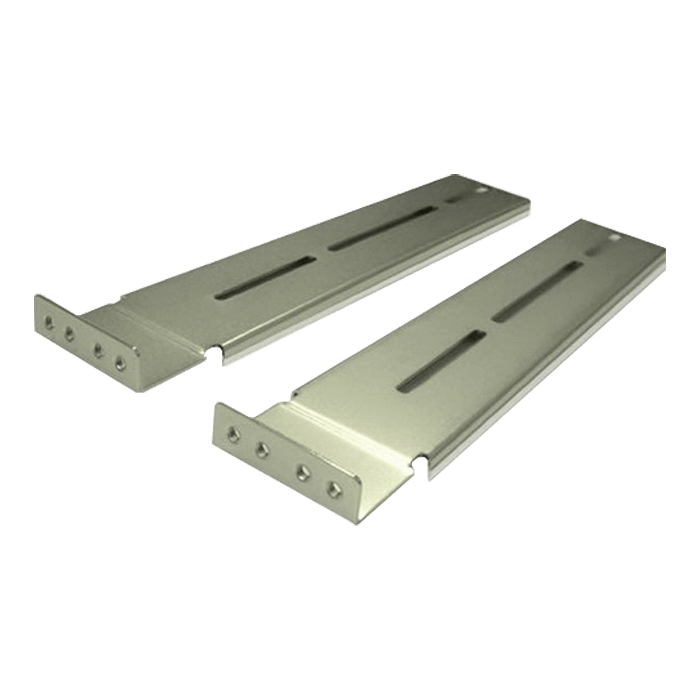

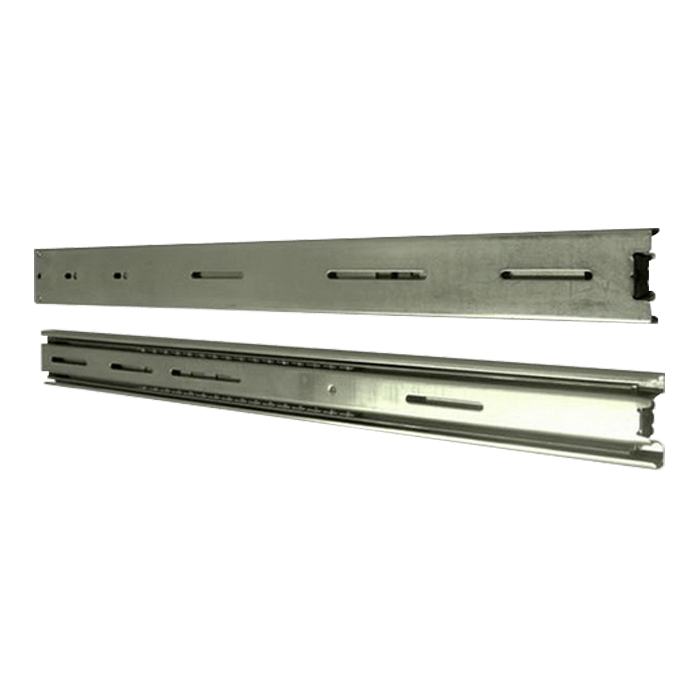

- With 20" Sliding Rail Kit
Model Number | D-200SEA-SL-RAIL24 |
RoHS Compliance | Yes |
Form factor | 2 U |
Standard Drive Bays | 3.5" Drives: 2
5.25" Drives: 2 |
Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
Switches | Power, Reset |
Supported PSU Type | 2U |
Expansion Slots | 3 |
Security | Front Bezel Key Lock |
Material of Front Bezel | Aluminum alloy |
Material of Handle | SECC Zinc-Coated Steel |
Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
Color of Front Bezel | Silver |
Color of Main Chassis | Black |
Front Connector | 2x USB 2.0 |
Motherboard Size | 12 x 9.6 (ATX, microATX, mini-ITX) |
Cooling Fan | 1x80mm |
Optional Fan: | 60mm x3 (bracket DD-FANGUARD-6 required) |
Dimensions (WxHxD) | 19.00" x 3.50" x 20.80"
482.6 mm x 88.9 mm x 528.3 mm |
Notes | - low profile backplate option, P/N: DD-200-LP-PCI.
- cross bar option for redundant power supplies, P/N: DD-200-R2U-BAR. |
