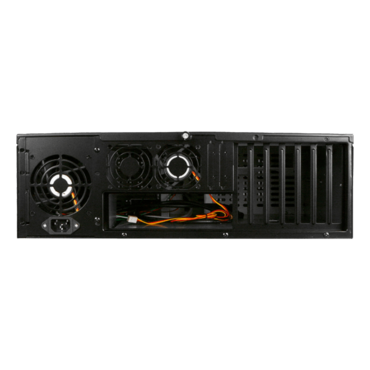

D Storm D-300-FS-BLUE, Blue Bezel, 2x 5.25", 6x 3.5" Drive Bays, No PSU, ATX, Black/Blue, 3U Chassis
Quantity:
- SKU: 7240123
- Manufacturer: ISTARUSA
- MPN: D-300-FS-BLUE
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$233.45
D Storm D-300-FS-BLUE, Blue Bezel, 2x 5.25", 6x 3.5" Drive Bays, No PSU, ATX, Black/Blue, 3U Chassis
D-300-FS-BLUE 3U Compact Stylish Rackmount Chassis Front-mounted ATX Power Supply

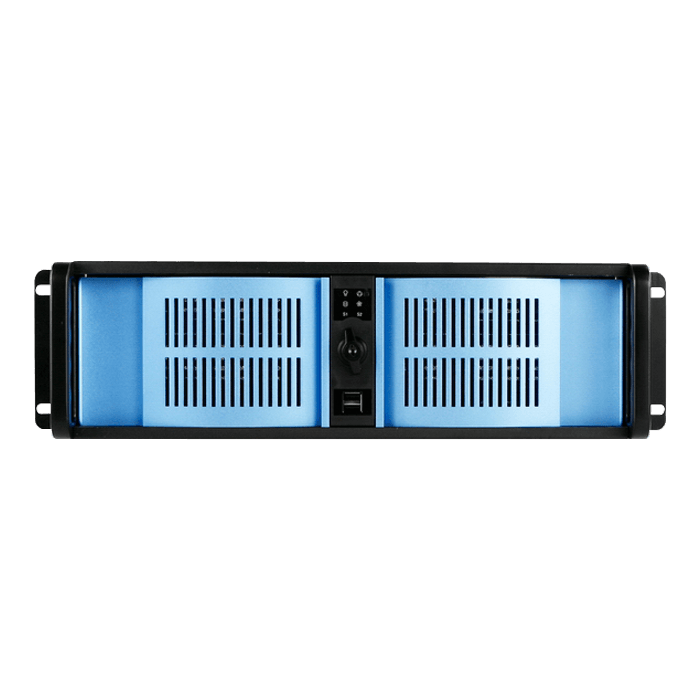

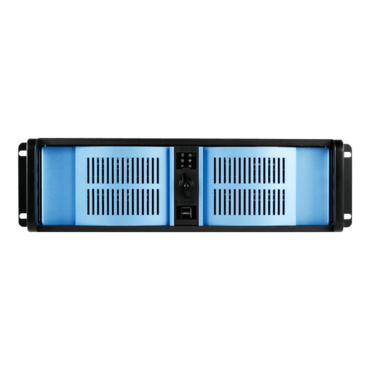

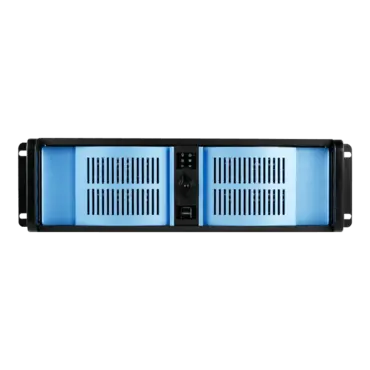

- 3 Way Aluminum Front Panel with Locks
- Front Access USB2.0 x2
- 80mm x1, 60mm x1 Cooling Fan
- Front Mount ATX Power Supply
- Removable Air Filter
- Power and HDD LED
- Power and Alarm Reset Switch
- Optional Aluminum Chassis
| Model Number | D-300-FS-BLUE |
| RoHS Compliance | Yes |
| Form factor | 3 U |
| Standard Drive Bays | 3.5" Drives: 1
3.5" Drive (internal): 5 5.25" Drives: 2 |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | PS2 - up to 160mm deep |
| Expansion Slots | 7 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
| Color of Front Bezel | Blue |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Air Filter | Removable & Washable |
| Motherboard Size | 12 x 9.6 (ATX, microATX) |
| Cooling Fan | 1x60mm, 1x80mm |
| Optional Fan: | 60mm x1, 80mm x3 (bracket DD-FANGUARD-8 required) |
| Ordering Information
(Part Number) |
Black Bezel:D-300-FS
Blue Bezel:D-300-FS-BLUE Red Bezel:D-300-FS-RED Silver Bezel:D-300-FS-SILVER |
| Dimensions (WxHxD) | 19.00" x 5.25" x 20.80"
482.6 mm x 133.3 mm x 528.3 mm |
| Notes | - supports standard ATX power supply length up to 160mm. |
