D Storm D-300SEA-BK-RAIL24, Black Bezel, 4x 5.25", 3x 3.5" Drive Bays, w/ 20" Sliding Rail Kit, No PSU, ATX, Black, 3U Chassis
Quantity:
- SKU: 13213585
- Manufacturer: ISTARUSA
- MPN: D-300SEA-BK-RAIL24
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$219.65
D Storm D-300SEA-BK-RAIL24, Black Bezel, 4x 5.25", 3x 3.5" Drive Bays, w/ 20" Sliding Rail Kit, No PSU, ATX, Black, 3U Chassis
The 3U industrial rackmount chassis D Storm D-300SEA-BK-RAIL24. Optional BPU series enable hot-swappable storage and RAID configuration. D-300SEA-BK-RAIL24 backplane supports 7 full-length add-on cards. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution provide your system with maximum flexibility and performance, also with 20" Sliding Rail Kit.
The 3U industrial rackmount chassis D Storm D-300SEA-BK-RAIL24. Optional BPU series enable hot-swappable storage and RAID configuration. D-300SEA-BK-RAIL24 backplane supports 7 full-length add-on cards. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution provide your system with maximum flexibility and performance, also with 20" Sliding Rail Kit.

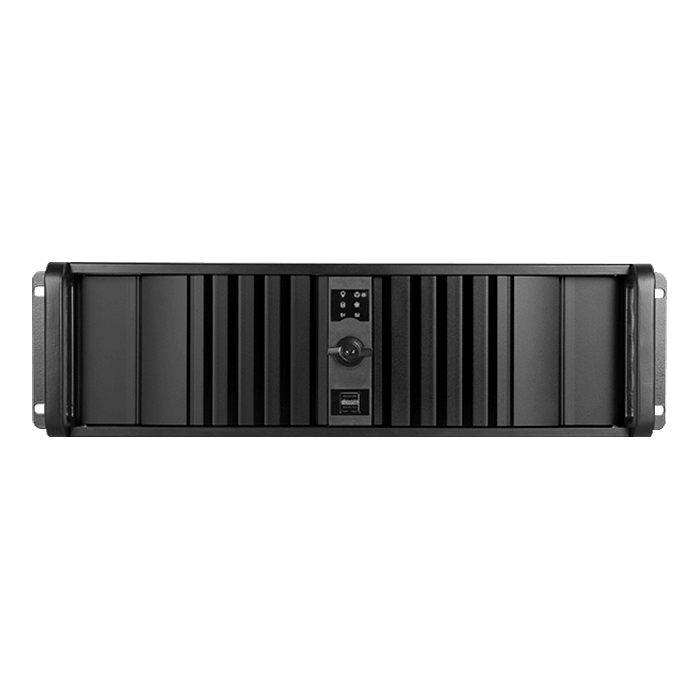

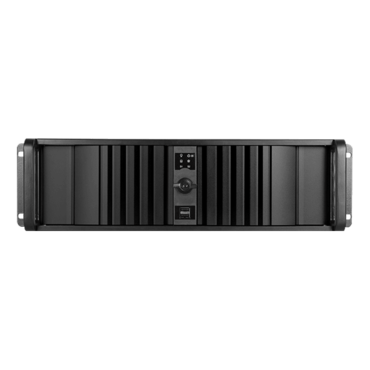

D-300SEA-BK-RAIL24 3U Compact Stylish Rackmount Chassis with black SEA Bezel with 20" Sliding Rail Kit
- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
- Front Access USB2.0 x2
- 60mm x1 Cooling Fan
- Power and HDD LED
- Power and Alarm Reset Switch
- Optional Aluminum Chassis

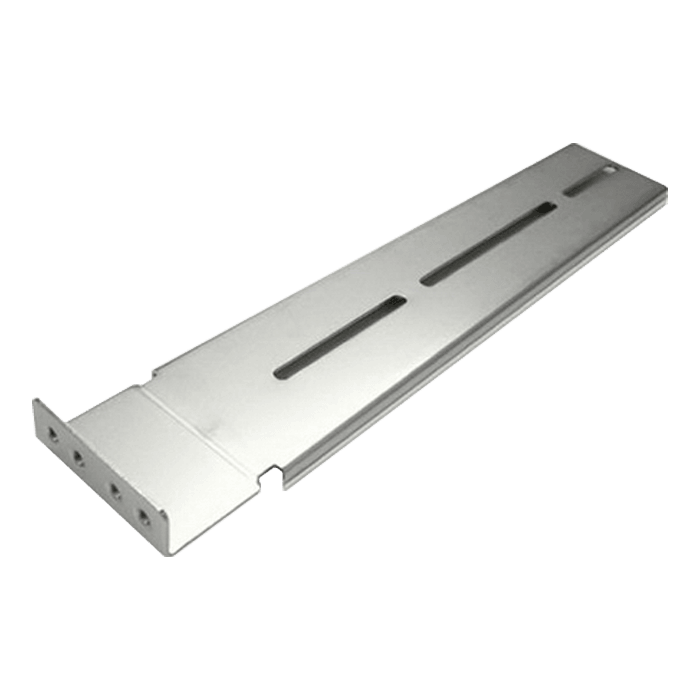

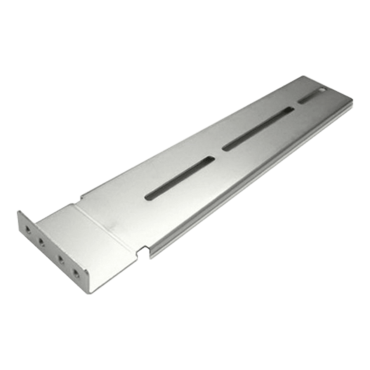

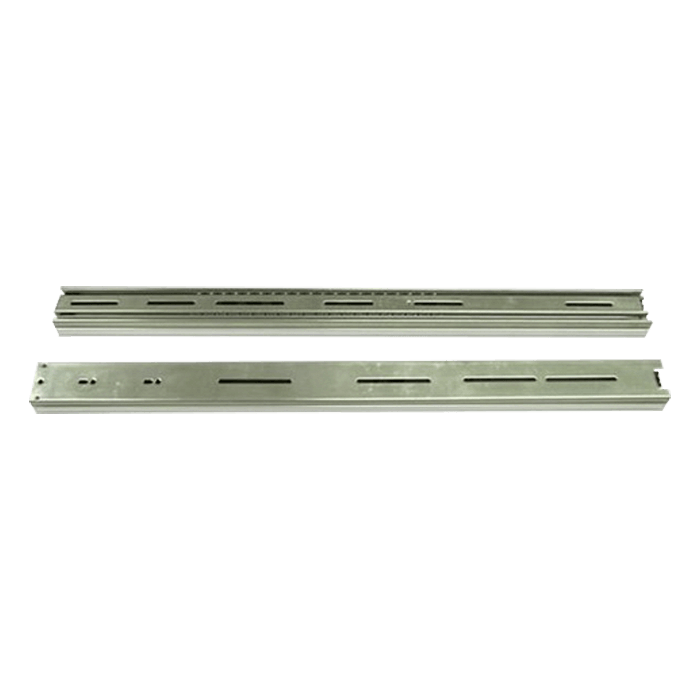

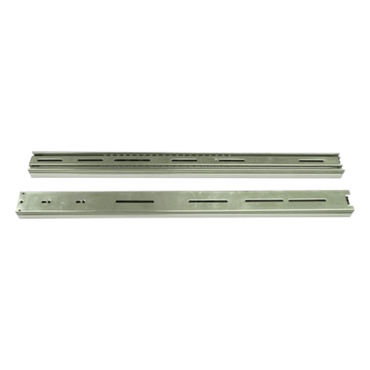

- with 20" Sliding Rail Kit
| Model Number | D-300SEA-BK-RAIL24 |
| RoHS Compliance | Yes |
| Form factor | 3 U |
| Standard Drive Bays | 3.5" Drives: 2
3.5" Drive (internal): 1 5.25" Drives: 4 |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | 1U, 2U |
| Expansion Slots | 7 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
| Color of Front Bezel | Black |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Motherboard Size | 12 x 9.6 (ATX, microATX) |
| Cooling Fan | 1x60mm |
| Optional Fan: | 60mm x1, 80mm x3 (bracket DD-FANGUARD-8 required) |
| Dimensions (WxHxD) | 19.00" x 5.25" x 20.80"
482.6 mm x 133.3 mm x 528.3 mm |
| Notes | - supports power supply length up to 250mm when hotswap cages installed in the front. |
