D Storm D-400SEA-RD-T7SA, Red Bezel, 4x 5.25", 3x 3.5" Drive Bays, No PSU, ATX, Black, 4U Chassis
Quantity:
- SKU: 13192821
- Manufacturer: ISTARUSA
- MPN: D-400SEA-RD-T7SA
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$248.39
D Storm D-400SEA-RD-T7SA, Red Bezel, 4x 5.25", 3x 3.5" Drive Bays, No PSU, ATX, Black, 4U Chassis
iStarUSA 4U industrial rackmount chassis D Storm D-400SEA-RD-T7SA. Combine with BPU or T Series enable hot-swappable storage capability. It also supports up to seven add-on cards and total storage capacity up to 5 storage drives for RAID configuration. D-400SEA-RD-T7SA provide your server or cluster maximum reliability and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution, with rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack.
iStarUSA 4U industrial rackmount chassis D Storm D-400SEA-RD-T7SA. Combine with BPU or T Series enable hot-swappable storage capability. It also supports up to seven add-on cards and total storage capacity up to 5 storage drives for RAID configuration. D-400SEA-RD-T7SA provide your server or cluster maximum reliability and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution, with rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack.
D-400SEA-RD-T7SA 4U Compact Stylish Rackmount Chassis with red SEA Bezel and with rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack

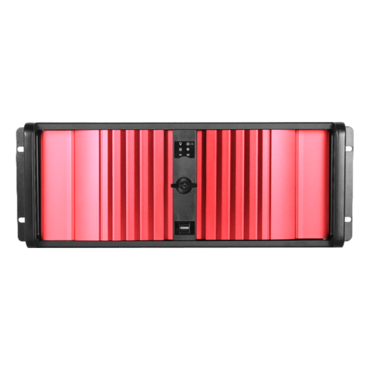

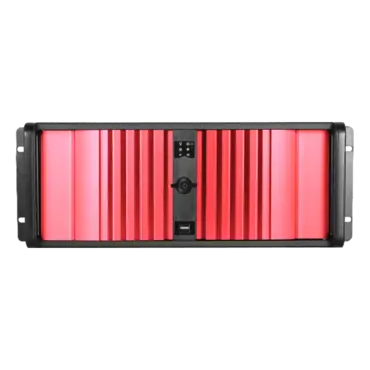

- Patented Aluminum Front Panel with Locks
- Optional BPU-230 2 to 3 Hot-Swappable HDD Cage
- Optional Aluminum Chassis
- Power and Alarm Reset Switch
- Power and HDD LED
- Front Access USB2.0 x2
- 120mm x1 and 80mm x1 Cooling Fan
- With rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
| Model Number | D-400SEA-RD-T7SA |
| RoHS Compliance | Yes |
| Form factor | 4 U |
| Standard Drive Bays | 3.5" Drives: 1
3.5" Drive (internal): 2 5.25" Drives: 4 |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | PS2, Mini Redundant |
| Expansion Slots | 7 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
| Color of Front Bezel | Red |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Motherboard Size | 12 x 9.6 (ATX, microATX) |
| Cooling Fan | 1x80mm, 1x120mm |
| Optional Fan: | 80mm x1 |
| Dimensions (WxHxD) | 19.00" x 7.00" x 20.80"
482.6 mm x 177.8 mm x 528.3 mm |
