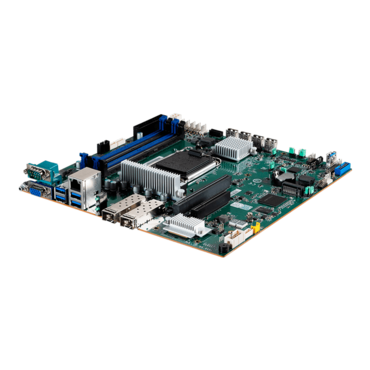

D1505 (D1505GB2N-25G-HE), Intel® C266, LGA 1700, DDR5-4800 128GB ECC/non-ECC UDIMM / 4, VGA, M.2, USB 3.2 Gen1 / 4, SlimSAS 4i / 4, 25GbLAN / 2, microATX Retail
Quantity:
- SKU: 17847876
- Manufacturer: MSI
- MPN: D1505GB2N-25G-HE
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$722.48
| Form Factor |
Micro-ATX
|
| Dimensions |
243.84mm(9.6") x 243.84mm(9.6")
|
| Processor |
Single Intel® Xeon® E-2400 processor, up to TDP 95W
Intel® Pentium® G7400/G7400T, TDP up to 46W |
| Socket |
(1) Intel® Socket LGA1700
|
| Chipset |
Intel® C266
|
| Memory |
(4) DDR5 DIMM slots, 2DPC, ECC/non-ECC UDIMM
- Max. Frequency 4800MT/s (1DPC) and 3600MT/s (2DPC) - Max. Capacity per DIMM: 32GB |
| Storage |
(1) SlimSAS 4i for (1) PCIe 4.0 x4 NVMe or (4) SATA3.0
(1) SlimSAS 4i for (1) PCIe 3.0 x4 NVMe or (4) SATA3.0 (2) SlimSAS 4i for (2) PCIe 4.0 x4 NVMe (1) M.2 2280/22110 PCIe4.0 x4 |
| Expansion Slot |
(1) PCIe 5.0 x16 slot from CPU
(1) PCIe 4.0 x8 slot (x4 signal) from CPU |
| Networking |
(2) 25G SFP28 Ethernet Ports (Intel E810XXVAM2)
*Both support NCSI , only one NCSI LAN port can be enabled at a time |
| RAID |
Intel® SATA RAID 0/1/10/5
|
| Graphics |
(1) D-Sub 15-pin port from the integrated AST2600 BMC
|
| USB |
(7) USB3.2 Gen1 Ports
|

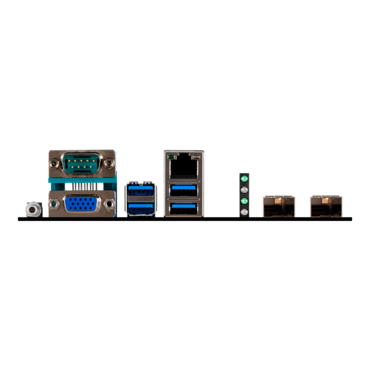

| Rear I/O |
(2) 25G SFP28 Ethernet Ports
(1) 1000Base-T Dedicated Server Management Port (4) USB3.2 Gen1 Type-A Ports (1) VGA D-Sub Port (1) COM DB9 Port (1) UID LED Button (1) 1x4 Link/Speed LEDs for SFP28 ports |
| Internal I/O |
(1) USB3.2 Gen1 x2 header
(1) USB3.2 Gen1 TypeA (1) SPI TPM header (1) COM header (1) Buzzer (1) Intrusion header (1) Front panel header (3) I2C headers (1) IPMB headers (1) GPIO header (1) PMBus header (6) 4-pin PWM FAN header |
| Power Connector |
(1) 24-pin ATX power connector
(1) 8-pin 12V power connector (1) 4-pin power connector for HDD BP |
| TPM |
(1) TPM header with SPI interface
|
| Server Management |
(1) 1000Base-T Dedicated Server Management Port (Realtek RTL8211FD-CG)
ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API |
| Environment |
Operating Temperature: 0°C ~ 40°C
Non-operating Temperature: -20°C ~ 70°C Non-operating Relative Humidity: 5% ~ 85% (non-condensing) |
| Certification |
CE, FCC (Class A)
|
| Package Contents |
(1) Quick guide
(1) D1505 motherboard (1) I/O shield (1) Slimline-4i to (4) 7-pin SATA fanout cable |
| Parts List |
(1)Quick guide: G52-S3652X1-Q13
(1)I/O shield:E21-S365010-C22 (1)SATA Cable: K1K-3028001-V03 |
| Optional parts |
TPM2.0 module: TPM20-IR
|
