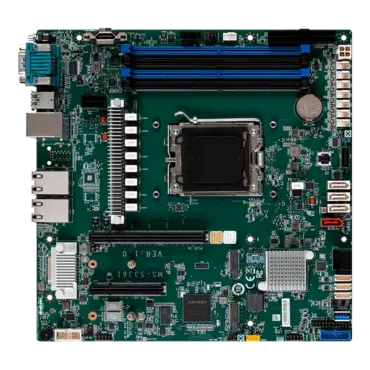

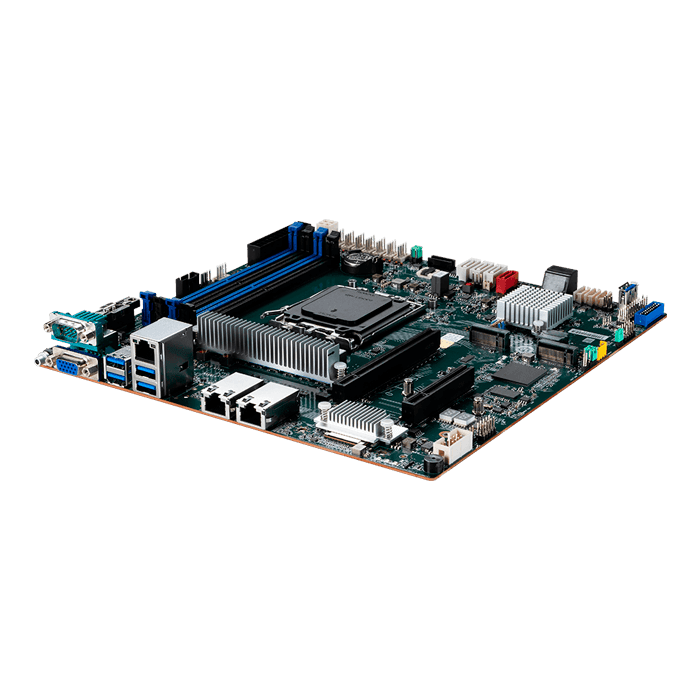

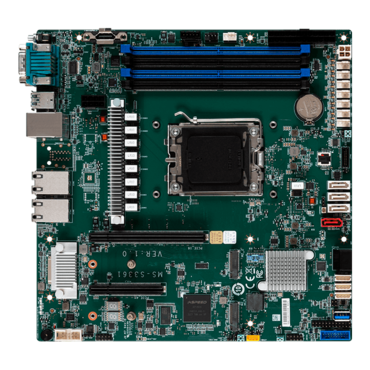

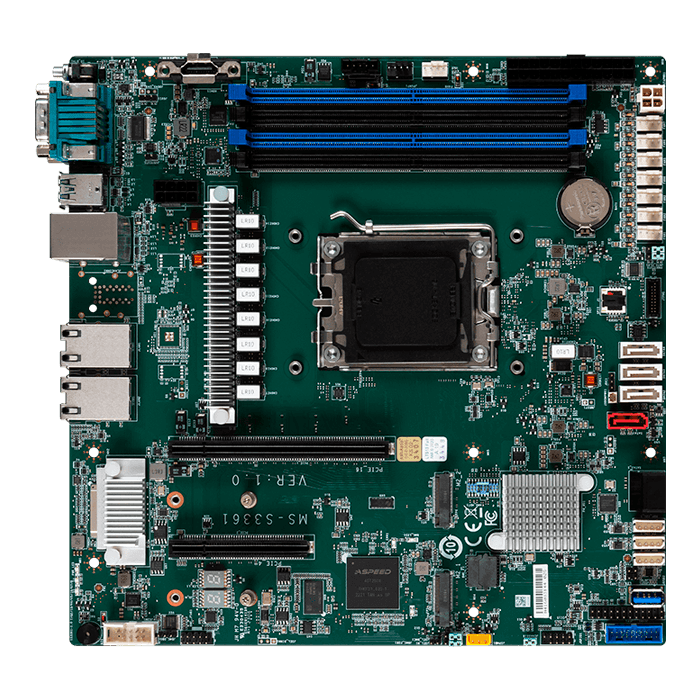

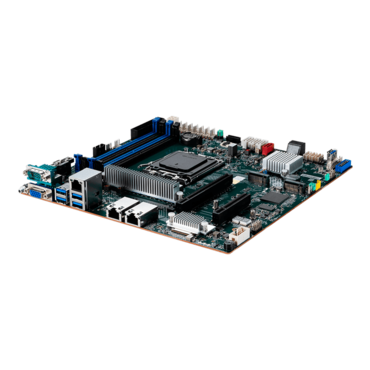

D3051 (D3051GB2N-10G), AMD B650, AM5, DDR5-5200 192GB ECC/non-ECC UDIMM / 4, VGA, M.2 / 2, USB 3.2 Gen1 / 4, 10GbLAN / 2, microATX Retail
Quantity:
- SKU: 17851294
- Manufacturer: MSI
- MPN: D3051GB2N-10G
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$505.73
| Form Factor | Micro-ATX |
| Dimensions | 243.84mm(9.6") x 243.84mm(9.6") |
| Processor | Single AMD Ryzen™ 7000 Series and EPYC™ 4004 Series Processor, up to TDP 170W |
| Socket | (1) AMD Socket AM5 |
| Chipset | AMD B650 |
| Memory |
(4) DDR5 DIMM slots, 2DPC, ECC/non-ECC UDIMM - Max. Frequency 5200MT/s(1DPC) and 3600MT/s(2DPC) - Max. Capacity per DIMM: 48GB |
| Storage |
(4) SATA3.0 ports (one port supports SATA DOM) (2) SATA2.0 ports (2) M.2 2280/22110 PCIe 4.0 x4 (one shares link with PCIE_2 slot) |
| Expansion Slot |
(1) PCIe 5.0 x16 slot from CPU (1) PCIe 4.0 x8 slot (x4 signal) from CPU(shares link with M2_1) |
| Networking |
(2) 10GbE Base-T Ethernet Ports (Intel® X710AT2) *JLAN1,2 supports NCSI |
| Graphics | (1) D-Sub 15-pin port from the integrated AST2600 BMC |
| Rear I/O |

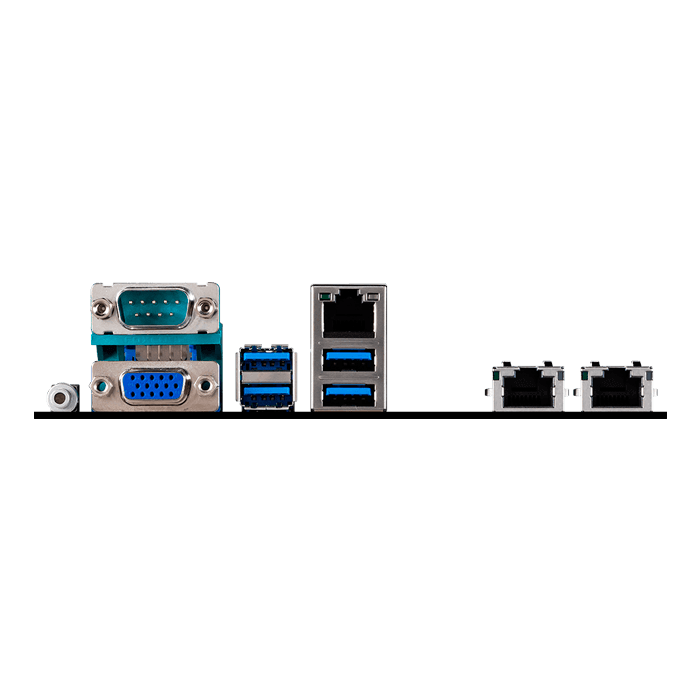

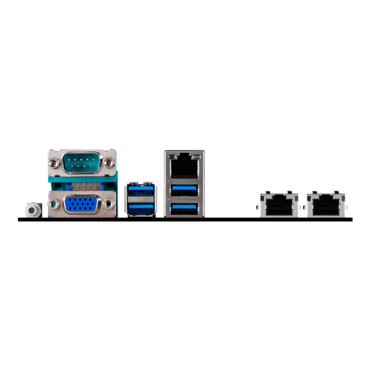

(2) 10GBase-T Ethernet Ports (1) 1000Base-T Dedicated Server Management Port (4) USB3.2 Gen1 Type-A Ports (1) VGA D-Sub Port (1) COM DB9 Port (1) UID LED Button |
| Internal I/O |
(1) USB3.2 Gen1 x2 header (1) USB3.2 Gen1 TypeA (1) SPI TPM header (1) COM header (1) Buzzer (1) Intrusion header (1) Front panel header (3) I2C headers (1) IPMB headers (1) GPIO header (1) PMBus header (9) 4-pin PWM FAN header(one for liquid cooling only) |
| Power Connector |
(1) 24-pin ATX power connector (1) 8-pin 12V power connector (1) 4-pin SATA power connector (1) 2-pin SATA DOM power connector |
| TPM | (1) TPM header with SPI interface |
| Server Management |
(1) 1000Base-T Dedicated Server Management Port (Realtek RTL8211FD-CG) ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API |
| Environment |
Operating Temperature: 0°C ~ 40°C Non-operating Temperature: -20°C ~ 70°C Non-operating Relative Humidity: 5% ~ 85% (non-condensing) |
| Package Contents |
(1) Quick guide (1) D3051 motherboard (1) I/O shield (2) SATA cable (2) AM5 heatsink brackets |
| Parts List |
Quick guide: G52-S3362X2-Q13 I/O shield: E21-S336010-C22 SATA Cable: (2)K1D-3008082-V03 Retention frame: (2)E96-7D67020-A91 |
| Optional parts | TPM2.0 module: TPM20-IR |
