Form Factor |
Micro-ATX
|
Dimensions |
243.84mm(9.6") x 243.84mm(9.6")
|
Processor |
Single AMD Ryzen™ 7000 Series and EPYC™ 4004 Series Processor, up to TDP 170W
|
Socket |
(1) AMD Socket AM5
|
Chipset |
AMD B650
|
Memory |
(4) DDR5 DIMM slots, 2DPC, ECC/non-ECC UDIMM
- Max. Frequency 5200MT/s(1DPC) and 3600MT/s(2DPC) - Max. Capacity per DIMM: 48GB |
Storage |
(4) SATA3.0 ports (one port supports SATA DOM)
(2) SATA2.0 ports (1) M.2 2280/22110 PCIe4.0 x4 |
Expansion Slot |
(1) PCIe 5.0 x16 slot from CPU
(1) PCIe 5.0 x8 slot (x4 signal) from CPU |
Networking |
(2) 25G SFP28 Ethernet Ports (Intel® E810-XXVAM2)
*Both support NCSI |
Graphics |
(1) D-Sub 15-pin port from the integrated AST2600 BMC
(1) HDMI A type from CPU |
USB |
(7) USB3.2 Gen1 Ports
|

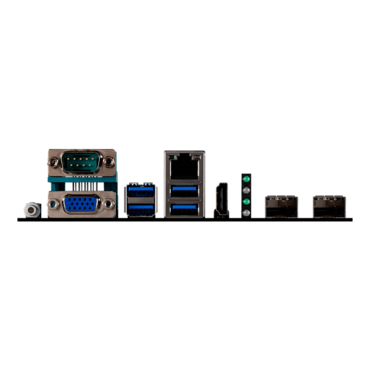

Rear I/O |
(2) 25G SFP28 Ethernet Ports
(1) 1000Base-T Dedicated Server Management Port (4) USB3.2 Gen1 Type-A Ports (1) HDMI™ 1.4b Connector (1) VGA D-Sub Port (1) COM DB9 Port (1) UID LED Button (1) 1x4 Link/Speed LEDs for SFP28 ports |
Internal I/O |
(1) USB3.2 Gen1 x2 header
(1) USB3.2 Gen1 TypeA (1) SPI TPM header (1) COM header (1) Buzzer (1) Intrusion header (1) Front panel header (3) I2C headers (1) IPMB headers (1) GPIO header (1) PMBus header (6) 4-pin PWM FAN header |
Power Connector |
(1) 24-pin ATX power connector
(1) 8-pin 12V power connector (1) 4-pin SATA power connector (1) 2-pin SATA DOM power connector |
TPM |
(1) TPM header with SPI interface
|
Server Management |
(1) 1000Base-T Dedicated Server Management Port (Realtek RTL8211FD-CG)
ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API |
Environment |
Operating Temperature: 0°C ~ 40°C
Non-operating Temperature: -20°C ~ 70°C Non-operating Relative Humidity: 5% ~ 85% (non-condensing) |
Certification |
CE, FCC (Class A)
|
Package Contents |
(1) Quick guide
(1) D3052 motherboard (1) I/O shield (2) SATA cables (2)Retention frames |
Parts List |
(1)Quick guide: G52-S3662X1-Q13
(1)I/O shield: E21-S366010-C22 (2)SATA Cable: K1D-3008082-V03 (2)Retention frame: E96-7D67020-A91 |
Optional parts |
TPM2.0 module: TPM20-IR
|
