Accelerated Performance
174% higher 4K random read IOPS and 76% faster
sequential write speeds compared to its predecessor -
Maximize Performance
Turbocharge HDD arrays without occupying drive bays
using dual built-in M.2 slots for NVMe SSD cache -
Easy Storage Expansion
Scale-up on-demand to 16 drives with two DX517
expansion units -
Includes Everything to Protect Your Data
Back up critical data to and from public clouds,
Windows PCs and servers, virtual machines, and data
on the NAS with Synology Active Backup suite, Hyper
Backup, and Snapshot Replication -
Ready for 10/25GbE
Supports 10GbE SFP+ / RJ-45 and 25GbE SFP28 NICs to
instantly increase network bandwidth based on your
infrastructure
CPU | ||
CPU Model | AMD Ryzen V1500B | |
CPU Quantity | 1 | |
CPU Architecture | 64-bit | |
CPU Frequency | 4-core 2.2 GHz | |
Hardware Encryption Engine (AES-NI) | ✔ | |
Memory | ||
System Memory | 4 GB DDR4 ECC SODIMM | |
Memory Module Pre-installed | 4 GB (4 GB x 1) | |
Total Memory Slots | 2 | |
Maximum Memory Capacity | 32 GB (16 GB x 2) | |
Notes |
|
|
Storage | ||
Drive Bays | 6 | |
Maximum Drive Bays with Expansion Unit | 16 (DX517 x 2) | |
M.2 Drive Slots | 2 (NVMe) | |
Compatible Drive Type |
|
|
Maximum Single Volume Size | 108 TB | |
Hot Swappable Drive | ✔ | |
Notes |
|
|

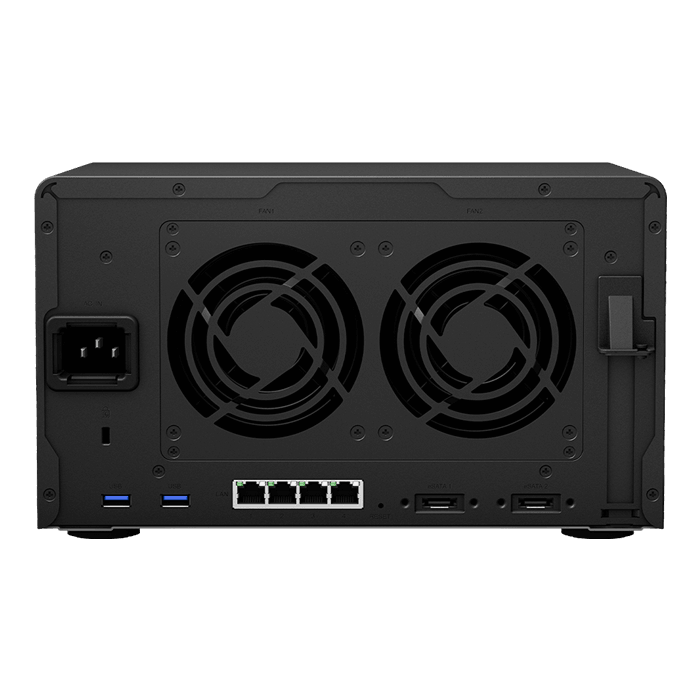

External Ports | ||
RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) | |
USB 3.2 Gen 1 Port | 3 | |
eSATA Port | 2 | |
Notes | The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. | |
PCIe | PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
File System | ||
Internal Drives |
|
|
External Drives |
|
|
Notes | exFAT Access is purchased separately in Package Center. | |
Appearance | ||
Size (Height x Width x Depth) | 166 mm x 282 mm x 243 mm | |
Weight | 5.1 kg | |
Others | ||
System Fan | 92 mm x 92 mm x 2 pcs | |
Fan Speed Mode |
|
|
Easy Replacement System Fan | ✔ | |
Brightness Adjustable Front LED Indicators | ✔ | |
Power Recovery | ✔ | |
Noise Level* | 25.2 dB(A) | |
Scheduled Power On / Off | ✔ | |
Wake on LAN / WAN | ✔ | |
Power Supply Unit / Adapter | 250 W | |
AC Input Power Voltage | 100 V to 240 V AC | |
Power Frequency | 50/60 Hz, Single Phase | |
Power Consumption* |
51.22 W (Access) 25.27 W (HDD Hibernation) |
|
British Thermal Unit |
174.77 BTU/hr (Access) 86.22 BTU/hr (HDD Hibernation) |
|
Notes |
|
|
Temperature | ||
Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
Relative Humidity | 5% to 95% RH | |
Certification |
|
|
Warranty | ||
3 Years | ||
Notes | The warranty period starts from the purchase date as stated on your purchase receipt. | |
Environment | RoHS Compliant | |
Packaging Content |
|
|
Optional Accessories |
|
