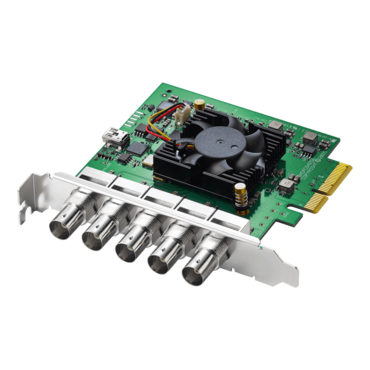

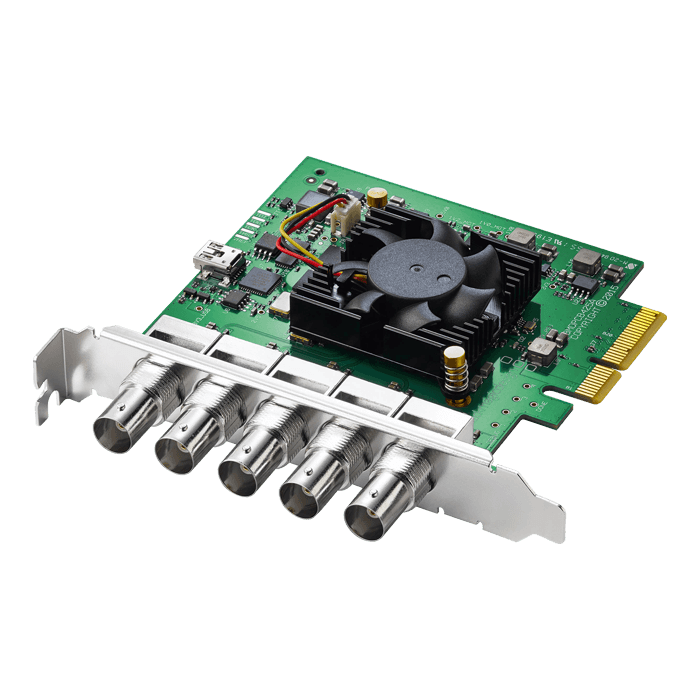

DeckLink Duo 2, 1080p 60Hz Passthrough / 1080p 60Hz Capture, PCIe Capture Card
Quantity:
- SKU: 13311610
- Manufacturer: Blackmagic Design
- MPN: BDLKDUO2
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$608.30
DeckLink Duo 2, 1080p 60Hz Passthrough / 1080p 60Hz Capture, PCIe Capture Card
With four bi-directional SDI interfaces, the Blackmagic Design DeckLink Duo 2 is a versatile video I/O card for professional video workflows. Since each SDI interface can be configured to be either an input or an output, a computer with this card installed can be purposed as a media play-out system, a multi-screen digital signage server, a live keyer, a real-time multi-channel capture system, or a combination of the above to fit your specific workflow of the moment. A reference input is also available for syncing with other studio equipment.
Processing
- Colorspace Conversion: Hardware based real time
- HD Down Conversion: Built-in, high quality software down converter from HD to SD on output. Down converted SD selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
- HD Up Conversion: Built-in, high quality software up conversion from SD to 720HD or 1080HD on input. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom
- Cross Conversion: Built-in, high quality hardware cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback
- Real Time Effects Support: Final Cut Pro X internal effects, Premiere Pro CC Mercury Playback Engine effects, Avid Media Composer internal effects
Software Compatibility
The DeckLink Duo 2 interfaces with many popular NLE, DAW, and professional software programs including:
- Blackmagic Design: DaVinci Resolve, Fusion 8
- Apple: Final Cut Pro X
- Adobe: Premiere Pro CC, After Effects CC, Photoshop CC
- Avid: Media Composer, Pro Tools
- Stienberg: Cubase, Nuendo
| Host Connection | PCIe x4 (PCIe 2.0) |
| Input | |
|---|---|
| Video Input Connectors | 4 x BNC (12G-SDI) Female |
| Input Video Format |
SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps PAL: 50 fps NTSC: 60 fps |
| Audio Input Connectors | None |
| Input Audio Format | Analog: 48 kHz / 24-Bit |
| Embedded Audio Input | SDI: 16-Channel |
| Standards | |
| Video Standard Compliance |
SMPTE 259M/292M/296M/372M/425M ITU -R BT.601/BT.656 |
| Connectivity | |
| Other I/O | 1 x BNC Blackburst, Reference, Tri-Level Sync Input |
| Hardware | |
| OS Compatibility |
Windows 7 or Later macOS 10.14 or Later Linux |
| Power Consumption | 10 W |
| General | |
| Certifications | C-Tick, CE, FCC, as per Manufacturer |
| Dimensions | 3.7" / 9.4 cm |
| Weight | 5.64 oz / 160 g |
| Warranty Length | Limited 3-Year Warranty |
| Packaging Info | |
| Package Weight | 0.54 lb |
| Box Dimensions (LxWxH) | 5.65 x 5.55 x 1.2" |
