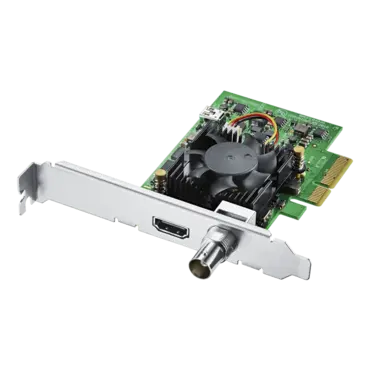

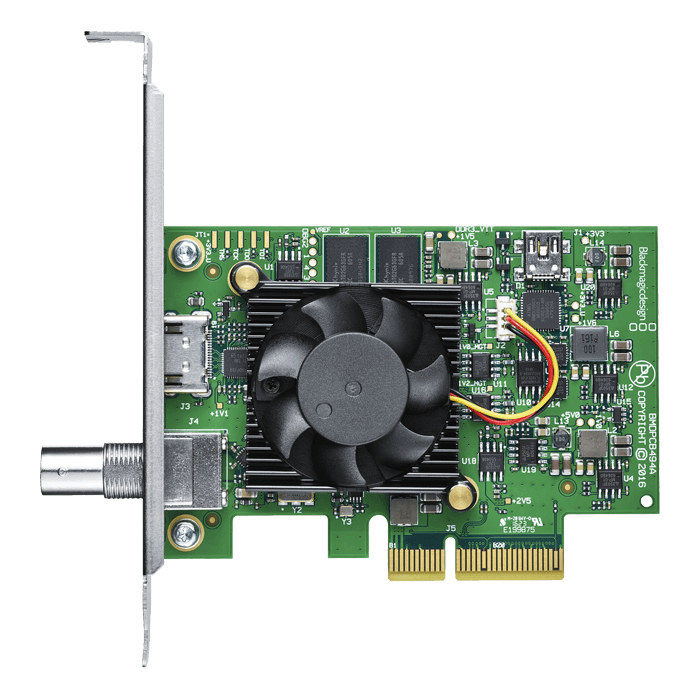

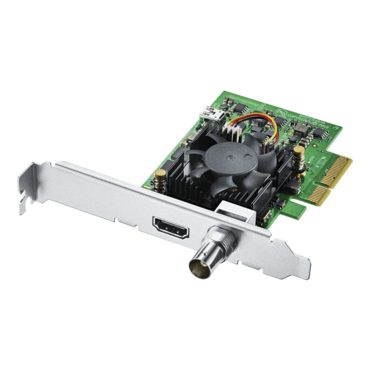

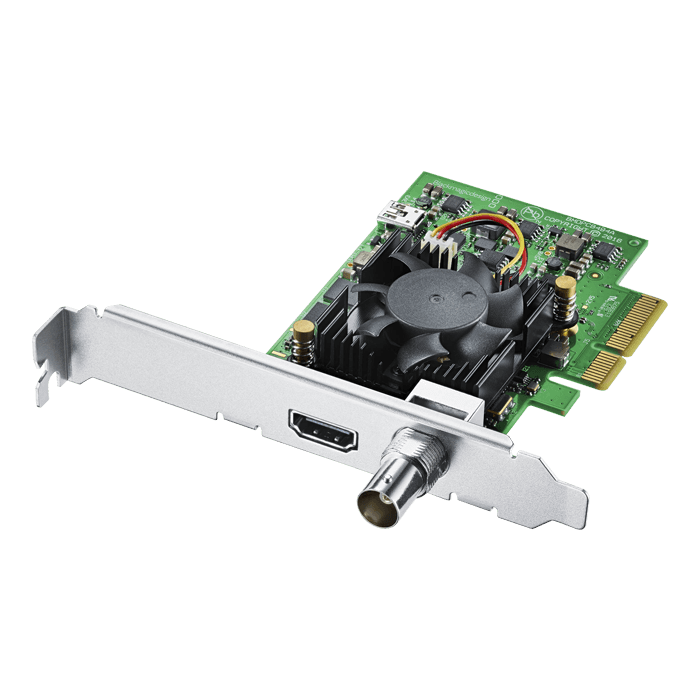

DeckLink Mini Monitor 4K, 2160p 30Hz Passthrough / 2160p 30Hz Capture, PCIe Capture Card
Quantity:
- SKU: 13517584
- Manufacturer: Blackmagic Design
- MPN: BDLKMINIMON4K
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$239.95
| Host Connection | PCIe x4 (PCIe 2.0) |
| Video Output Connectors |
1 x BNC (6G-SDI) Female 1 x HDMI (HDMI 2.0a) Female |
| Output Video Format |
SDI (8/10-Bit 4:2:2 YUV) DCI 4K: 23.98/24/25 fps UHD 4K: 23.98/24/25/29.97/30 fps DCI 2K: 23.98/24/25 fps DCI 2KPsF: 23.98/24/25 fps SDI (8/10/12-Bit 4:4:4 RGB) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps PAL NTSC HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0) DCI 4K: 23.98/24/25 fps UHD 4K: 23.98/24/25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps PAL NTSC |
| Audio Output Connectors | None |
| Embedded Audio Output |
SDI: 16-Channel HDMI: 8-Channel |
| Video Standard Compliance |
SMPTE 259M/292M/296M/372M/425M/ST-2081 ITU -R BT.601/BT.656 |
| OS Compatibility |
Windows 7 or Later macOS 10.14 or Later Linux |
| Power Consumption | 10 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
