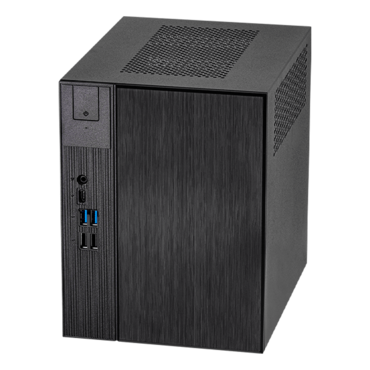

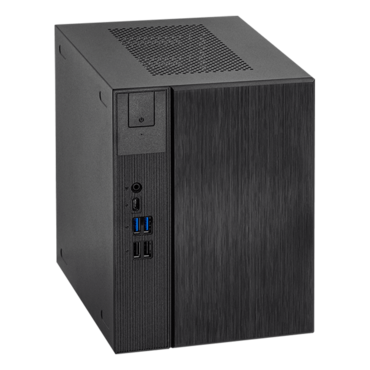

DeskMeet X300W - TAA Compliant, Intel® X300 Chipset, 4x DDR4 DIMM Memory, 1x M.2 SSD, 2x 2.5" HDD/SSD, 500W PSU, Mini Cube PC Barebone
Quantity:
- SKU: 18117048
- Manufacturer: ASROCK
- MPN: DESKMEET X300W/B/BB/BOX/US
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$227.86
- Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors, up to 65W
- Supports MAX Height ? 54mm CPU Cooler
- Supports 4 x DDR4-3200MHz DIMMs, up to 128GB
- 1 x PCIe 3.0 x16
- Graphics Output Options:DisplayPort, HDMI & D-Sub
- 2 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4)
- 1 x USB 3.2 Gen1 Type-C Port
- 4 x USB 3.2 Gen1 Type-A port (2 Front, 2 Rear)
- 4 x USB 2.0 Type-A port (2 Front, 2 Rear)
- 1 x M.2 Key-E for Wi-Fi
- 500W power supply (80+ Bronze)
- 8 Liter compact size
| CPU | - Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors, up to 65W |
| Cooler | - Supports AMD AM4 CPU Cooler (Max. Height ≦ 54mm) |
| Memory |
- Supports Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM slots (Max. 128GB) - AMD Ryzen 5000/4000 series – 3200MHz - AMD Ryzen 3000/2000 series – 2933MHz - Supports ECC & non-ECC, un-buffered memory* *For Ryzen Series APUs (Cezanne, Renoir and Picasso), ECC is only supported with PRO CPUs.
|
| Chipset | - AMD X300 |
| Graphics |
- Supports a discrete Dual slot Graphics card up to 20CM - Supports up to 200W discrete graphic card with a 8pins PCIe power connector |
| Audio | - Realtek ALC897 Audio Codec |
| Storage |
- 2 x SATA3 6.0Gb/s ports (RAID 0/1) - 1 x Ultra M.2 (2280) PCIe Gen3 x4 slot |
| LAN | - Gigabit LAN (RealtekRTL8111H) |
| Expansion Slots |
- 1 x PCIe 3.0 x 16 - 1 x M.2 (key E 2230) slot for Wi-Fi + BT Module |
| Front I/O |
- 1 x Headphone/Headset Jack - 1 x USB 3.2 Gen1 Type-C port - 2 x USB 3.2 Gen1 Type-A port - 2 x USB 2.0 Type-A port |

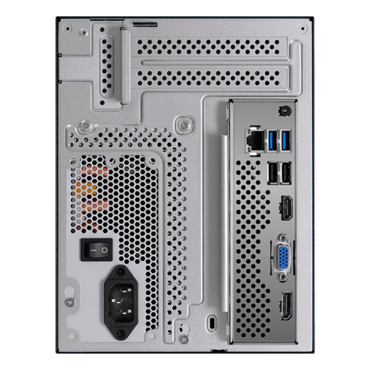

| Rear I/O |
- 1 x DisplayPort - 1 x HDMI - 1 x D-Sub - 2 x USB 2.0 - 2 x USB 3.2 Gen1 Type-A - 1 x RJ-45 LAN Port - 1 x Audio Jack (Line out) |
| Connectors |
- 1 x Chassis Intrusion Header - 1 x CPU Fan Connector (4-pin) - 1 x Chassis/Water Pump Fan Connector (4-pin, DC mode only) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Header - 1 x USB 2.0 Header (Support 2 USB 2.0 ports) (Supports ESD Protection) - 1 x COM Port Header (Optional for X300-ITX/COM model) |
| Volume (liters) | - 8L |
| Power Unit | - 500W power supply (80+ Bronze, peak 550W) |
| Accessory |
- Quick Installation Guide - 2 x SATA Data Cables - 1 x Screws Package |
| Dimension |
- 168 (W) x 219.3 (D) x 218.3(H) mm (excl. Protrusions) - 168 (W) x 236.1 (D) x 221.6(H) mm (incl. Protrusions) |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
