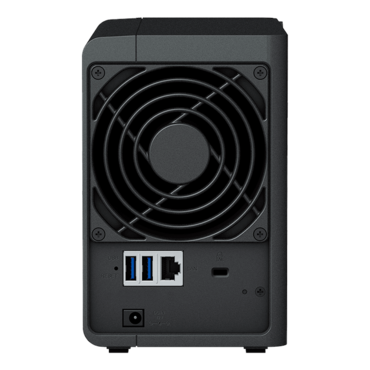

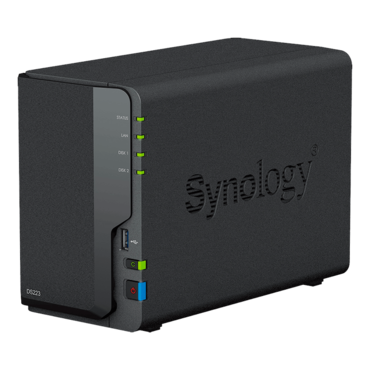

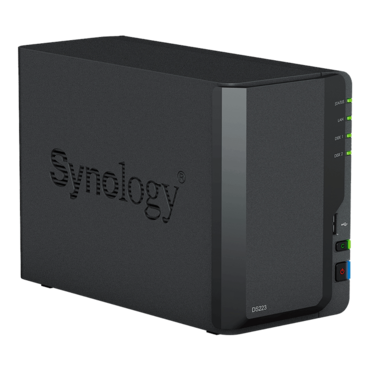

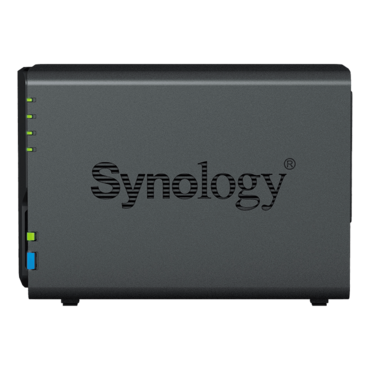

DiskStation® DS223 2-Bay NAS Server, Realtek RTD1619B Processor Quad-core 1.7 GHz, 2GB DDR4 RAM (not expandable), SATA 6Gb/s, 1GbLAN, USB 3.2 Gen 1 / 3, 60W PSU

DiskStation® DS223 2-Bay NAS Server, Realtek RTD1619B Processor Quad-core 1.7 GHz, 2GB DDR4 RAM (not expandable), SATA 6Gb/s, 1GbLAN, USB 3.2 Gen 1 / 3, 60W PSU

Quantity:

SKU: 15853098
Manufacturer: SYNOLOGY
MPN: DS223
Availability: USUALLY SHIPS WITHIN 3-5 DAYS

Starting At

$283.94

CPU	CPU Model	Realtek RTD1619B
	CPU Quantity	1
	CPU Core	4
	CPU Architecture	64-bit
	CPU Frequency	1.7 GHz
	Hardware Encryption Engine	✔
Memory	System Memory	2 GB DDR4 non-ECC
Memory	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage	Drive Bays	2
	Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA SSD
	Hot Swappable Drive*	✔
	Notes	"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports	RJ-45 1GbE LAN Port	1
	USB 3.2 Gen 1 Port*	3
	USB Copy	✔
	Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
Appearance	Size (Height x Width x Depth)	165 mm x 108 mm x 232.7 mm
Appearance	Weight	1.28 kg
Others	System Fan	92 mm x 92 mm x 1 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Brightness Adjustable Front LED Indicators	✔
	Power Recovery	✔
	Noise Level*	14.6 dB(A)
	Scheduled Power On / Off	✔
	Wake on LAN / WAN	✔
	Power Supply Unit / Adapter	60 watts
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	17.343 watts (Access) 4.08 watts (HDD Hibernation)
	British Thermal Unit	59.19 BTU/hr (Access) 13.92 BTU/hr (HDD Hibernation)
	Notes	For more information on how power consumption is measured, refer to this article. Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%.
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC
Warranty	2-year hardware warranty, extendable to 4 years with Extended Warranty Plus
Warranty	Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability information please visit their respective websites.
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 1 Quick Installation Guide X 1
Optional Accessories	Enterprise Series 3.5" SATA HDD: HAT5300 Series Plus Series 3.5" SATA HDD: HAT3300 Series Enterprise Series 2.5" SATA SSD: SAT5200 Series
