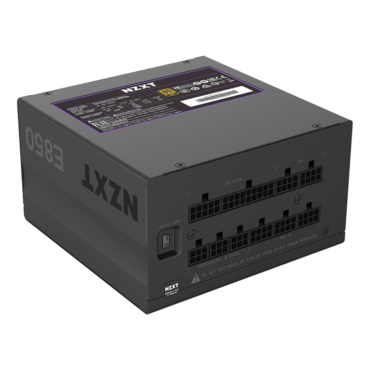

E850, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 13265314
- Manufacturer: NZXT
- MPN: NP-1PM-E850A
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$123.61
E850, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply
NZXT E850 (NP-1PM-E850A). The new E Series ATX power supplies from NZXT feature digital voltage and temperature monitoring so you get precise, real-time information about your PSU, including uptime, wattage by rail, and temperature. Store and track key data over time using CAM so you’ll always have an accurate picture of your PSU’s health. Manufactured with top-quality components and backed by a 10-year warranty, the E850 delivers both peace of mind and up to 850 watts of clean, reliable power to your multi-GPU gaming system.
- Power indicators monitored and tracked through CAM software
- Delivers precise & stable voltage while ensuring optimal efficiency under load
- Silent operation with 0 RPM fan when operating under 100 watt
- All the essentials delivered by a modern PSU: complete protection and fully modular design
| Dimensions | 150 x 150 x 86 mm |
| Material(s) | Steel, PCB and plastic |
| Compliance Standard | ATX12V v2.4 / EPS12V v2.92 |
| PF Correction | [email protected] |
| AC Input Rating | 100-240Vac, 12-6A, 50-60Hz |
| Fan Specs | Dimensions: 120 x 120 x 25mm
Speed: 0-1,800 + 180 RPM Airflow: 73.9 CFM Noise: 32.3 dBA Bearing: FDB (Fluid Dynamic Bearing) |
| Hazardous Materials | RoHS & China RoHS |
| Energy Efficiency | 80 Plus Gold 20% loading: 87%, 50% loading: 90%, 100% loading: 87% @115Vac |
| Operation Temperature | 0 to 50°C |
| Regulations & Certifications (EMC & Safety) | CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI / Australia RCM / EAC |
| MTBF | 100,000 hours |
| Output Connector(s) | 1 x 24-pin ATX power
2 x 4+4-pin CPU power 6 x PCIe (6+2 pin) 8 x SATA 6 x Peripherals 1 x Mini-USB |
| Included Cables | 1 x 24-pin ATX power (length: 610 mm, Nylon sleeving)
2 x 4+4-pin CPU power (length: 650 mm, Nylon sleeving) 3 x PCIe (6+2 pin) (length: 675 +75 mm, Nylon sleeving) 2 x SATA (length: 500 + 100 +100 +100 mm) 2 x Peripherals (length: 500 + 100 +100 mm) 1 x Mini-USB (length: 600mm) |
| Warranty | 10 years |
| Model Number | NP-1PM-E850A |
| EAN | 5060301693733 (US) |
| UPC | 815671013415 (US) |
