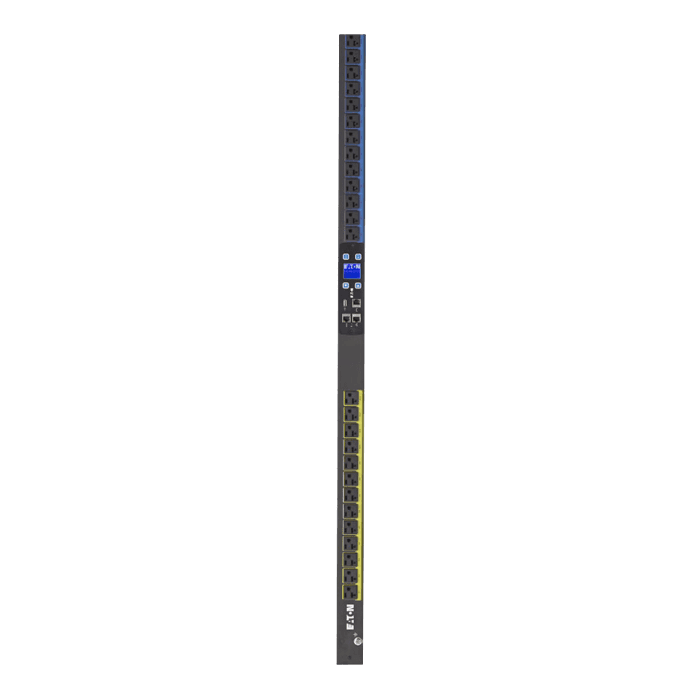

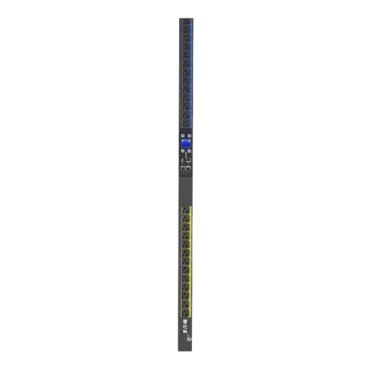

EMI344-10 Metered Input rack PDU, 0U, L21-30P input, 8.64 kW max, 120/208V, 24A, 10 ft cord, Three-phase, Outlets: (24) 5-20R

Quantity:
  • SKU: 9701036
  • Manufacturer: EATON
  • MPN: EMI344-10
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$1,681.74
Quantity:
EMI344-10 Metered Input rack PDU, 0U, L21-30P input, 8.64 kW max, 120/208V, 24A, 10 ft cord, Three-phase, Outlets: (24) 5-20R

Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3 Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.

General
Device Type Power distribution unit - rack-mountable
Height (Rack Units) 38U
Power Device
Input Wiring 3-phase
Input Connectors 1 x power NEMA L21-30
Power Output Connectors Details 24 x power NEMA 5-20R
Max Electric Current 24 A
Power Capacity 8.64 kW
Miscellaneous
Cables Included Power cable 10 ft
Features Voltage monitoring, vertical orientation
Dimensions & Weight
Width 2.1 in
Depth 2.1 in
Height 66.5 in
