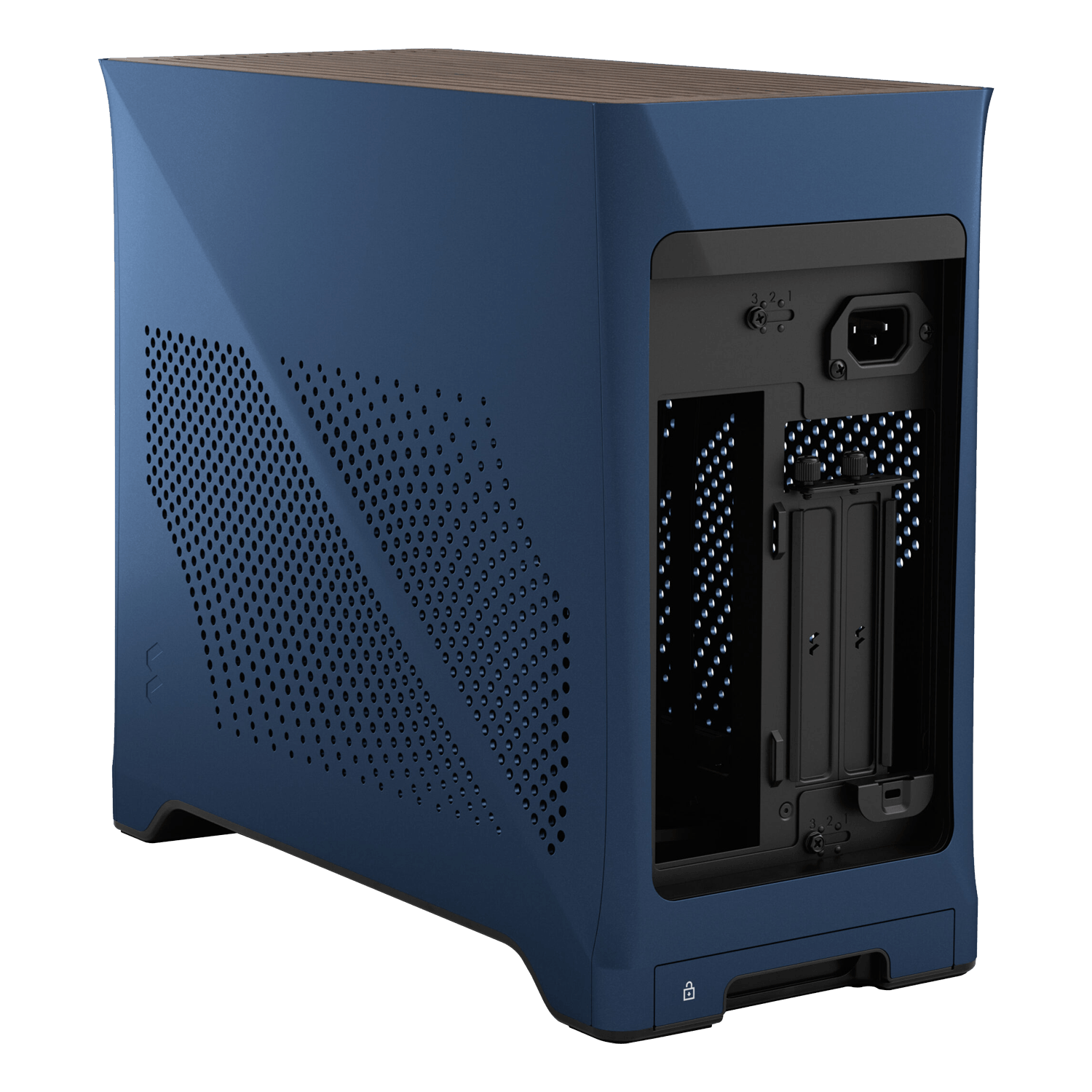

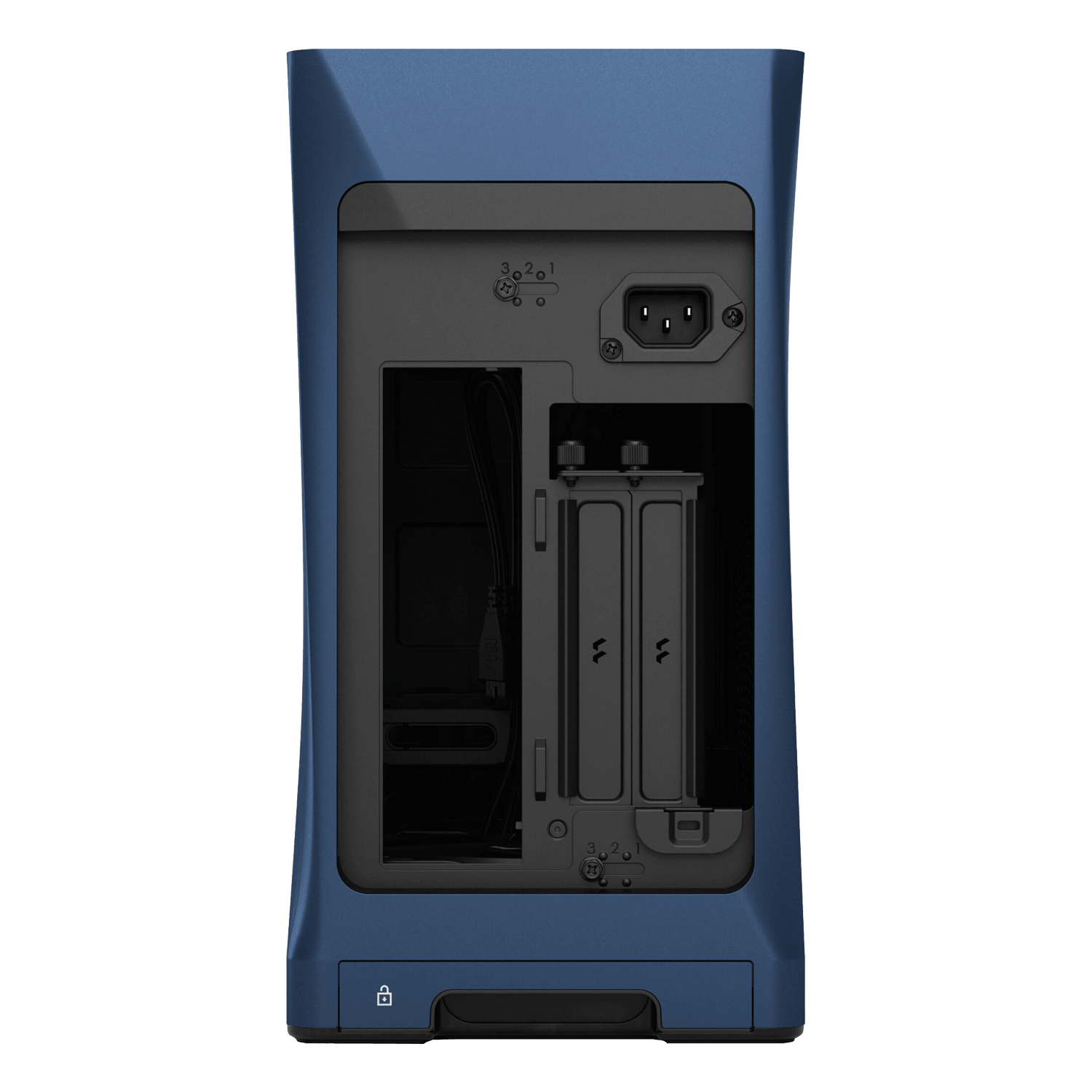

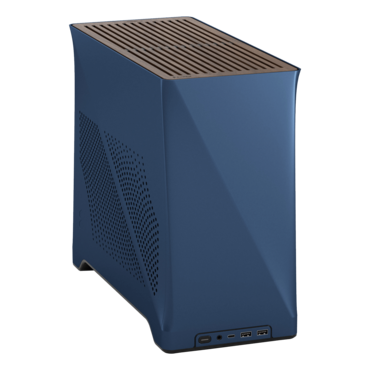

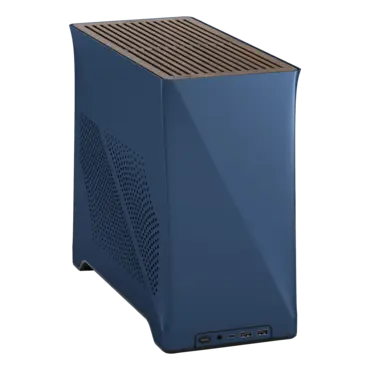

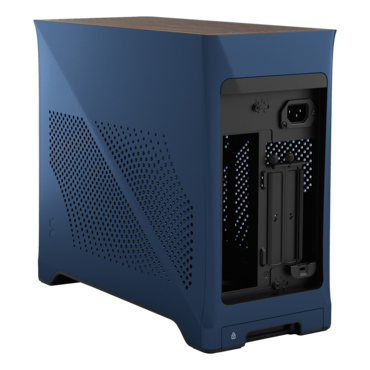

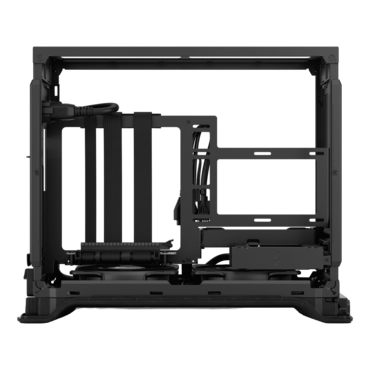

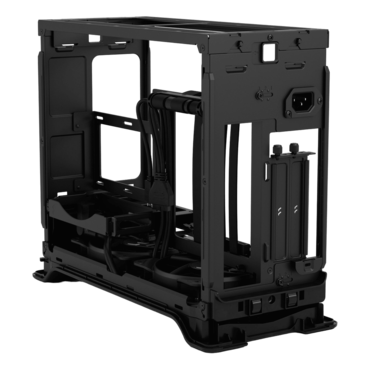

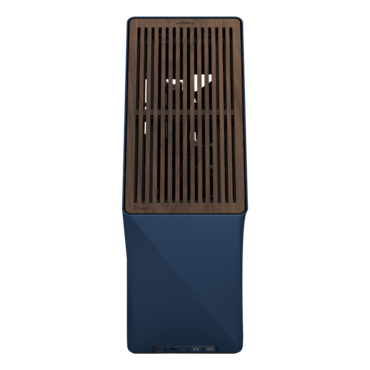

Era 2, No PSU, Mini-ITX, Midnight Blue, Mini Tower Case
Quantity:
- SKU: 18007842
- Manufacturer: Fractal Design
- MPN: FD-C-ERA2N-03
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$208.43
Era 2, No PSU, Mini-ITX, Midnight Blue, Mini Tower Case
Era 2 is an evolution of our iconic small form factor case — melding design innovation with engineering prowess.
| Specifications | |
| 3.5"/2.5" drive mounts | 0 total, 0 included |
| Dedicated 2.5" drive mounts | 4 total, 4 included (2 on motherboard wall) |
| 5.25” drive mounts | 0 total, 0 included |
| Expansion slots | 3 |
| Motherboard compatibility | ITX |
| Power supply type | SFX / SFX-L |

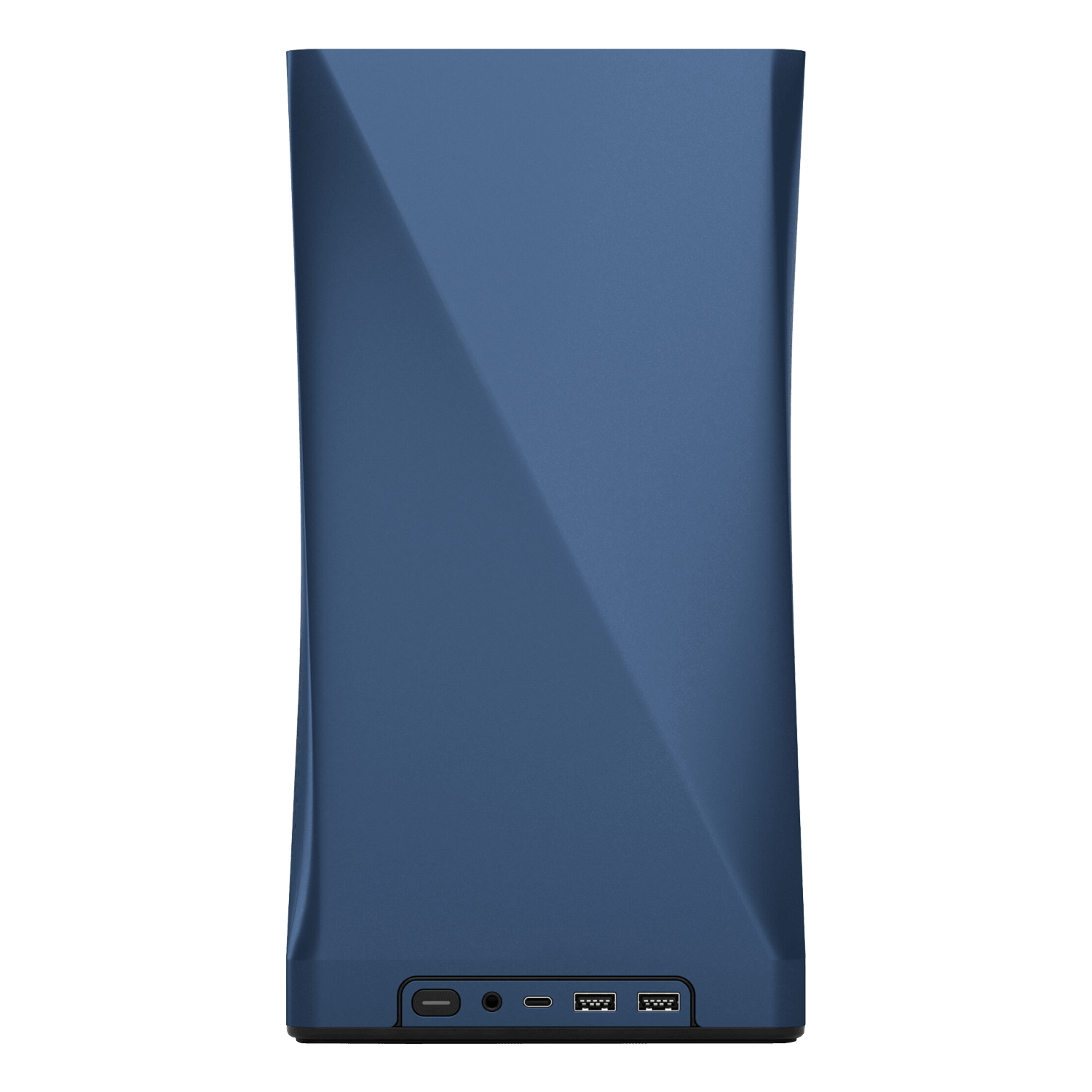

| Front interface | 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.0, Audio |
| Total fan mounts | 4 x 120 or 2 x 120 and 2 x 140 mm (2x120 mm Aspect PWM fans included) |
| Top fan | 2 x 120 mm or 2 x 140 |
| Bottom fan | 2 x 120 mm |
| Dust filters | Bottom |
| Top radiator | Up to 315 x 140 mm with total thickness ≤ 52 mm Up to 300 x 140 mm with total thickness ≤ 58 mm |
| GPU max length | 326 mm |
| GPU max Height | 137 mm |
| GPU max thickness | 48-63 mm (depending on motherboard wall position) |
| CPU cooler max height | 55-70 mm (depending on motherboard wall position) |
| Cable routing grommets | No |
| Fixed velcro straps | Yes (2 included) |
| Captive thumbscrews | PCI-e Blanks |
| Panels | Aluminum |
| SFF-Ready Enthusiast GeForce Cards | Yes |
| Other | |
| Case dimensions (LxWxH) | 366 x 165 x 314 mm |
| Case dimensions w/o feet/protrusions/screws | 365 x 165 x 314 mm |
| Net weight | 4,64 kg |
| Package dimensions (LxWxH) | 455 x 250 x 408 mm |
| Gross weight | 5.74 kg |
| Package contents | Case, Accessory Box, Designers Letter, Quick Start Note |
| Accessory box contents | SSD Screw x16, PSU Screw x4, Motherboard Screw x8, Zip Tie x4 |
| Product code | Era 2 Silver: FD-C-ERA2N-01 Era 2 Charcoal Gray: FD-C-ERA2N-02 Era 2 Midnight Blue: FD-C-ERA2N-03 |
| EAN | Era 2 Silver: 7340172705826 Era 2 Charcoal Gray: 7340172705833 Era 2 Midnight Blue: 7340172705840 |
| UPC | Era 2 Silver: 843276105822 Era 2 Charcoal Gray: 843276105839 Era 2 Midnight Blue: 843276105846 |
| JAN | Era 2 Silver: 843276105822 Era 2 Charcoal Gray: 843276105839 Era 2 Midnight Blue: 843276105846 |
