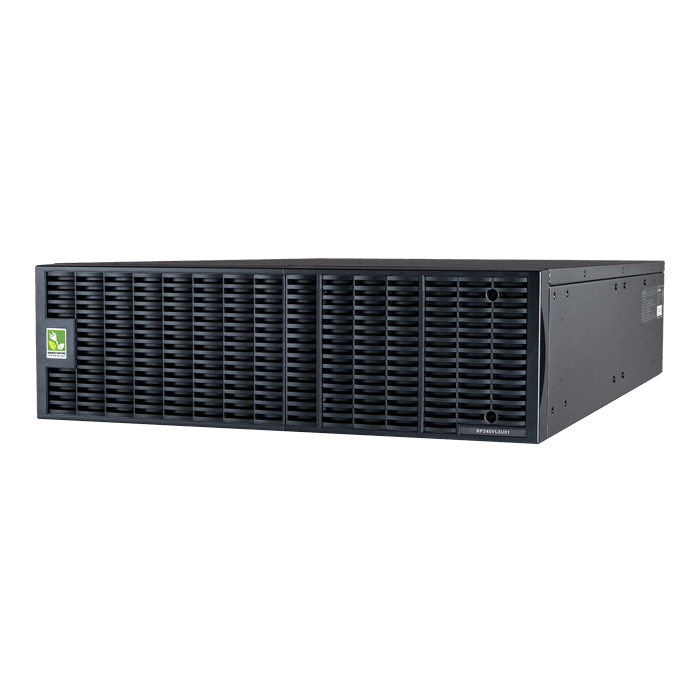

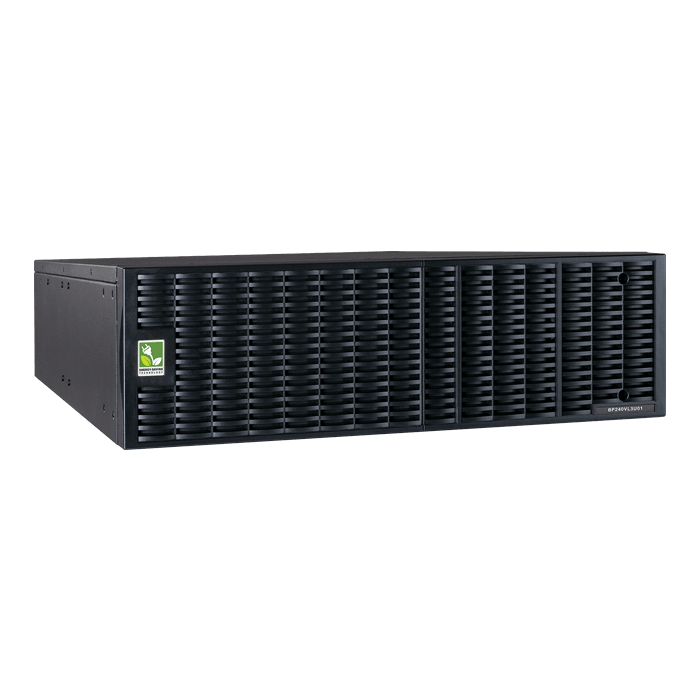

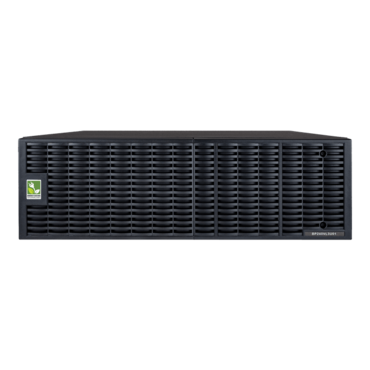

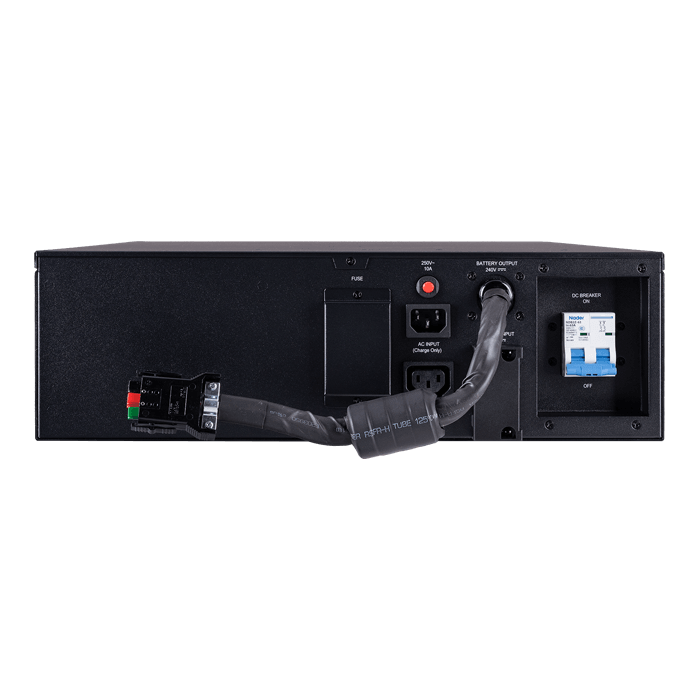

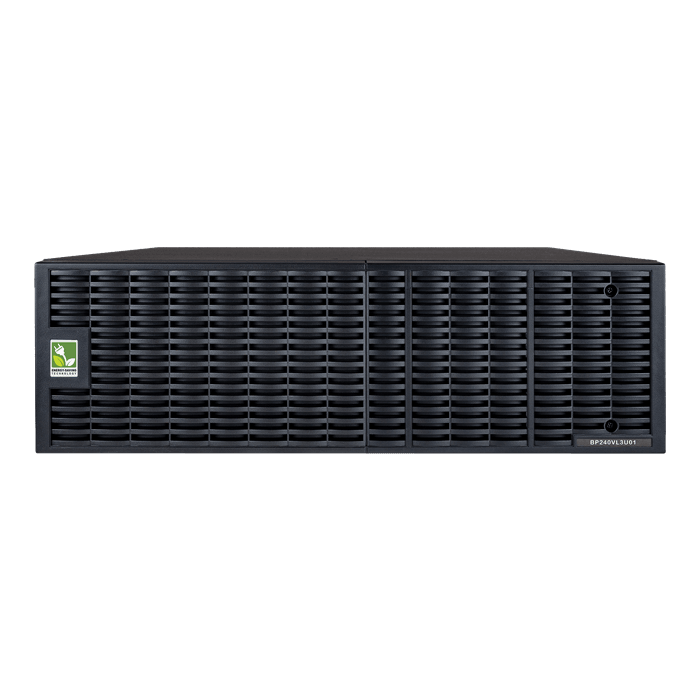

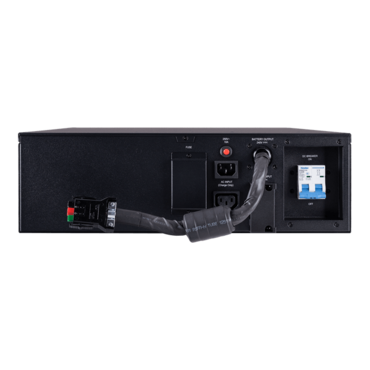

Extended Battery Module BP240VL3U01, 240V/30A, Black, Tower/3U Rackmount Battery Pack
- SKU: 12441455
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: BP240VL3U01
- Availability: TEMPORARILY OUT OF STOCK
The CyberPower BP240VL3U01 rack/tower convertible Extended Battery Module (EBM) extends UPS runtimes during power outages. Designed for select Smart App Online UPS systems, this EBM takes 3U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply from 0-90% in four hours. Up to ten EBMs can be connected in a daisy-chain to the UPS. The BP240VL3U01 typically has a UPS charging time of four hours regardless of whether one or ten EBMs are installed when Fast Charge is connected. The BP240VL3U01 is compatible with OL6KRT, OL6KRTF, OL8KRT, OL8KRTF, OL10KRT, OL10KRTF, and OL10KRTHW. With a three-year warranty, you can trust CyberPower’s commitment to the quality of the BP240VL3U01.
- Typical recharge time (0-90%): 4 hours
- Battery type & quantity: 12V/7AH (20)
- Form factor: Rack/Tower
- Hot swappable: Yes
- Fast Charge Technology: Yes
- Warranty: Three-year
| General | |
| Nominal Voltage | 240 V |
| Current Rating | 30 A |
| Battery | |
| Battery Quantity | 20 |
| Battery Size | 12 V/7 Ah |
| Battery Type | Sealed lead acid |
| Built-in Charger (Fast Charge) | Yes |
| Charger Input Voltage | 200 V to 240 V |
| Charger Max. Output Current | 1.5 A |
| Expansion Ready (daisy-chain) | Yes |
| Hot Swappable | Yes |
| Replaceable | Yes |
| Replacement Battery | (2) RB1270X10 |
| Typical Recharge Time* | 4 h (0% to 90%) |
| Physical | |
| Form Factor | Rack / Tower Convertible |
| Enclosure Construction | Steel |
| Rack Mounting Hardware | Included |
| Physical Dimensions | |
| Dimensions (WxHxD, in) | 17.05 x 5.2 x 26 |
| Dimensions (WxHxD, mm) | 433 x 132 x 660 |
| Weight (lb) | 167.2 |
| Weight (kg) | 76 |
| Rack Units | 3U |
| Max. Mounting Rail Depth (in) | 36.02 |
| Max. Mounting Rail Depth (mm) | 915 |
| Min. Mounting Rail Depth (in) | 20.47 |
| Min. Mounting Rail Depth (mm) | 520 |
| Shipping Dimensions | |
| Dimensions (WxHxD, in) | 23.62 x 14.76 x 35.43 |
| Dimensions (WxHxD, mm) | 600 x 375 x 900 |
| Weight (lb) | 204.6 |
| Weight (kg) | 92.8 |
| Environmental | |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Operating Relative Humidity | 0% to 90% non-condensing |
| Operating Elevation | 0 ft to 10,000 ft (0 m to 3,000 m) |
| Storage Temperature | -4 °F to 113 °F (-20 °C to 45 °C) |
| Storage Relative Humidity | 0% to 95% non-condensing |
| Storage Elevation | 0 ft to 50,000 ft (0 to 15,000 m) |
| Compatibility | |
| UPS Models |
OL6KRT OL6KRTF OL8KRT OL8KRTF OL10KRT OL10KRTF OL10KRTHW |
| Certifications | |
| Safety |
UL 1778 CSA C22.2 NO.107.3-05 FCC Part 15 Class A |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Extended 2-Year Warranty | WEXT5YR-BP5 |
| *Typical recharge time when unit has internal battery charger (Fast Charge Technology) connected and operating. | |
