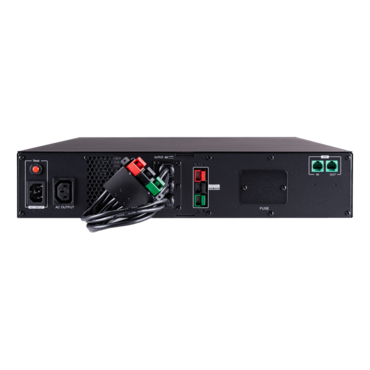

Extended Battery Module BP48VP2U02TAA, 48V/70A, Black, 2U Rackmount/Tower Battery Pack - TAA Compliant
Quantity:
- SKU: 13494049
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: BP48VP2U02TAA
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$859.95
- Output:48V/70A
- Recharge time:6 hours
- Battery type & quantity:12V/9AH (8)
- Weight:66.2 lbs.
- Form factor:Rack/Tower
- Hot swappable:Yes
- Warranty:3 year
| General | |
| Amperage | 70 A |
| DC Voltage | 48 VDC |
| Battery | |
| Battery Quantity | 8 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Built-in Charger | Yes |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290X4J |
| Replacement Battery Cartridge Quantity | 2 |
| Typical Recharge Time | 6 Hours |
| User Replaceable Battery | Yes |
| Input | |
| Input Frequency Range | 50 Hz – 60 Hz |
| Input Plug Type | IEC-320 C14 |
| Input Voltage Range | 100 VAC – 240 VAC |
| Output | |
| USB Charge Port | No |
| Physical | |
| Color | Black |
| Rack Height | 2U |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.43 x 8.64 x 50.04 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.1 x 3.4 x 19.7 (in) |
| Physical Dimensions – (WxHxD) (mm) | 434 x 86 x 500 (mm) |
| Physical Weight (kg) | 30.03 |
| Physical Weight (lb) | 66.2 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 11.0 |
| Shipping – Weight (lb) | 24.25 |
| Shipping Dimensions – (WxHxD) (cm) | 55.88 x 26.67 x 61.6 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 22.0 x 10.5 x 24.25 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 558.8 x 266.7 x 615.95 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety |
CE RCM UL1778 cUL FCC Class B VCCI |
| Warranty | |
| Extended Warranty Option | WEXT5YR-BP1 |
| Product Warranty | 3 Year Limited Warranty |
