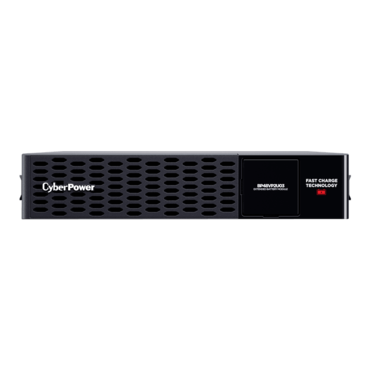

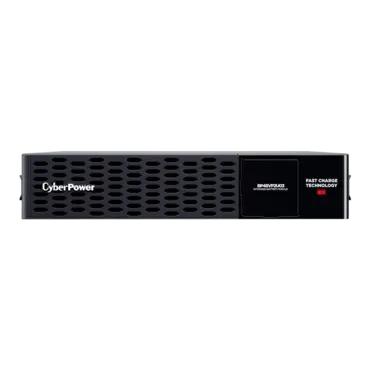

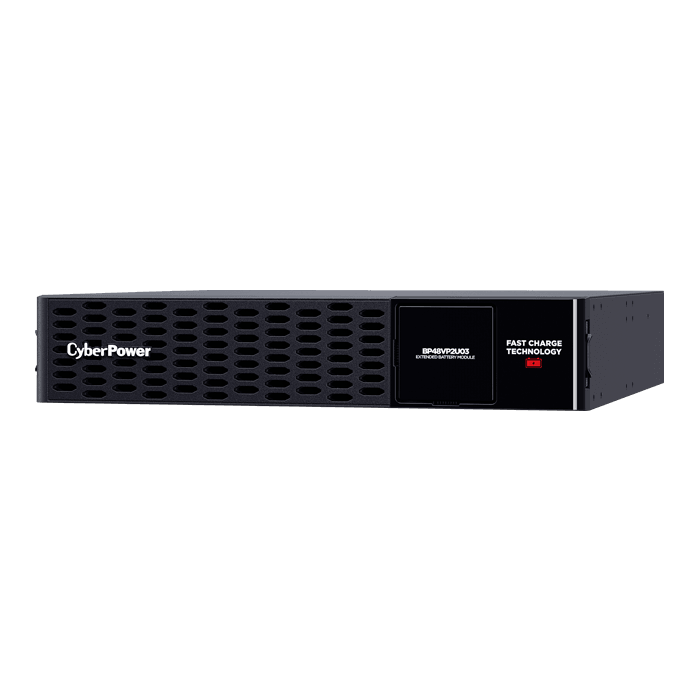

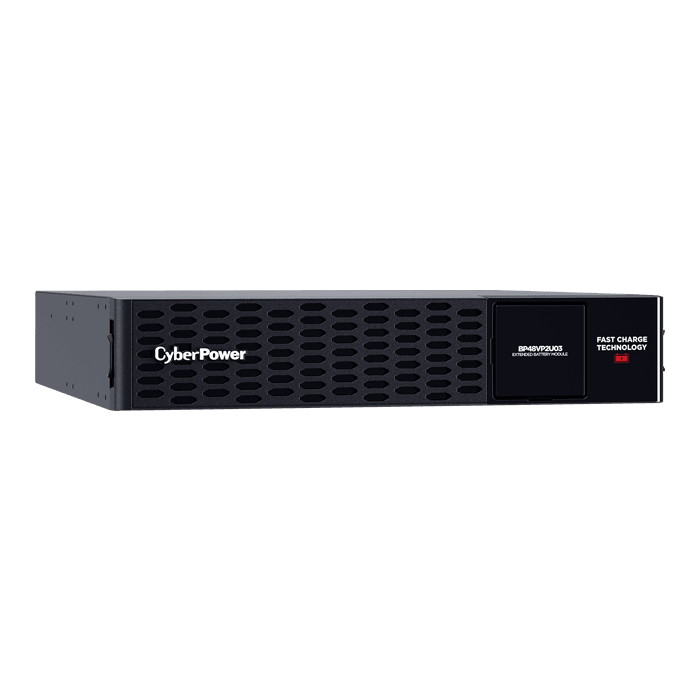

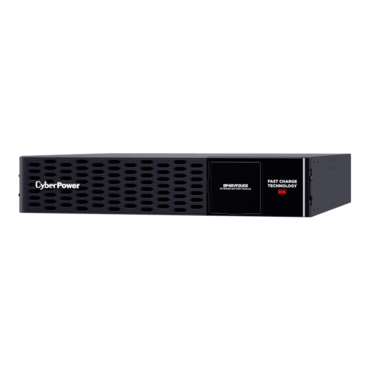

Extended Battery Module BP48VP2U03, 48V/70A, Black, Tower/2U Rackmount Battery Pack
Quantity:
- SKU: 13144638
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: BP48VP2U03
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$979.95
- Output: 48V/70A
- Recharge time: 6 hours
- Battery type & quantity: 12V/6Ah (16)
- Weight: 90.6 lbs.
- Form factor: Rack/Tower
- Hot swappable: Yes
- Warranty: 3 year
| General | |
| Amperage | 70A |
| DC Voltage | 48V |
| Battery | |
| Battery Quantity | 16 |
| Battery Size | 12V/6Ah |
| Battery Type | Sealed Lead-Acid |
| Built-in Charger | Yes |
| Hot Swappable | Yes |
| Replacement Battery | RB1260X8 |
| Replacement Battery Cartridge Quantity | 2 |
| Typical Recharge Time | 6 hours |
| User Replaceable | Yes |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.43 x 8.64 x 62.99 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.1 x 3.4 x 24.8 (in) |
| Physical Dimensions – (WxHxD) (mm) | 434 x 86 x 630 (mm) |
| Weight (kg) | 41.1 |
| Weight (lb) | 90.6 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 47.63 |
| Shipping – Weight (lb) | 105 |
| Shipping Dimensions – (WxHxD) (cm) | 57.91 x 27.43 x 76.2 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 22.8 x 10.8 x 30 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 579.12 x 274.32 x 762.0 (mm) |
| Input | |
| Input Frequency | 50/60 Hz |
| Input Voltage Range | 100-240Vac |
| Plug Type | IEC-320 C14 |
| Physical | |
| Color | Black |
| Rack Size | 2U |
| Environmental | |
| Maximum Operating Elevation | 10,000 ft (3,000 m) |
| Maximum Storage Elevation | 50,000 ft (15,000 m) |
| Operating Relative Humidity | 0 – 95% (non-condensing) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | CE, RCM, UL1778, cUL, FCC Class B, VCCI |
| Warranty | |
| Product Warranty | 3 Years Limited |
