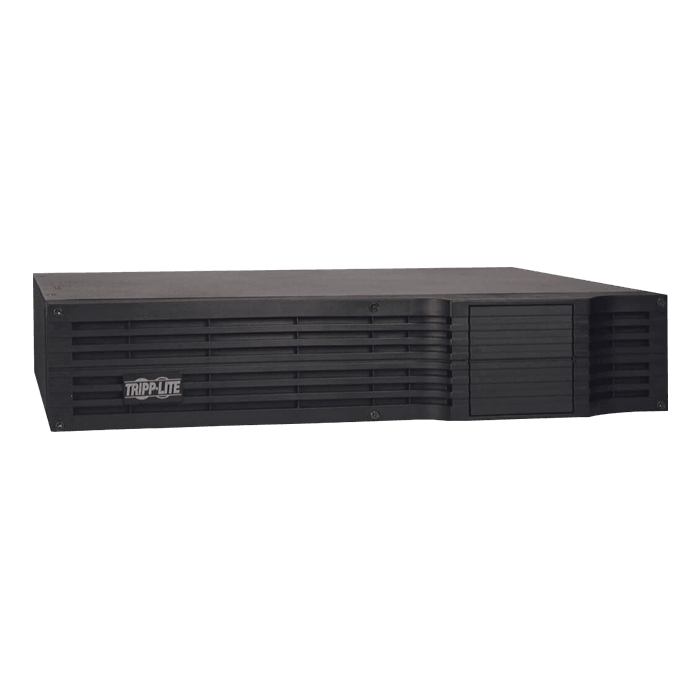

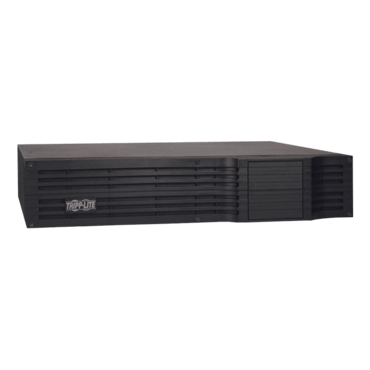

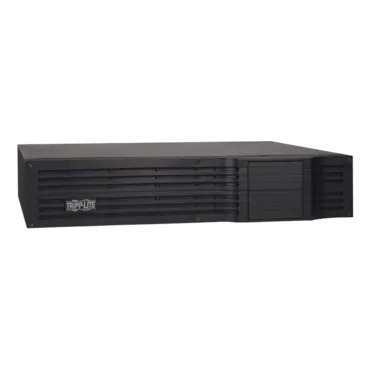

External 48V 2U Rack/Tower Battery Pack Enclosure + DC Cabling for select UPS Systems (BP48V24-2U)
BP48V24-2U rack/tower external battery pack offers extended battery runtime when used in conjunction with compatible Tripp Lite systems. Multi-use form factor supports configuration in stacking, upright tower and rackmount applications using only 2 rack spaces (2U).
BP48V24-2U
External Battery Pack for UPS System
Key Features:
- Extends runtime of select compatible Tripp Lite UPS Systems with 48VDC external battery connector
- Simple installation; 2U rackmount, tower and stack adaptable
- Lightweight battery module enables single-user maintenance
Features:
- Offers extended-run UPS operation when used in conjunction with compatible Tripp Lite UPS systems
- Supports stacking or rackmount installation using only 2 rack spaces (2U)
- Includes heavy gauge cabling with high current DC connectors for simple installation
- Multiple BP48V24-2U packs via 48VDCSPLITTER*
Overview:
BP48V24-2U rack/tower external battery pack offers extended battery runtime when used in conjunction with compatible Tripp Lite systems. Multi-use form factor supports configuration in stacking, upright tower and rackmount applications using only 2 rack spaces (2U). Includes heavy gauge cabling with high current DC connector for simple installation.
Compatible UPS Systems
SMART2200RMXL2U, SMART2600RM2U & SMART3000RM2U and other Tripp Lite UPS systems that specify the use of this battery pack.
Specifications:
BATTERY |
DC system voltage (VDC) |
48 |
Battery Pack Accessory (optional) |
48VDCSPLITTER (*Limit 2 BP48V24-2U with 48VDCSPLITTER) |
Connects to UPS via |
Attached cable with blue 175 amp male DC connector |
Typical battery lifespan |
4-6 years typical (North America) |
PHYSICAL |
Shipping weight (lbs) |
70 |
Shipping weight (kg) |
31.8 |
Unit Dimensions (HWD/in) |
3.5 x 17.5 x 13.5 |
Unit Dimensions (HWD/cm) |
8.9 x 44.5 x 34.3 |
Shipping Dimensions (HWD/in) |
7.25 x 23.5 x 18.5 |
Shipping Dimensions (HWD/cm) |
18.4 x 59.7 x 47 |
Unit weight (lbs) |
63 |
Unit weight (kg) |
28.6 |
Form factors supported |
2U rack/tower |
CERTIFICATIONS |
Certifications |
Tested to UL, cUL, CE, NOM |
WARRANTY |
Product Warranty Period (U.S. & Canada) |
2-year limited warranty |
Product Warranty Period (International) |
1-year limited warranty |
Product Warranty Period (Mexico) |
1-year limited warranty |
Product Warranty Period (Puerto Rico) |
1-year limited warranty |
Optional Coverage |
3 year, 5 year, next day and on-site warranty coverage available |
Typical Applications
- Ideal means of lengthening the battery runtime provided by compatible Tripp Lite UPS systems. Battery pack may be ordered at time of original UPS purchase or sourced at a later date to extend runtime performance if site power conditions deteriorate and longer battery runtime is desired.
Package Includes
- BP48V242U external battery pack
- Mounting hardware
- Warranty information
- Instruction manual
|
