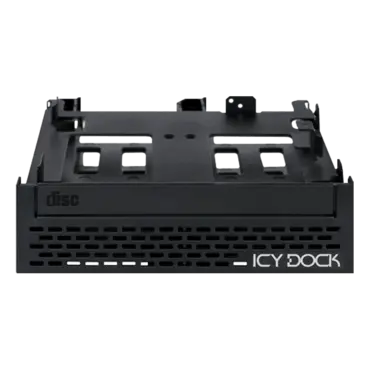

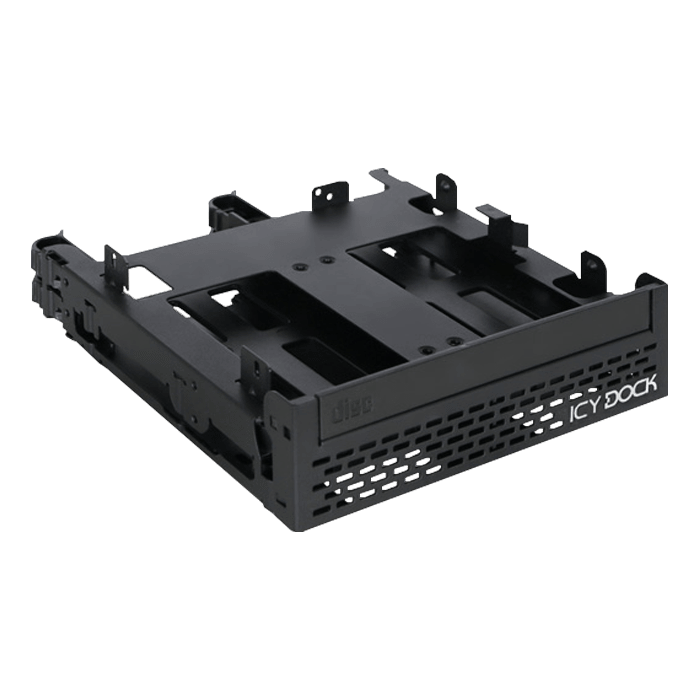

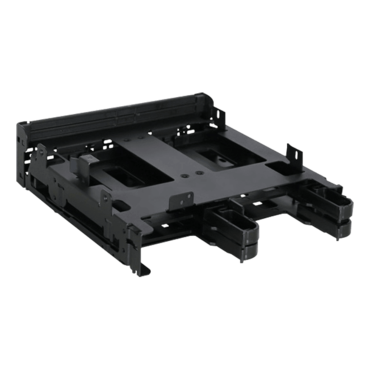

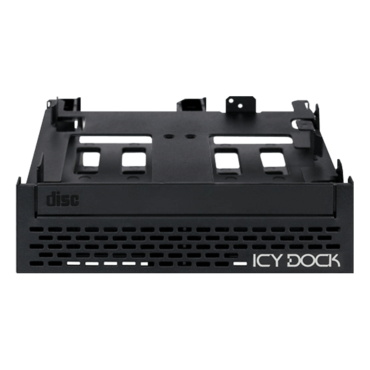

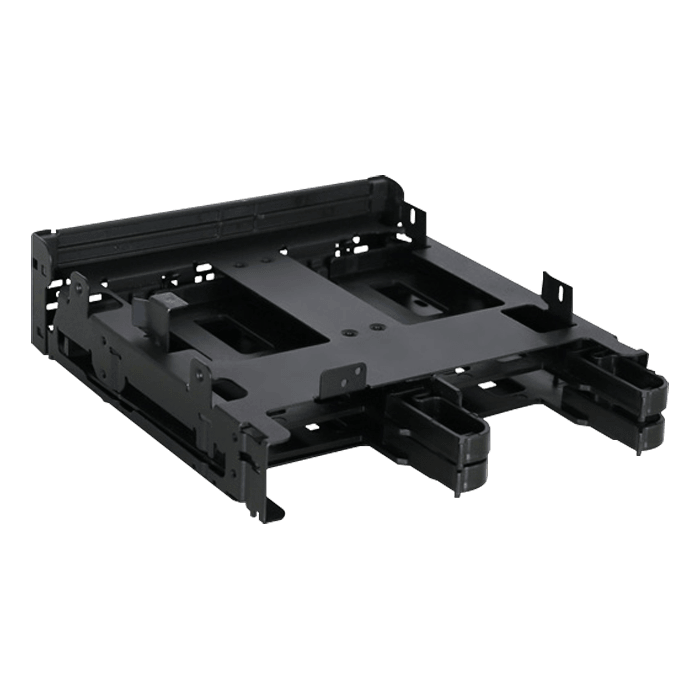

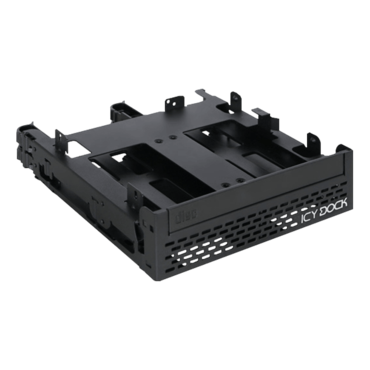

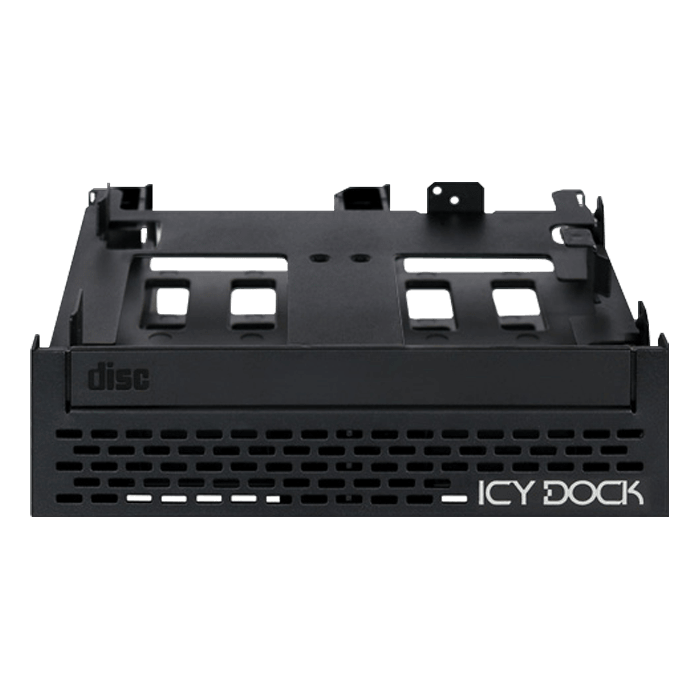

ICY DOCK FLEX-FIT Quinto MB344SPO. For computer cases that has limited 5.25” drive bay available, ICY DOCK FLEX-FIT Quinto MB344SPO creates flexibility for users who wish to install ODD and multiple 2.5” drives within an optical disk drive bay of their computer case. The FLEX-FIT MB344SPO mounting bracket supports up to 4x 2.5” HDDs or SSDs and a slim or ultra slim optical drive in a single external 5.25” ODD drive bay (DVD bay). For drive installation, the FLEX-FIT MB344SPO 2.5” drive caddies are equipped with unique built-in screws, which offer tool-less drive installation, and provide the ability for swapping the drives without removing the entire MB344SPO bracket. Also, the open frame full-metal chassis with sturdy ABS plastic caddies keeps your drives safe and cool. With an additional bonus, it comes with a well finished metal front faceplate that blends in to most system for a clean look. For ODD accommodation, the slim optical disk drive (ODD) bay can fit either a slim (12.7mm) or ultra-slim (9.5mm) optical drive, or any device in Slim / Ultra-Slim ODD form-factor. It is a simple device but can be create a lot of convenience for those who are in need!
Product Name |
FFLEX-FIT Quinto MB344SPO Tool-less 4x 2.5" SSD / HDD & Slim / Ultra-Slim ODD Bracket for 5.25” Bay |
Model Number | MB344SPO |
Color | Black |
Support Drive Size |
4 x 2.5" IDE/SATA/SAS HDD & SSD (7-9.5mm) 1 x Slim ODD(12.7mm) / 1 x Ultra Slim ODD (9.5mm) |
Compatible Drive Type | IDE/SATA/SAS |
Number of Drives | 4 |
Max ODD Height | 12.7mm |
Max Drive Height | 9.5mm |
Drive Bay | 1 x external half height 5.25" drive bay |
Structure / Material | Metal Chassis |
Product Dimension (L x W x H) | 145.8 x 41.3 x 167.7mm |
Product Net Weight | 364g |
Package Gross Weight | 455.7g |
Package contents | 1-Device, 1-User Manual, 20-Screws, 1- 6 Pin Slimline SATA to 15pin SATA power cable |
SATA Connector Insertion Rate | 10,000 |
Humidity | 5%~65% RH |
Opertating Temperature | 0°C to 60°C (32°F to 140°F) |
Storage Temperature | -35°C to 70°C (-31°F to 158°F) |
Compliance | CE, RoHS, REACH |
Warranty | 3 years |
