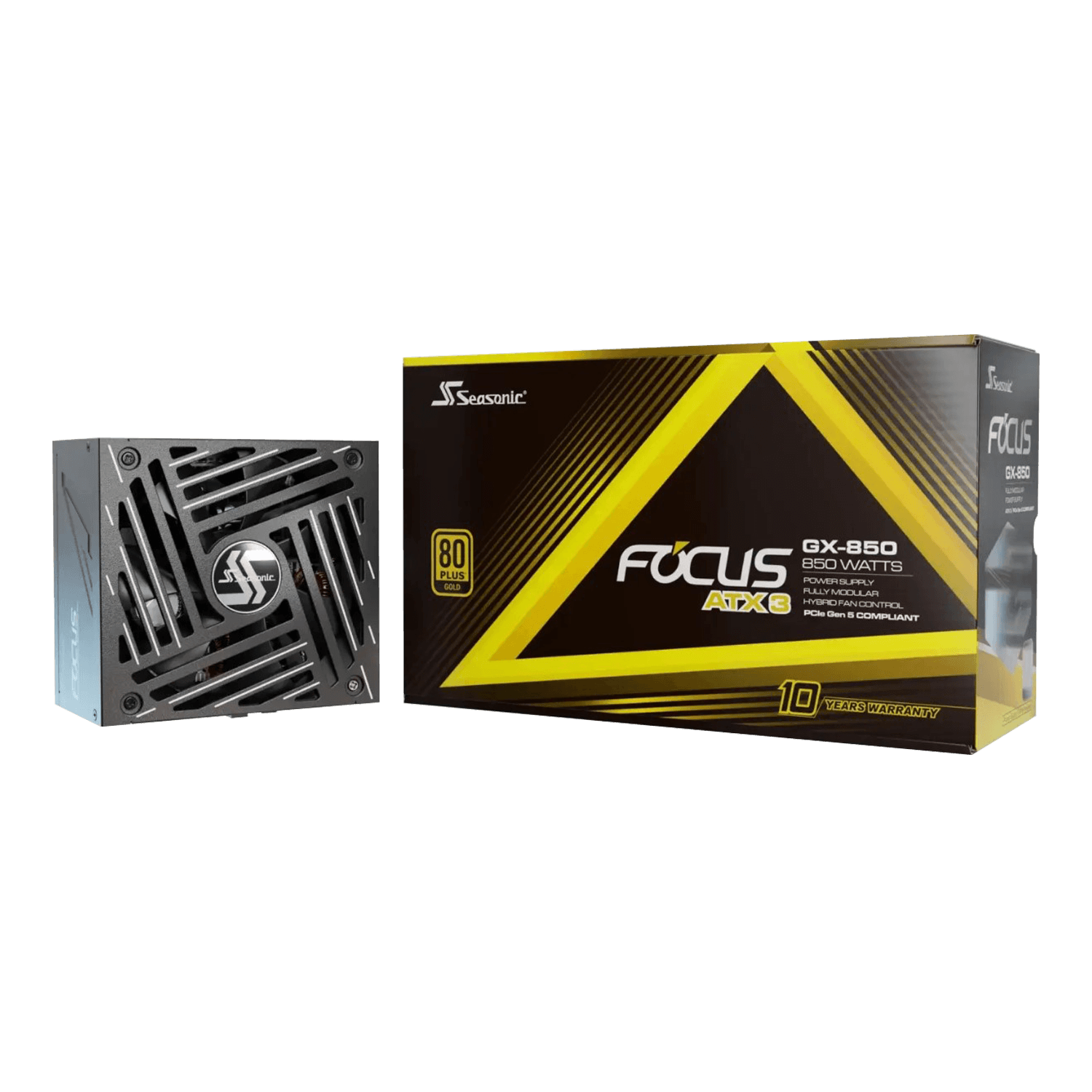

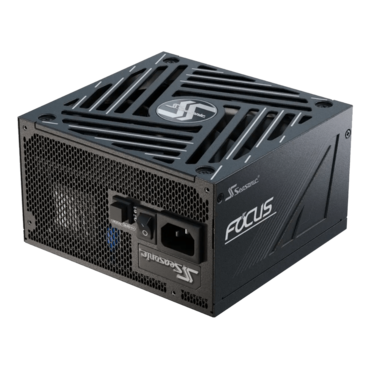

FOCUS GX 850 ATX 3.0 (2024), 80 PLUS Gold 850W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 18134476
- Manufacturer: SEASONIC
- MPN: FOCUS GX-850 (ATX3)
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$170.82
| 80PLUS® | Gold | ||||||||
| Cybenetics Efficiency Level | Gold | ||||||||
| Cybenetics Noise Level | TBA | ||||||||
| Form Factor | ATX/EPS | ||||||||
| Fan Size | 135 | ||||||||
| Fan Control | Digital Hybrid Fan Control | ||||||||
| Fan Bearing | Fluid Dynamic Bearing | ||||||||
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | ||||||||

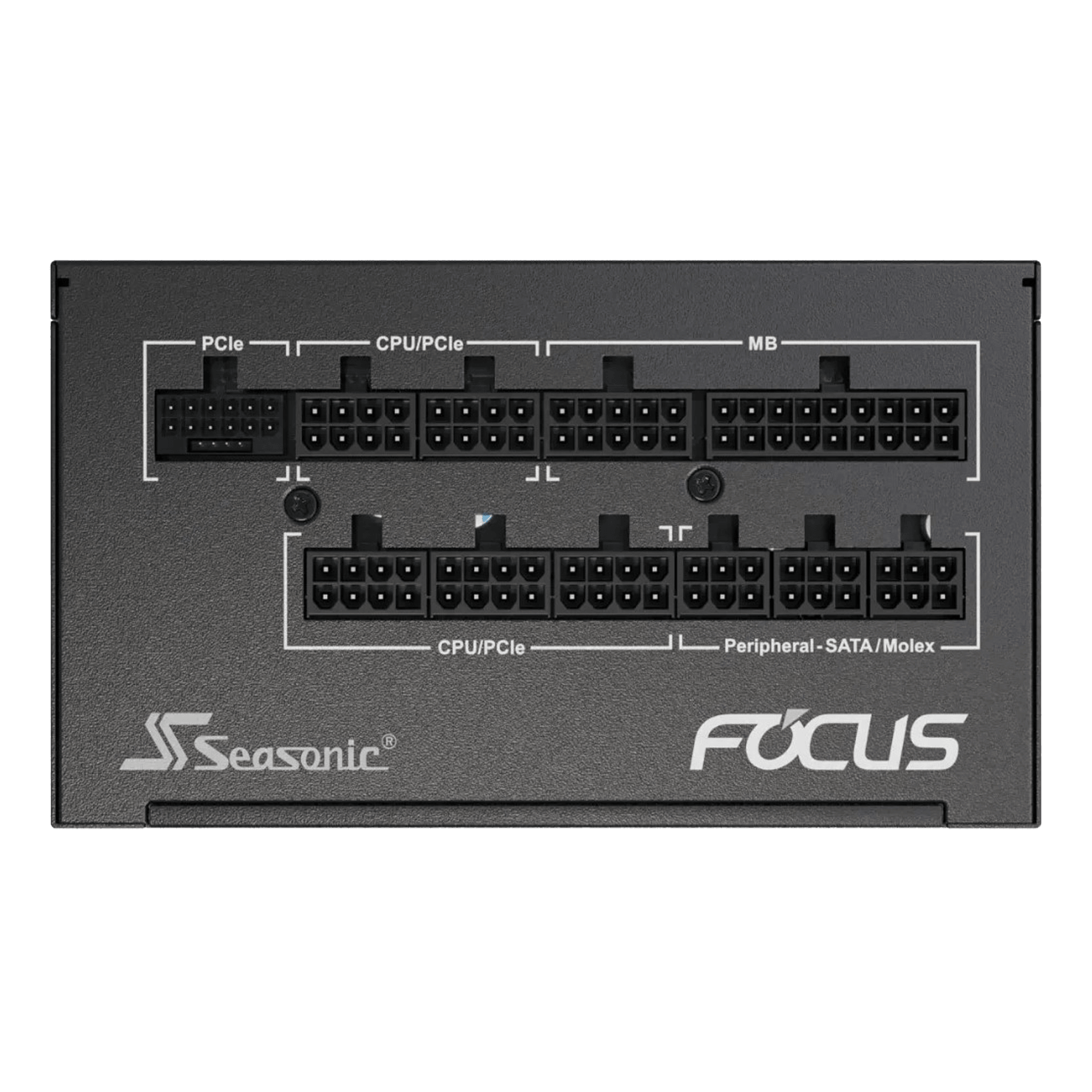

| Modularity | Fully Modular | ||||||||
| Operating Temperature | 0 - 50 °C | ||||||||
| MTBF @ 25 °C, excl. fan | 100,000 hours | ||||||||
| AC Input | Full Range | ||||||||
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | ||||||||
| Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE | ||||||||
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | ||||||||
| Warranty | 10 Years | ||||||||
| Power Output | |||||||||
| AC Input | 100 V - 240 V | ||||||||
| 10 - 5 A | |||||||||
| 50 Hz - 60 Hz | |||||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB | |||
| Maximum Power | 20 A | 20 A | 62 A | 0.3 A | 3 A | ||||
| 100 W | 840 W | 3.6 W | 15 W | ||||||
| Total continuous power | 850 W | ||||||||
