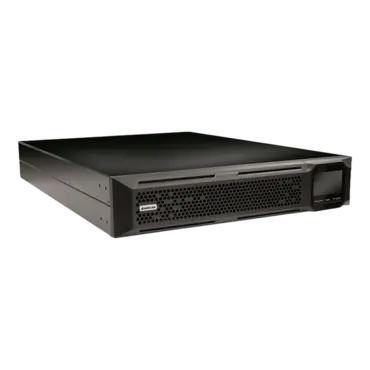

GBB3000N, LCD, 3000 VA/2850 W, Sine Wave, 2U Rackmount/Tower UPS - TAA Compliant
Quantity:
- SKU: 18306469
- Manufacturer: IOGEAR
- MPN: GBB3000N
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$1,505.66
| UPS Topology | On-Line (Double Conversion) |
| Energy Saving | >96%(ECO), >91%(AC), >90%(Batt) |
| Network Interface | SNMP Card |
| Input | |
| Voltage | 100/110/115/120V |
| Voltage Range | 80-150 VAC ± 5%@ 100% load, 55-150 VAC ± 5%@ 50% load, Derate capacity to 80% when the output voltage is adjusted to 100VAC |
| Frequency Range | 40 Hz ~ 70 Hz |
| Cold Start | Yes |
| Plug Type | NEMA L5-130 |
| Power Factor | ≧ 0.99 @ nominal voltage (100% load) |
| Cord Length | 6 ft. |
| Output | |
| Volt Amp Capacity (VA) | 3000 |
| Output Watt Capacity (Watts) | 2850 |
| Rated Power Factor | 0.96 |
| On Battery Waveform | Sine Wave |
| On Battery Frequency | 50/60Hz +/- 3 Hz |
| Outlets | 7 |
| Outlet Types - Battery & Surge Protected | 7 x NEMA5-20R + 1x NEMA L5-30R |
| Crest Factor | 3:1 |
| Harmonic Distortion | ≦ 2 % THDv(Linear Load), ≦ 4 % THDv (Non-linear Load) |
| Voltage Regulation | ± 1%(Batt) |
| Transfer Time (AC to Battery) | 0ms |
| Transfer Time (Inverter to Bypass) | 4ms(ECO) |
| Battery | |
| Runtime at Half Load (min) | 2.96 |
| Runtime at Full Load (min) | 10.1 |
| Battery Type | Sealed Lead-Acid |
| Battery Pack Voltage | 72V |
| Battery Quantity | 6 |
| Hot-Swappable | Yes |
| Typical Recharge Time | 3 hours recover to 95% capacity @2A charging current., Max charger current 8A |
| Extended Battery Module | GBP72V18AH |
| Environment | |
| Operation Temperature | 0 ? 40 °C(32 ? 104 °F) |
| Storage Temperature | -20 ? 50 °C(-4 ? 122 °F) |
| Humidity | 20-90% RH / 10% to 95% (no condensing) |
| Certification | UL FCC |
| Unit Dimensions | |
| Height | 3.5 in. (8.9 cm) |
| Length | 24.75 in. (62.8 cm) |
| Width | 17.3 in. (44 cm) |
| Master Carton | |
| Height | 9.75 in. (24.8 cm) |
| Length | 29.5 in. (74.9 cm) |
| Width | 23.5 in. (59.7 cm) |
| Master Carton Qty. | 1 |
| Weight | |
| Master Carton Wt. | 76.3 lb. |
| Unit Wt. | 65 lb. (29.5 kg) |
