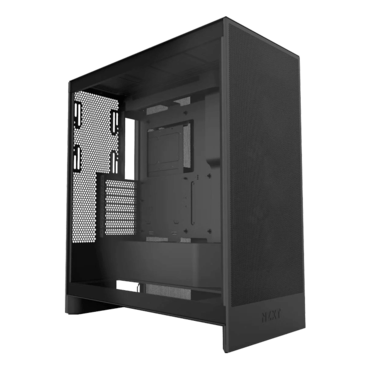

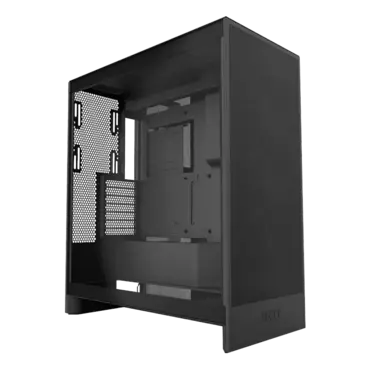

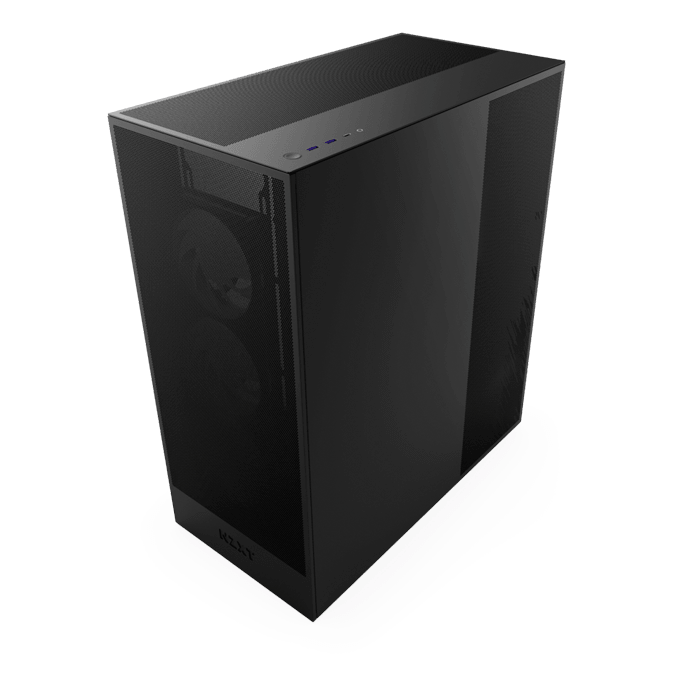

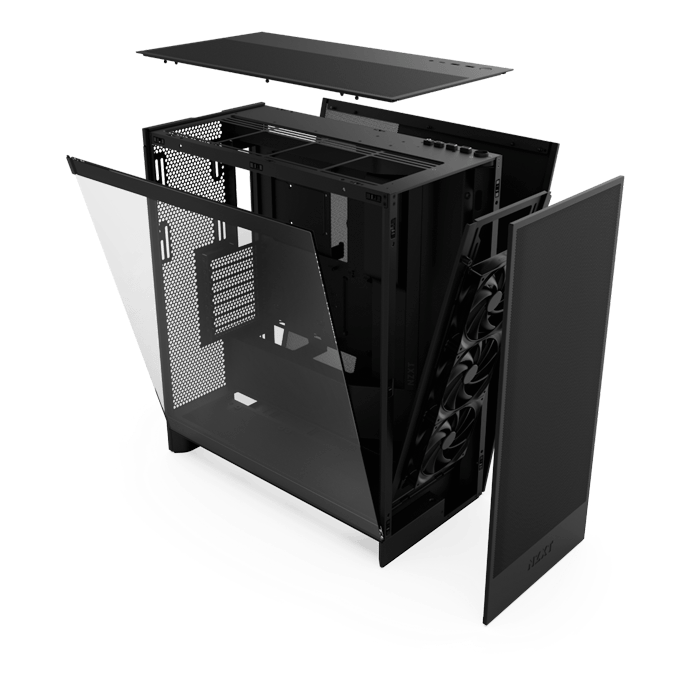

H7 Flow (2024), Tempered Glass, No PSU, E-ATX, Black, Mid Tower Case
Quantity:
- SKU: 17840197
- Manufacturer: NZXT
- MPN: CM-H72FB-01
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$212.73
| Key Specs | |
| Motherboard Support: | E-ATX (Up to 27.7mm), ATX, Micro-ATX, Mini-ITX |
| Enclosure Type: | Mid-Tower |
| Case Material: | SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black) |
| Dimensions | |
| Height (with feet): | 544 mm |
| Width: | 244 mm |
| Depth: | 468 mm |
| Weight: | 11.13 kg |
| Compatibility & Clearance | |
| CPU Cooler Height: | Up to 185 mm |
| GPU Length: | Up to 410 mm |
| PSU Length: | Up to 200 mm |
| Cable Management: | Up to 34.5 mm |
| Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness: | Up to 57 mm |
| Front I/O Ports | |
| USB 3.2 Gen 1 Type-A: | 2 |
| USB 3.2 Gen 2 Type-C: | 1 |
| Headset Audio Jack: | 1 |
| Expansion Slots | |
| Standard: | 7 |
| Vertical: | 0 |
| Drive Bays | |
| 2.5": | 2+2 |
| 3.5": | 2 |
| Fan Support | |
| Front: | 3 x 120 mm / 3 x 140 mm (3 x F120Q included) |
| Top: | 3 x 120 mm / 2 x 140 mm |
| Rear: | 1 x 120 mm / 1 x 140 mm |
| Filters: | High-Performance Mesh |
| Radiator Support | |
| Front: | Up to 420 mm |
| Top: | Up to 360mm |
| Rear: | Up to 140mm |
| Fan Specs | |
| Model: | F120Q Airflow Fan (Case Version) |
| Speed: | 1,350 ± 150 RPM |
| Airflow: | 60.2 CFM |
| Static: | 1.05 mm - H2O |
| Noise: | 24.1 dBA |
| Fan Connector: | 3-pin |
| General | |
| Warranty: | 2 Years |
| Model Number: | CM-H72FB-01 (Black) / CM-H72FW-01 (White) |
| UPC: | 810074845557 (Black) / 810074845564 (White) |
| EAN: | 5056547205502 (Black) / 5056547205519 (White) |
