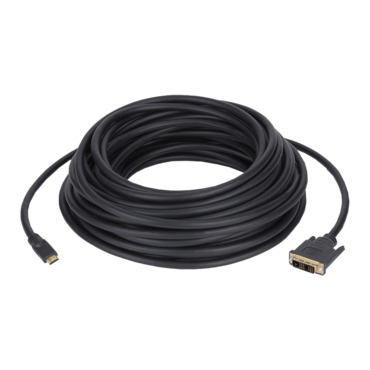

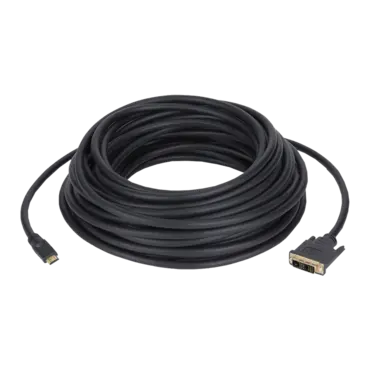

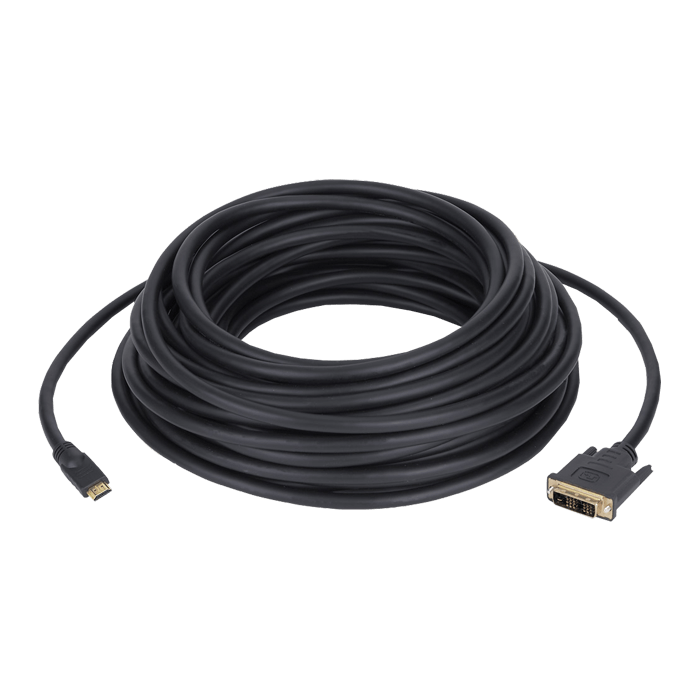

HDMI DVI-D 12' (3.6 m) Standard Speed HDMI to DVI-D Cable
Quantity:
- SKU: 10225727
- Manufacturer: Extron Electronics
- MPN: 26-614-03
- Availability: LOW STOCK
Starting At
$41.40
- Standard Speed HDMI to DVI-D cables
- 1080p/60 verified
-
Exceeds HDMI Standard Speed Cable Specifications:
- Supports resolutions up to 1920x1200 @ 60 Hz and 1080p/60 to 50 feet without a cable equalizer
- Data rates to 4.95 Gbps
- Refresh rates to 60 Hz
- Color depth to 24 bits - 8 bits per color - Available in lengths from 3 feet to 50 feet (0.9 m to 15.2 m)
-
For cable lengths up to 12 feet:
- 28 AWG copper wire construction -
For cable lengths 25 feet and longer:
- 24 AWG copper wire construction - Gold-plated contacts
- NEC CL2 rated
| Performance/electrical | |
| Standards | DVI 1.0 |
| Data rate | Supports up to 4.95 Gbps |
| Maximum resolution | 1920x1200 @ 60 Hz |
| Vertical frequency | Supports up to 60 Hz |
| Regulatory compliance | |
| Safety | UL CL2 |
| Temperature rating |
Minimum: -25 °C Maximum: 75 °C |
| Voltage | 30 V |
| Pair impedance | 100 ohms ±10 ohms |
| Attenuation | At 0.825: <10 dB per 10 m |
| Skew | |
| Intrapair | ≤151 ps per 5 m |
| Interpair | ≤2.42 ns per 5 m |
| General — physical characteristics | |
| Connector type | 1 male DVI-D single link to 1 male HDMI single link |
| Contacts | Gold plated |
| Material |
Conductors: silver coated, tinned copper Drain wire: tinned copper Jacket: PVC |
| Conductor gauge | Conductors and drain wire: 28 AWG |
| Connector dimensions | |
| HDMI |
1.81" L* x 0.77" W x 0.41" thick (46.0 mm L* x 19.5 mm W x 10.5 mm thick) *Length includes plug. |
| DVI-D |
2.12" L* x 1.52" W x 0.62" thick (53.8 mm L* x 38.7 mm W x 15.8 mm thick) *Length includes plug. |
| Cable outer diameter | 0.29" (7.3 mm) |
| Bend radius | 4.20" (106.0 mm) |
