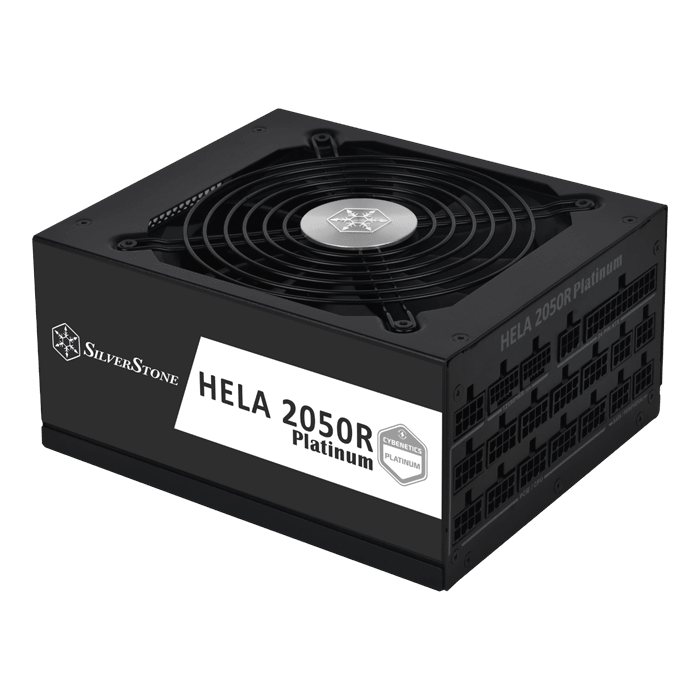

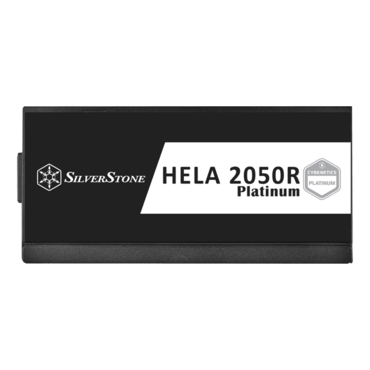

HELA 2050R, 80 PLUS Platinum 2050W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 17785563
- Manufacturer: SILVERSTONE
- MPN: SST-HA2050R-PM
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$542.79
HELA 2050R, 80 PLUS Platinum 2050W, Fully Modular, ATX Power Supply
HELA 2050R Platinum features a sophisticated built-in intelligent fan controller, powered by a microcontroller unit (MCU). This controller ensures whisper-quiet operation during idle or low-powered computing tasks, seamlessly transitioning to maximum cooling efficiency under stress and maximum load
- Supports 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard
- High efficiency with Cybenetics Platinum certification

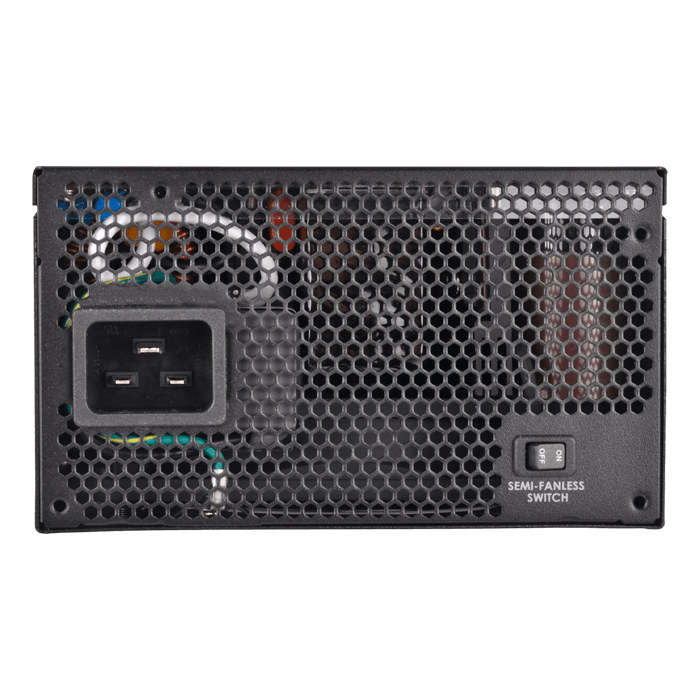

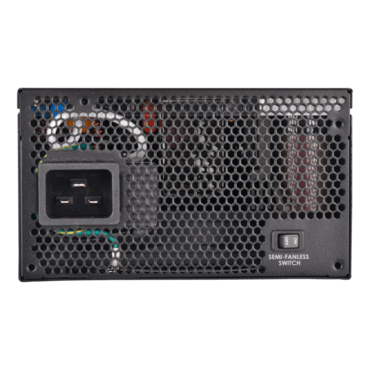

- Built-in MCU semi-fanless mode to achieve optimized cooling performance
- 2050W continuous power output rated for 24/7 operation

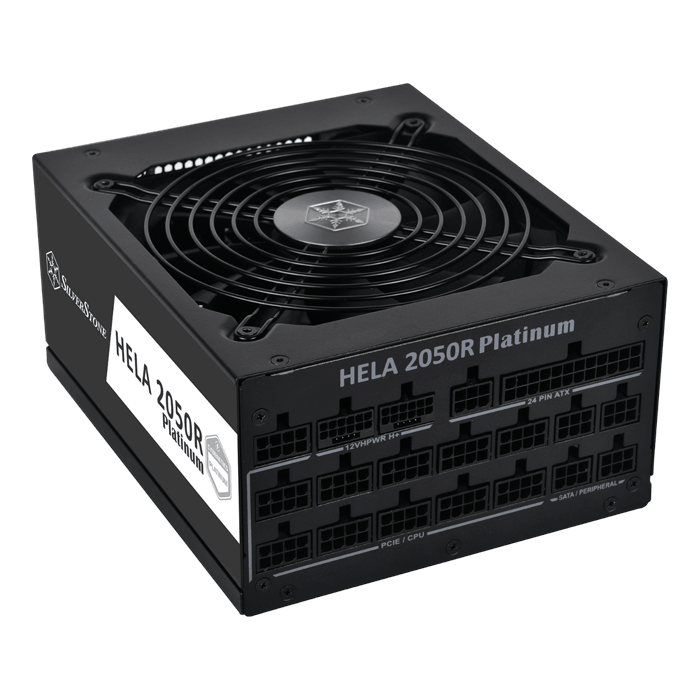

- Fully modular design with SilverStone’s 3rd generation modular interface
- 2 x native 12VHPWR connector on modular interface with 3 x 12VHPWR cable included

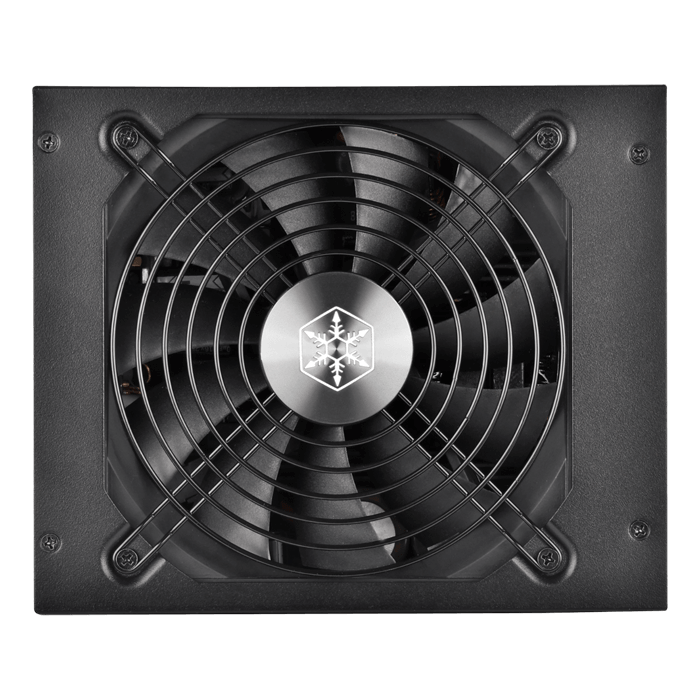

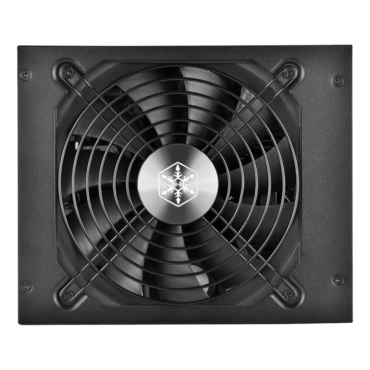

- Silent running 135mm dual-ball bearing fan with advanced semi-fanless operation
| Product No. | SST-HA2050R-PM | ||||
| Model (safety certification) | SST-AX2050MCPT-C | ||||
| Color | Black (lead-free paint) | ||||
| Max. DC Output | 2050W | ||||
| Power density | 882W/L | ||||
| Load Range | |||||
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
| Max.(Amps) | 25A | 22A | 170A | 3.0A | 0.3A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±5% | ±5% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 30mV | 30mV | 60mV | 30mV | 60mV |
| Combined +3.3V & +5V | 120W | ||||
| Combined +12V | 2040W | ||||
| Input Voltage | 2050W: 200~240 Vrms 1650W: 103 ~ 264 Vrms 1350W: 90~264 Vrms |
||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||
| PFC | Active PFC(PF>0.95 at full load) | ||||
| Efficiency | 89% ~ 91% overall efficiency | ||||
| MTBF | 100,000 hours | ||||
| Operating temperature | 0°C ~ 50°C | ||||
| Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection |
||||

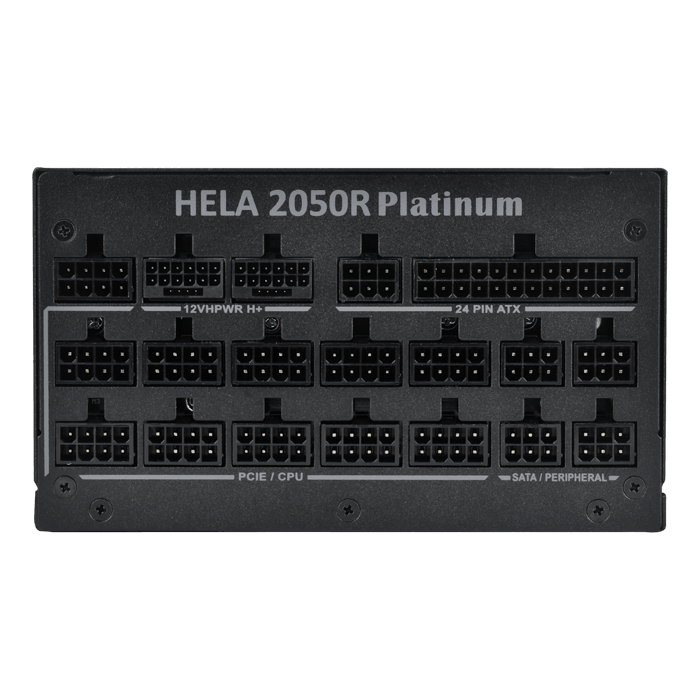

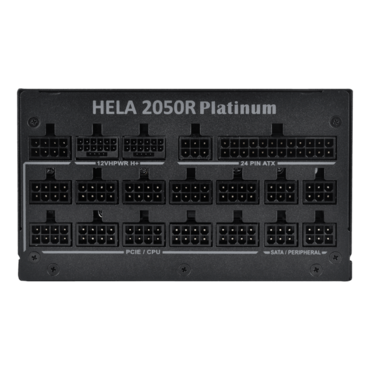

| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 14 x 8 / 6-Pin PCIe connectors 3 x 12+4-Pin 12VHPWR connector 12 x SATA connector 3 x 4-Pin Peripheral connector 1 x 4-Pin Floppy adapter connector |
||||

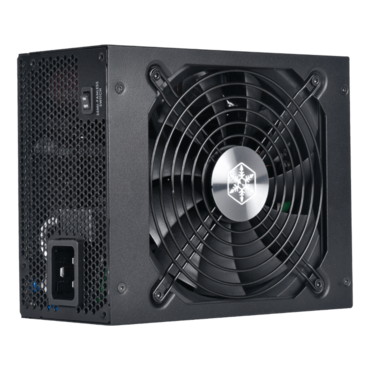

| Cooling System | 135mm dual-ball bearing fan | ||||
| Noise Level | 0 dBA minimum | ||||
| Certification | Cybenetics Platinum | ||||
| Form factor | ATX (PS2) | ||||
| Dimension | 150mm (W) x 86mm (H) x 180mm (D) 5.91" (W) x 3.39" (H) x 7.09" (D) |
||||
| Weight | 4.34 kg | ||||
