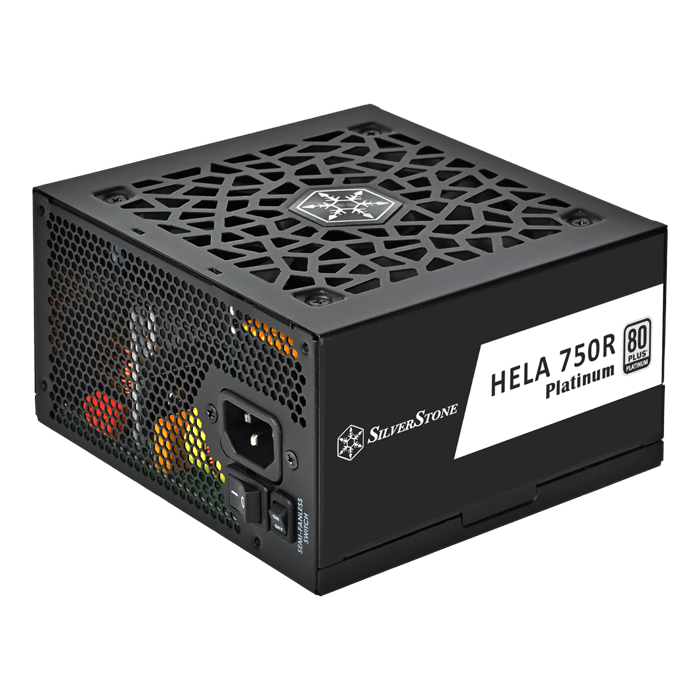

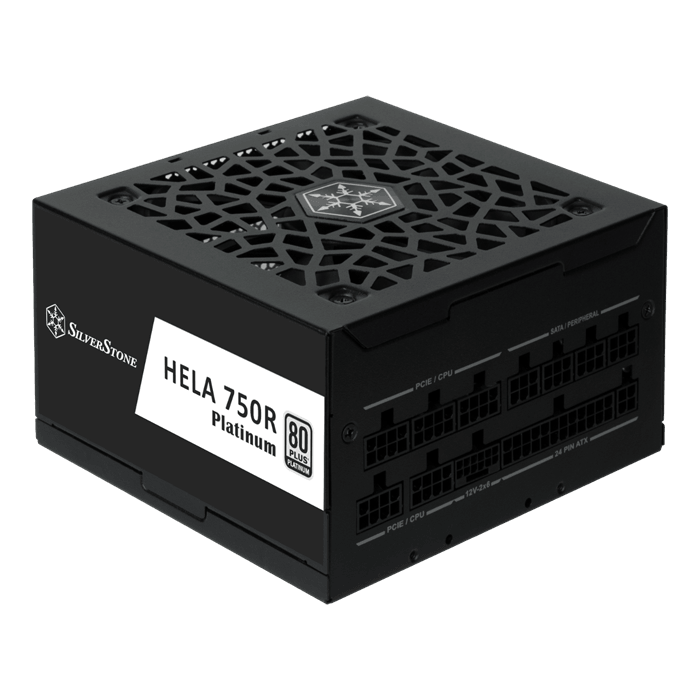

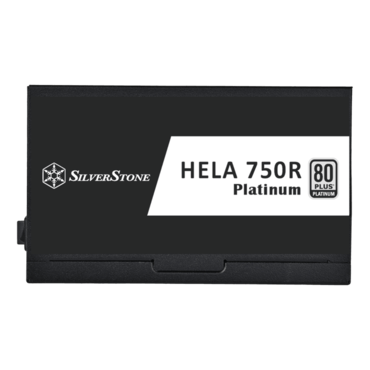

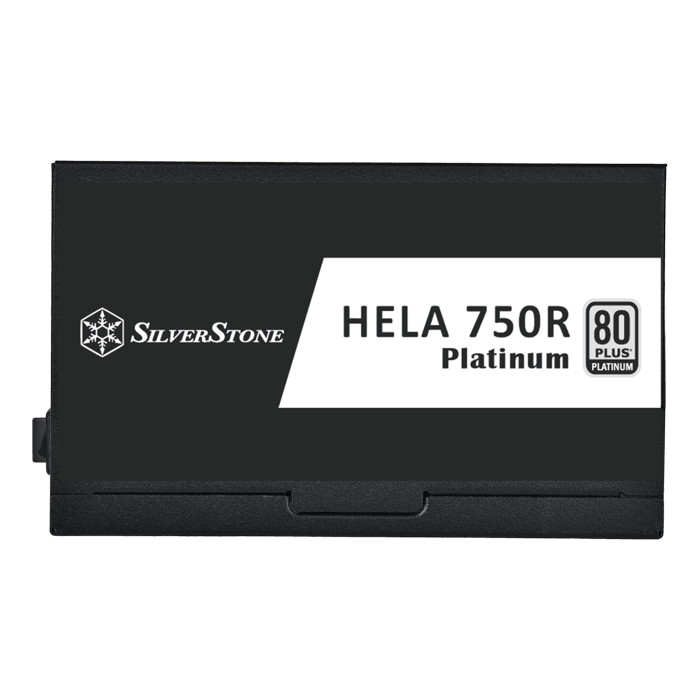

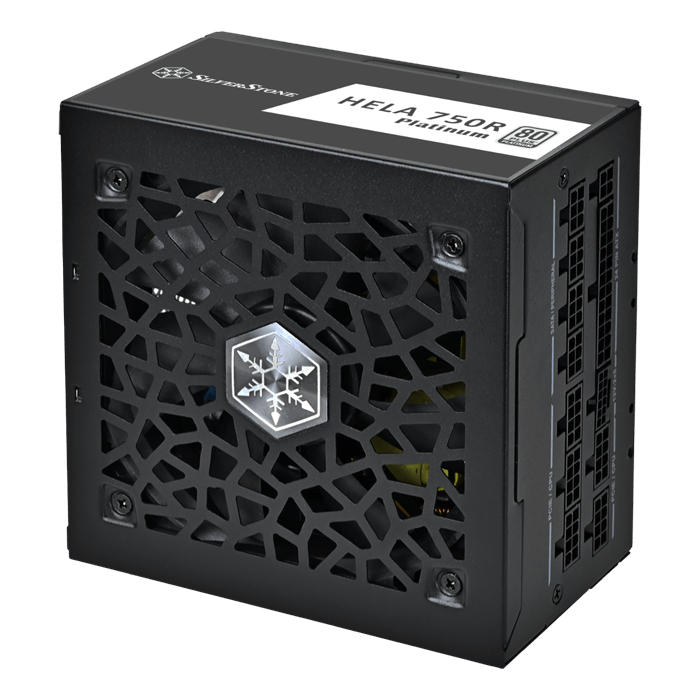

HELA 750R, 80 PLUS Platinum 750W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 17785690
- Manufacturer: SILVERSTONE
- MPN: SST-HA750R-PM
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$167.90
- Support 12V-2x6 PCIe connector in compliance with ATX 3.1 standards.
- High efficiency with 80 PLUS Platinum certification
- 100% modular cables
- 24/7 continuous power output with 50? operating temperature
- All Japanese electrolytic capacitors

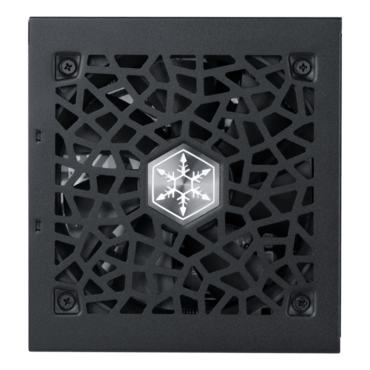

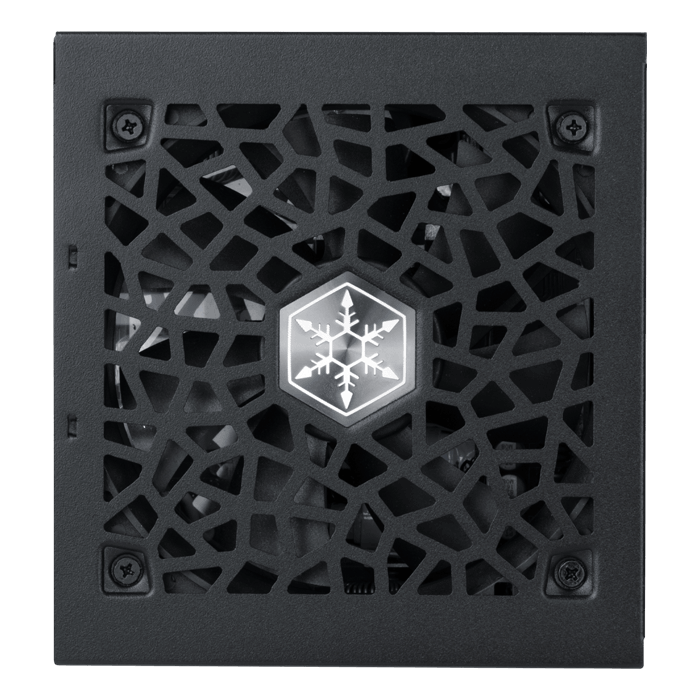

- Silent running 120mm Fluid Dynamic Bearing (FDB) cooling fan

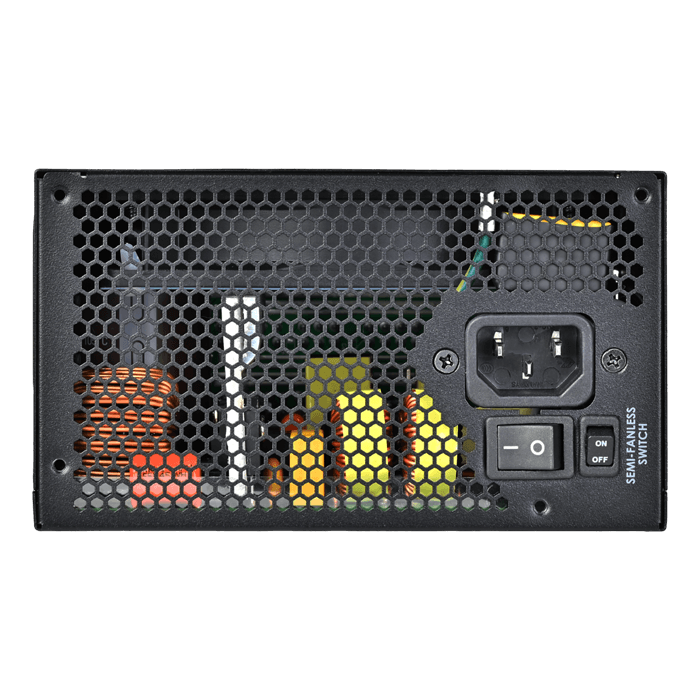

- Equipped with sem-fanless switch function
- 180° angled SATA connectors, ideal for systems with a parallel hard drive layout.
| Product No. | SST-HA750R-PM | ||||
| Model (safety certification) | SST-AX0750MCPT-C | ||||
| Color | Black (lead-free paint) | ||||
| Max. DC Output | 750W | ||||
| Power density | 412W/L | ||||
| Load Range | |||||
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
| Max.(Amps) | 20A | 20A | 62.5A | 2.5A | 0.3A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±5% | ±5% | +5~-7% | ±5% | ±5% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 120mV |
| Combined +3.3V & +5V | 100W | ||||
| Combined +12V | 750W | ||||
| Input Voltage | 90 ~ 264 Vrms | ||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||
| PFC | Active PFC(PF>0.9 at full load) | ||||
| Efficiency | 89% ~ 91% overall efficiency | ||||
| MTBF | 100,000 hours | ||||
| Operating temperature | 0°C ~ 50°C | ||||
| Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection |
||||

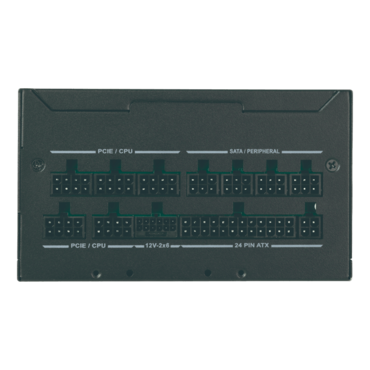

| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8-Pin EPS / ATX 12V connector 4 x 8 / 6-Pin PCIe connectors 1 x 12+4-Pin 12VHPWR connector 12 x SATA connector 3 x 4-Pin Peripheral connector 1 x 4-Pin Floppy adapter connector |
||||
| Cooling System | 120mm Fluid Dynamic Bearing fan | ||||
| Noise Level | 0 dBA minimum | ||||
| Certification | 80 PLUS Platinum | ||||
| Form factor | ATX (PS2) | ||||
| Dimension | 150mm (W) x 86mm (H) x 140mm (D) 5.9” (W) x 3.39” (H) x 5.51” (D) |
||||
