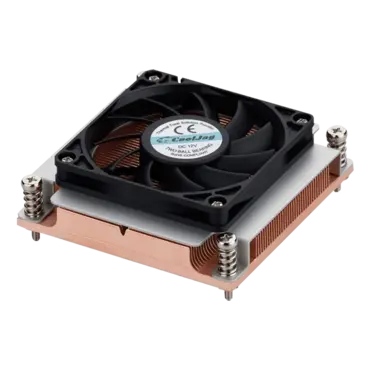

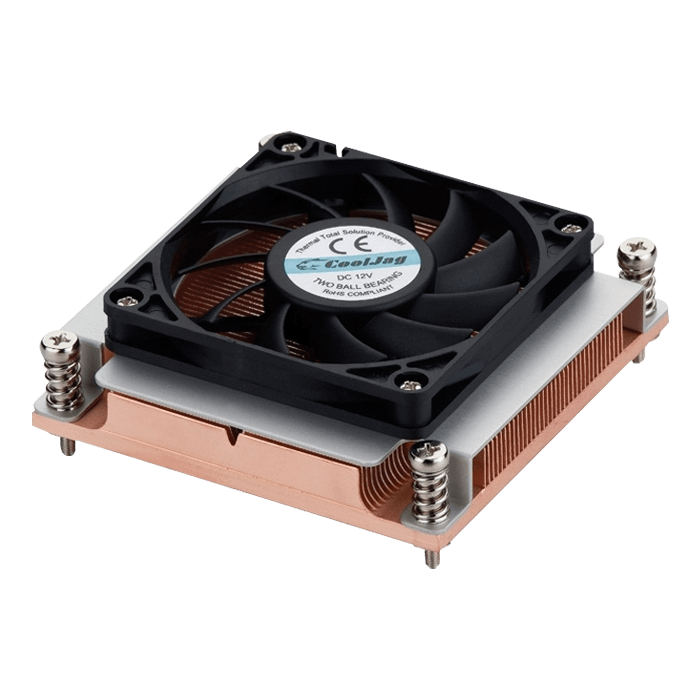

Model # ITO-A << Square Type 80mm mounting pitch >>
- Application : For Intel® Xeon® E5-4600, E5-2600 & E5-1600 Series & Core i7 Socket 2011
- Dimensions : 90 mm (L) x 90 mm (W) x 25.9 mm (H)
- Materials : Copper
- Weight: 485 g
- PWM Function: YES
- Thermal Grease: Shin-Etsu 7762 pre-applied
Fan size | 70x70x10mm |
Fan voltage | 12V |
Bearing | Dual Ball bearing |
Fan speed | 1200~ 5500 rpm |
Noise Level | 19~45 dBA |
Air Flow | 6.96~32.93 CFM |
Power | 1.2~ 5.4 W |
Static pressure | 0.2~4.5 mmH2O |
Fan connector | 4-pin |
Lead wire | UL1061 #26AWG or equivalent |
Pin Assignment | Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM) |
