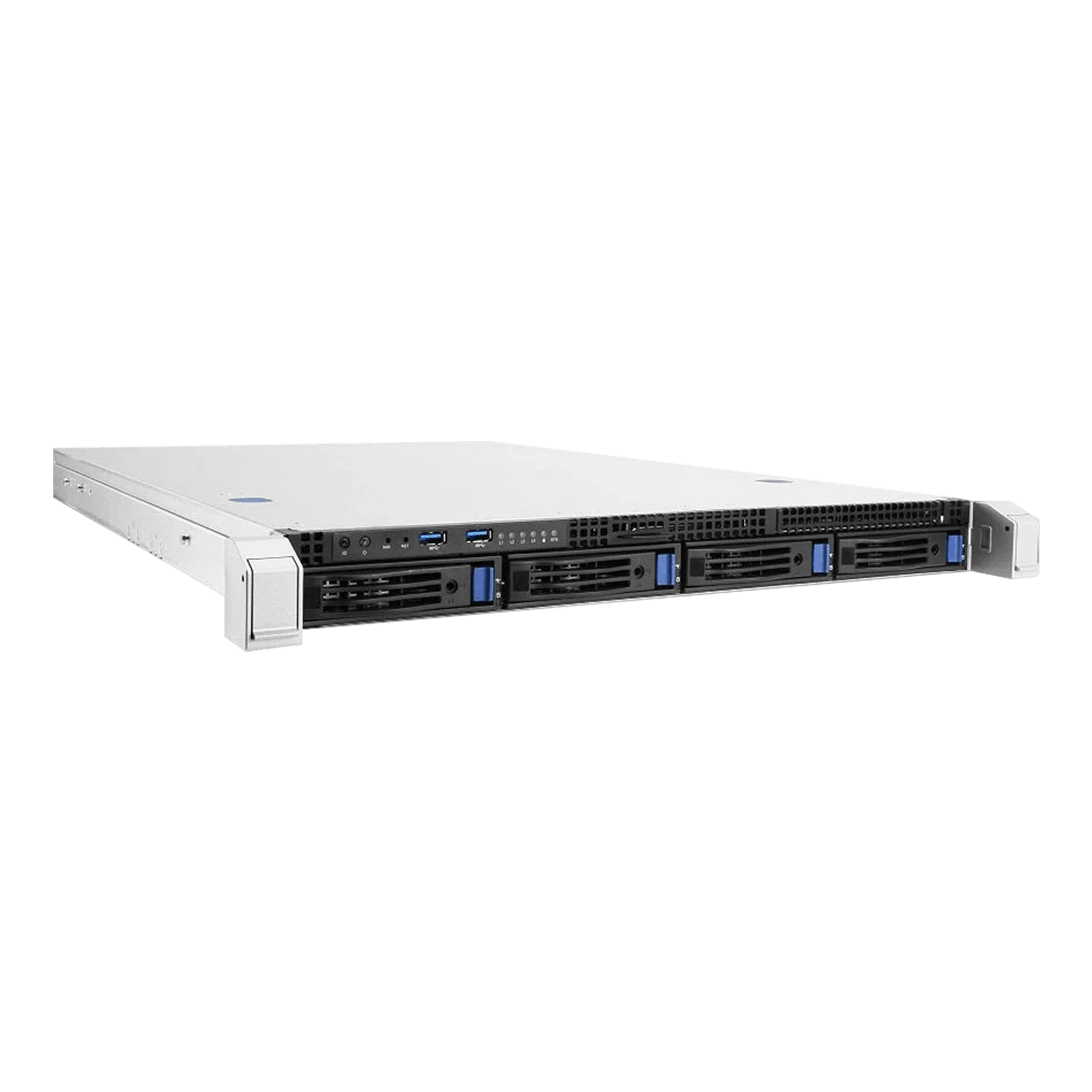

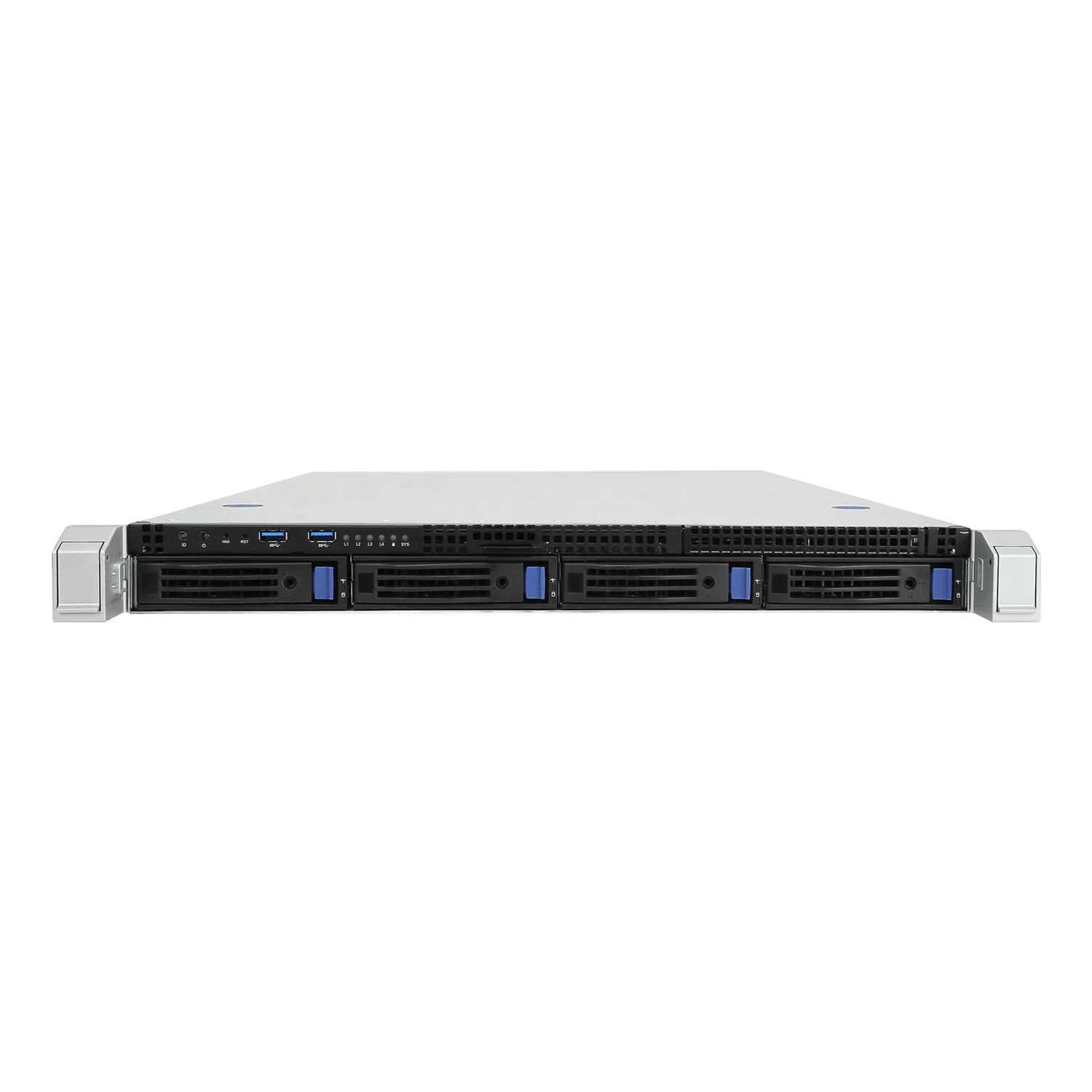

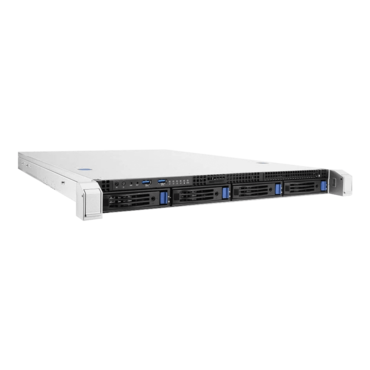

IW-RS104-02M-R750, 1x Slim ODD, 4x 3.5"/2.5" External Bays, 2x 2.5" Internal Bays, 750W Rdt PSU, EEB, Black/Grey, 1U Chassis - TAA Compliant
Quantity:
- SKU: 18528494
- Manufacturer: InWin
- MPN: IW-RS104-02M-R750
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$711.19
| Standard | EIA-RS310D |
| M/B Form | Factor ATX (12” x 9.6”), ATX(12” x10”), EEB(12” x 13”) |
| Dimensions (D x W x H) | 625 x 482.6 x 44.4 mm (24" x 19" x 1.75") |
| Drive Bay | External: Slim ODD x 1 or internal 2.5” HDD x 1 , Hot-Swap 3.5" x 4 or 2.5" x 4<r/td>Internal: 2.5" HDD x 2 |
| Power Supply |
Supports ? Form Factor: Single or 1U 1+1 Redundant ? Watt: Single 500W, Redundant up to 650W |
| Indicator | Power Status, HDD, LANs, System Fail Activity LEDs, |
| Front Control Panel | Power Switch, ID Switch, System Reset, NMI, USB 3.0 x 2 |
| Backplane | SATA x 4 (6Gb/s Supported) or Mini SAS HD(12G/s Supported) |
| Cooling Fan | Supports 40 mm (Up to T= 56 mm) PWM Easy-Swap Fan x 6 |
| Expansion Slot | Full Height PCI Slot x 1 (via riser card and bracket) |
| Material |
Material: SGCC Thickness: 1.0 mm |
| Slide Rail | 28” Ball-bearing slide rail |
