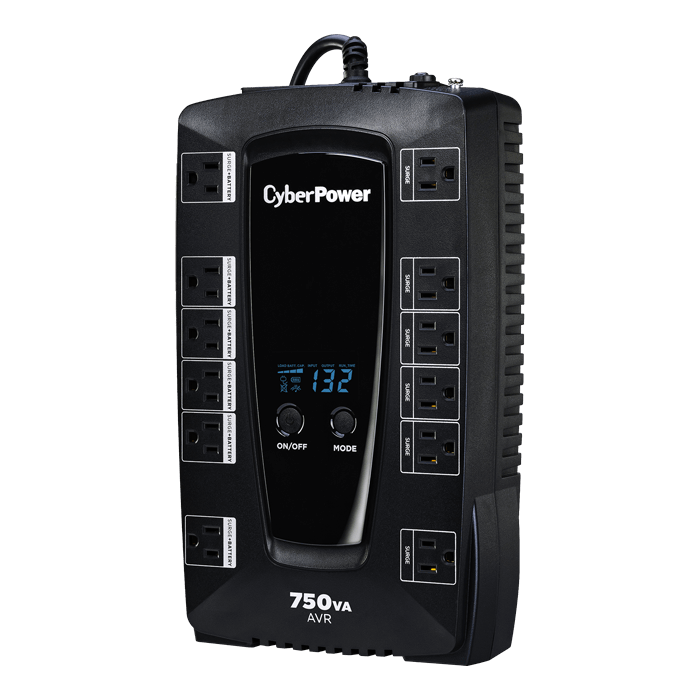

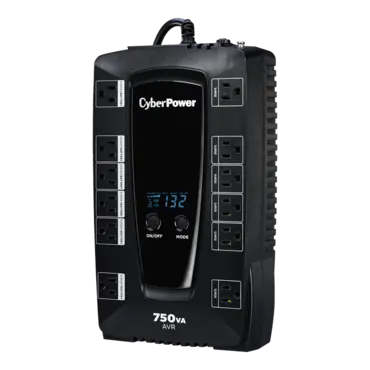

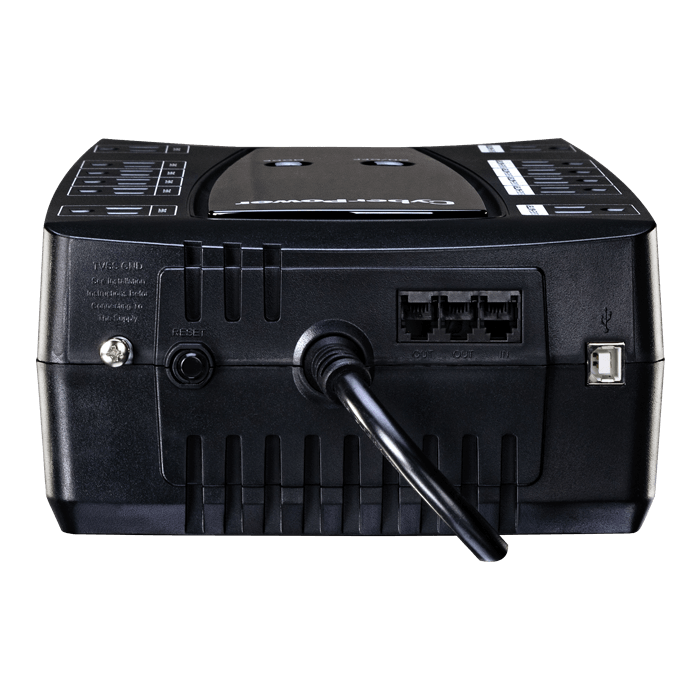

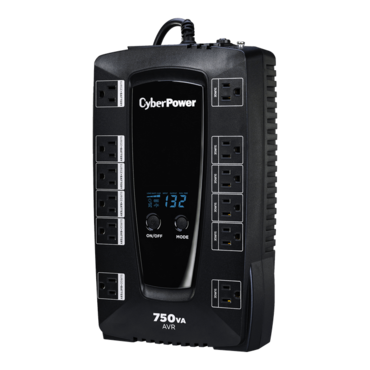

Intelligent LCD AVRG750LCD, 750 VA/450 W, Simulated Sine Wave, Tower UPS
Quantity:
- SKU: 9758826
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: AVRG750LCD
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$115.95
- Capacity: 750 VA / 450 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 5 ft. cord
- Outlets: 12 (6 surge, 6 surge + battery backup)
- Data line protection: Telephone
- Management software: PowerPanel® Personal
- Warranty: 3 year
| General | |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass |
| Input | |
| Voltage | Nominal 120 VAC |
| Input Voltage Range | 90 – 148 VAC |
| Frequency | 60 Hz ± 3 Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | Right Angle, 45° Offset Right |
| Cord Length | 5 ft |
| Output | |
| VA | 750 VA |
| Watts | 450 W |
| Automatic Voltage Regulation | Boost +10% / Buck -10% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Waveform | Simulated Sine Wave |
| Outlets – Total | 12 |
| Outlets – Battery & Surge Protected | 6 |
| Outlets – Surge-Only Protected | 6 |
| Transfer Time | 4 ms |
| Outlet Type | NEMA 5-15R |
| Overload Protection |
Internal Circuitry Limiting
Circuit Breaker |
| Rated Power Factor | 0.6 |
| Battery | |
| Runtime at Half Load | 7.6 minutes |
| Runtime at Full Load | 2.5 minutes |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/7Ah |
| Battery Quantity | 1 |
| Hot-Swappable | No |
| User Replaceable | Yes |
| Replacement Battery Cartridge | RB1270B |
| Replacement Battery Cartridge Quantity | 1 |
| Typical Recharge Time | 8 Hours |
| Surge Protection & Filtering | |
| Surge Suppression | 1,030 J |
| Phone RJ11 | 1-In, 2-Out |
| EMI/RFI Filtration | Yes |
| Management & Communications | |
| HID Compliant USB Port | Yes |
| Cable Management | USB Cable |
| LED Indicators |
Power On
Wiring Fault |
| Multifunction LCD Panel |
Voltage
Frequency Runtime % Load % Battery Online Muted |
| Audible Alarms |
On Battery
Low Battery Overload Fault |
| Software | PowerPanel® Personal |
| Physical | |
| Form Factor | Compact |
| Keyhole Mounting Slots | Yes |
| Dimensions – W×H×D (in) | 12.2 × 7 × 3.5 |
| Weight (lbs) | 12.4 |
| Environmental | |
| Operating Temperature | 32° F – 104° F °F (0° C – 40° C °C) |
| Operating Humidity | 0 – 90% (non-condensing) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Maximum Operating Elevation | 6,562 ft (2,000 m) |
| Maximum Storage Elevation | 50,000 ft (15,000 m) |
| Certifications | |
| Safety |
UL1778 4th
cUL 107.3-05 FCC DOC Class B |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
