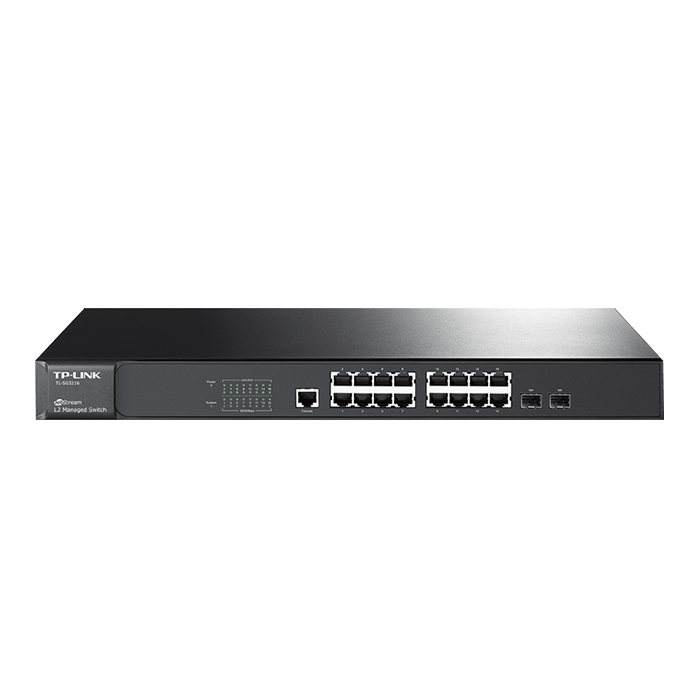

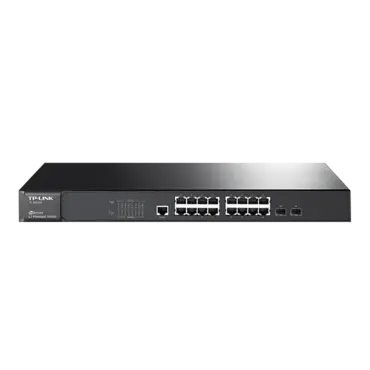

TP-LINK JetStream gigabit L2 managed switch TL-SG3216 provides 16 10/100/1000Mbps ports. The switch provides high performance, enterprise-level QoS, advanced security strategies and rich layer 2 management features. Moreover, the switch also comes equipped with 2 combo SFP slots, expanding your network flexibly. This JetStream gigabit L2 managed switch is cost-effective for the ideal small and medium business solution.
TL-SG3216 have robust security and management features. The IP-MAC-Port-VID Binding and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service(DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive Layer 2 Switch and gigabit capability, TP-LINK JetStream L2 managed SwitchTL-SG3216 provides you the ideal access-edge solution.
- IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies
- L2/L3/L4 QoS and IGMP snooping optimize voice and video application
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
HARDWARE FEATURES | |
Standards and Protocols | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z, IEEE 802.3ad,IEEE 802.3x,IEEE 802.1d,IEEE 802.1s, IEEE 802.1w,IEEE 802.1q,IEEE 802.1x,IEEE 802.1p |
Interface | 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2 Combo 100/1000Mbps SFP Slots 1 Console Port |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 100BASE-FX:MMF,SMF 1000BASE-X: MMF, SMF |
Fan Quantity | Fanless |
Power Supply | 100~240VAC, 50/60Hz |
Power Consumption | Maximum: 14.7W (220V/50Hz) |
Dimensions ( W x D x H ) | 17.3*8.7*1.7 in.(440*220*44 mm) |
PERFORMANCE | |
Bandwidth/Backplane | 32Gbps |
Packet Forwarding Rate | 23.8Mpps |
MAC Address Table | 8k |
Packet Buffer Memory | 512KB |
Jumbo Frame | 10240 Bytes |
SOFTWARE FEATURES | |
Quality of Service | Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN |
L2 Features | IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control |
VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) Port/ MAC/Protocol-based VLAN GARP/GVRP |
Access Control List | L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range Based |
Security | IP-MAC-Port-VID Binding IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN DoS Defence Dynamic ARP inspection (DAI) SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm Control |
IPv6 | Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 |
IPv6 Applications | DHCPv6 Client Ping6 Tracert6 Telnet(v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP |
Management | Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) DHCP/BOOTP Client,DHCP Snooping,DHCP Option82 CPU Monitoring Port Mirroring Time Setting: SNTP Integrated NDP/NTDP feature Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents | Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet |
System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
Environment | Operating Temperature: 0?~40? (32?~104?); Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
