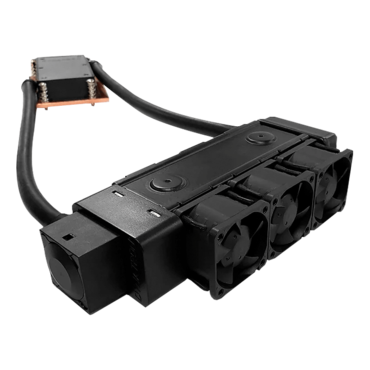

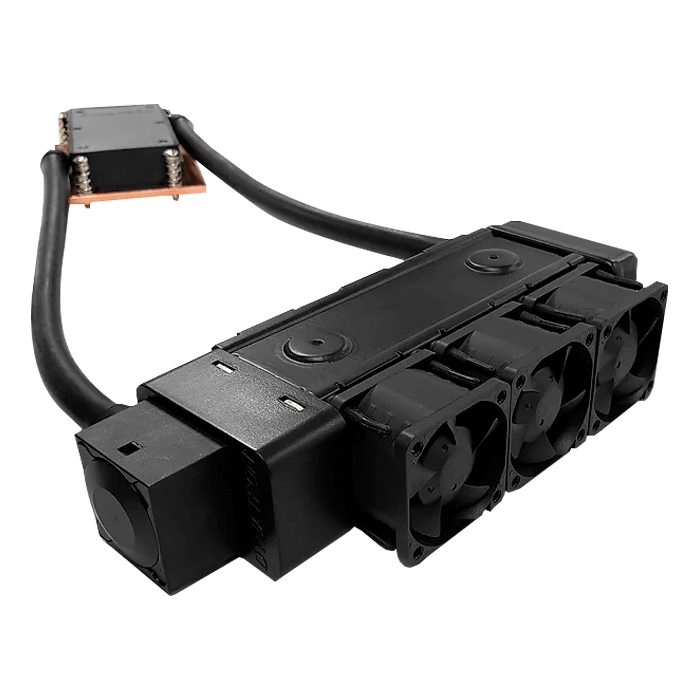

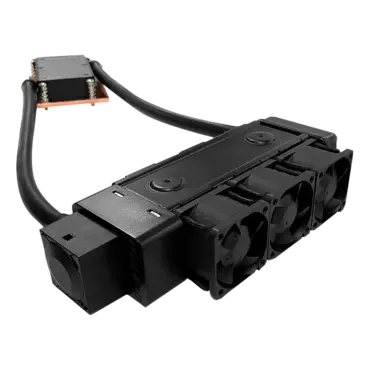

L29 All-in-one Liquid Cooler for 1U Servers, Socket sWRX8 / sTRX4 / TR4 / SP3
The Dynatron L29 CPU cooler is designed for L29 ( AMD SP3 TR4 for 1U & Up with 3x4028mm fan)
The Dynatron L29 CPU cooler is designed for L29 ( AMD SP3 TR4 for 1U & Up with 3x4028mm fan)
CPU Support | AMD® |
CPU Socket | Socket sWRX8/sTRX4/TR4/SP3 |
Solution | 1U Server |
Fan Dimension | 40.0 x 40.0 x 28.0 mm |
Speed |
At Duty Cycle 0~20%: 2000 ± 10% RPM At Duty Cycle 50%: 10000 ± 10% RPM At Duty Cycle 100%: 18000 ±10% RPM |
Bearing | 2 Ball Bearing |
Rated Voltage | 12V |
Power |
At Duty Cycle 0~20%: 2.40 W At Duty Cycle 50%: 7.20 W At Duty Cycle 100%: 15.60 W |
Air Flow |
At Duty Cycle 0~20%: 2.944 CFM At Duty Cycle 50%: 14.72 CFM At Duty Cycle 100%: 30.6 CFM |
Noise Level |
At Duty Cycle 0~20%: 16.00 dBA At Duty Cycle 50%: 44.24 dBA At Duty Cycle 100%: 57.00 dBA |
Air Pressure |
At Duty Cycle 0~20%: 0.61 mm-H2O At Duty Cycle 50%: 15.12 mm-H2O At Duty Cycle 100%: 49.0 mm-H2O |
Lead Wire Pin Out |
Pin1- (-) Pin2- (+) Pin3- (Tachometer output) Pin4- (PWM Control) |
Water Pump | Stand-alone Water Pump in flow rate 1.7 Liter Per Minute |
