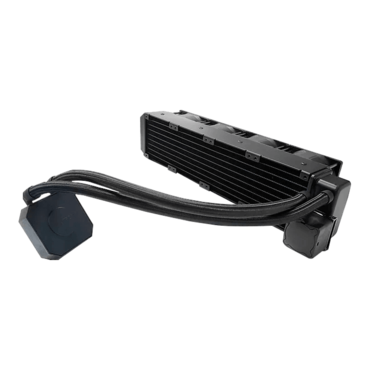

L34, Black, 384mm Radiator, Liquid Cooling System
Quantity:
- SKU: 17937403
- Manufacturer: DYNATRON
- MPN: L34
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$109.25
L34, Black, 384mm Radiator, Liquid Cooling System
The Dynatron L34 CPU cooler is designed for L34 (Multi-Socket 2U Active cooler w/ 4x 8038mm fan)
The Dynatron L34 CPU cooler is designed for L34 (Multi-Socket 2U Active cooler w/ 4x 8038mm fan)
| CPU Support | Intel & AMD |
| CPU Socket | LGA115x, LGA1366, LGA1700, LGA2011/2066 Square ILM AM2/AM3/AM4/AM5/FM1/FM2 |
| Screw Type | #6-32/M3/M4 |
| Installation Torque | 6-10 in-lb/5-7 in-lb/10-16 in-lb |
| Solution | 2U Server and Up |
| Fan Dimension | 80 x 80 x 38 mm |
| Cold Plate Dimension | 64.5 x 64.5 x 23 mm |
| Radiator Dimension | 383.5 x 86.5 x 85.4 mm |
| Speed |
At Duty Cycle 0~20%: 1350 ± 200 RPM At Duty Cycle 50%: 3100 ± 10% RPM At Duty Cycle 100%: 6000 ± 5% RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Power |
At Duty Cycle 0~ 20%: 1.20 W At Duty Cycle 50%: 3.84 W At Duty Cycle 100%: 22.8 W |
| Noise Level |
At Duty Cycle 0~ 20%: 24.77 dBA At Duty Cycle 50%: 42.82 dBA At Duty Cycle 100%: 57.16 dBA |
| Air Flow |
At Duty Cycle 0~ 20%: 23.085 CFM At Duty Cycle 50%: 53.01 CFM At Duty Cycle 100%: 102.60 CFM |
| Air Pressure |
At Duty Cycle 0~ 20%: 1.152 mm-H2O At Duty Cycle 50%: 6.074 mm-H2O At Duty Cycle 100%: 22.752 mm-H2O |
| Lead Wire Pin Out |
Pin1- (-) Pin2- (+) Pin3- (Tachometer/Signal output) Pin4- (PWM) |
| Life – Continuous operating under normal temperature (40 °C or 104 °F) | 70,000 Hours |
