L35, Black, 305mm Radiator, Liquid Cooling System
Quantity:
- SKU: 17936385
- Manufacturer: DYNATRON
- MPN: L35
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$101.20

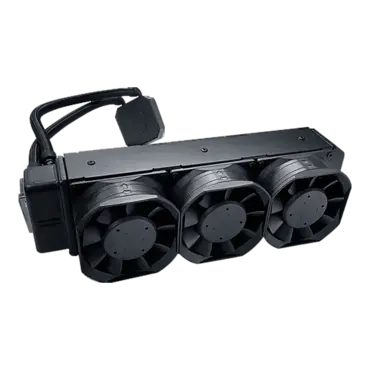

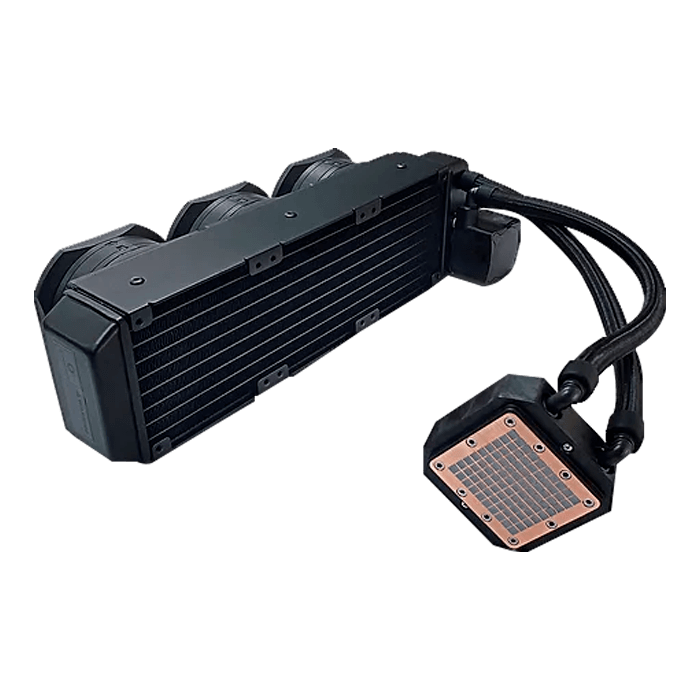

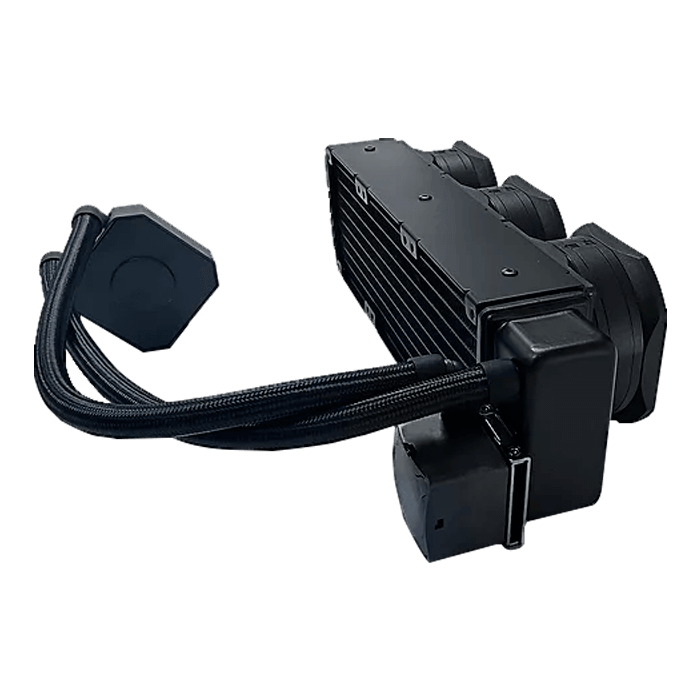

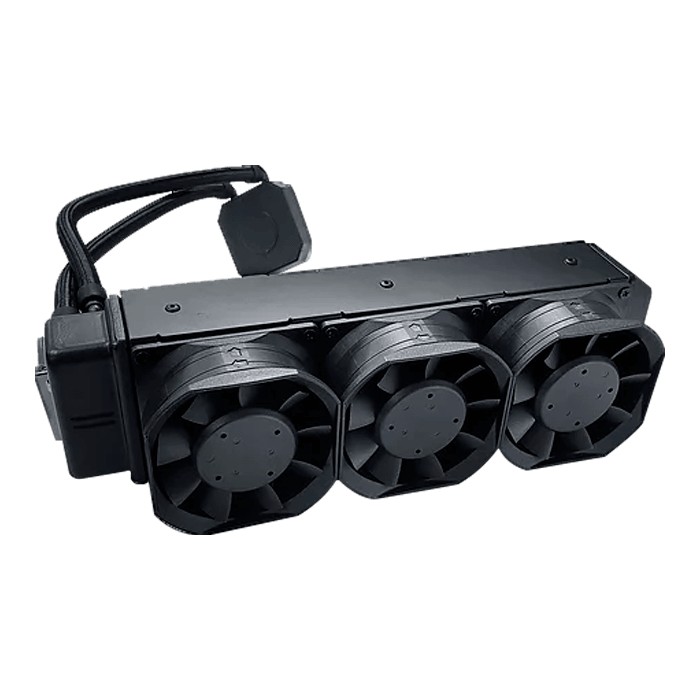

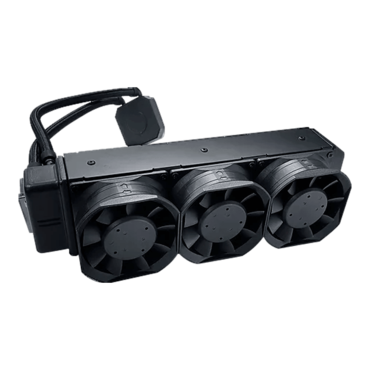

L35, Black, 305mm Radiator, Liquid Cooling System
The Dynatron L35 CPU cooler is designed for L35 (Multi-Socket 2U Active cooler w/ 3x 8038mm fan)
The Dynatron L35 CPU cooler is designed for L35 (Multi-Socket 2U Active cooler w/ 3x 8038mm fan)
| CPU Support | Intel & AMD |
| CPU Socket | LGA115x, LGA1366, LGA1700, LGA2011/2066 Square ILM AM2/AM3/AM4/AM5/FM1/FM2 |
| Screw Type | #6-32/M3/M4 |
| Installation Torque | 6-10 in-lb/5-7 in-lb/10-16 in-lb |
| Solution | 2U Server and Up |
| Fan Dimension | 80 x 80 x 38 mm |
| Cold Plate Dimension | 64.5 x 64.5 x 23 mm |
| Radiator Dimension | 304.9 x 82 x 85.1 mm |
| Speed |
At Duty Cycle 0~20%: 2400± 200 RPM At Duty Cycle 50%: 4800± 10% RPM At Duty Cycle 100%: 8000±10% RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Power |
At Duty Cycle 0~ 20%: 1.20 W At Duty Cycle 50%: 5.52 W At Duty Cycle 100%: 24.72 W |
| Noise Level |
At Duty Cycle 0~ 20%: 25.63 dBA At Duty Cycle 50%: 47.85 dBA At Duty Cycle 100%: 64.40 dBA |
| Air Flow |
At Duty Cycle 0~ 20%: 35.52 CFM At Duty Cycle 50%: 67.24 CFM At Duty Cycle 100%: 115.61 CFM |
| Air Pressure |
At Duty Cycle 0~ 20%: 1.39 mm-H2O At Duty Cycle 50%: 5.97 mm-H2O At Duty Cycle 100%: 34.06 mm-H2O |
| Lead Wire Pin Out |
Pin1- (-) Pin2- (+) Pin3- (Tachometer/Signal output) Pin4- (PWM) |
| Life – Continuous operating under normal temperature (40 °C or 104 °F) | 70,000 Hours |
