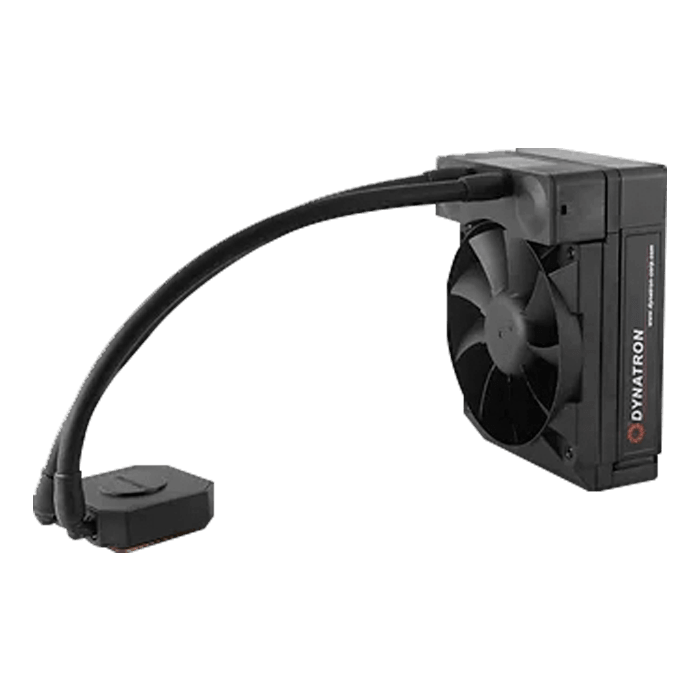

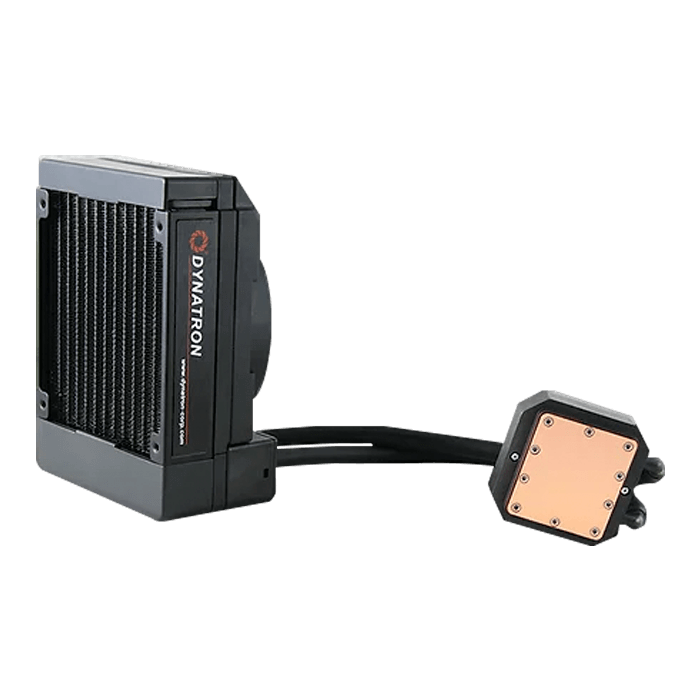

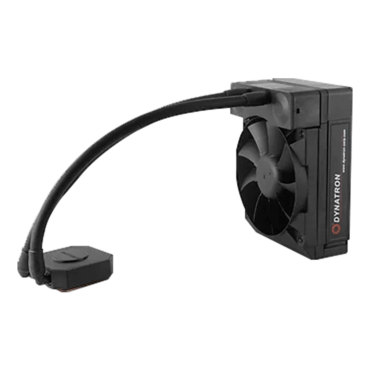

L5, Black, 120mm Radiator, Liquid Cooling System
The Dynatron L5 CPU cooler is designed for L5 ( Multi-socket for Desktop) 120mm
The Dynatron L5 CPU cooler is designed for L5 ( Multi-socket for Desktop) 120mm
CPU Support | Intel/AMD |
CPU Socket | Intel Socket LGA 2011/2066 Square/LGA 2011/2066 Narrow/LGA 1356/1366/LGA 115x/LGA 1200/LGA1700 AMD AM4/AM5/AM2/AM2+/AM3/FM1/FM2 |
Screw Type | #6-32/M3/M4 |
Installation Torque | 6-10 in-lb/5-7 in-lb/10-16 in-lb |
Solution | 4U, Tower PC |
Dimensions | 400.0 x 120.0 x 165.0 mm |
Weight | 1100 g |
Material | Copper cold plate, aluminum radiator |
Fan Dimension | 120 x 120 x 38 mm Blue LED PWM |
Speed |
At Duty Cycle 20%: 900 RPM At Duty Cycle 50%: 1500 RPM At Duty Cycle 100%: 2300 RPM |
Bearing | Liquid State Bearing |
Rated Voltage | 12V |
Power |
At Duty Cycle 20%: 1.2 W At Duty Cycle 50%: 2.0 W At Duty Cycle 100%: 4.9 W |
Air Flow |
At Duty Cycle 20%: 34.8 CFM At Duty Cycle 50%: 58.0 CFM At Duty Cycle 100%: 88.93 CFM |
Noise Level |
At Duty Cycle 20%: 17.3 dBA At Duty Cycle 50%: 28.4 dBA At Duty Cycle 100%: 37.7 dBA |
Air Pressure |
At Duty Cycle 20%: 0.79 mm-H2O At Duty Cycle 50%: 2.20 mm-H2O At Duty Cycle 100%: 5.17 mm-H2O |
Lead Wire Pin Out |
Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
Water Pump | Stand-alone Water Pump with Powerful Flow Rate 1.7 Liter Per Minute |

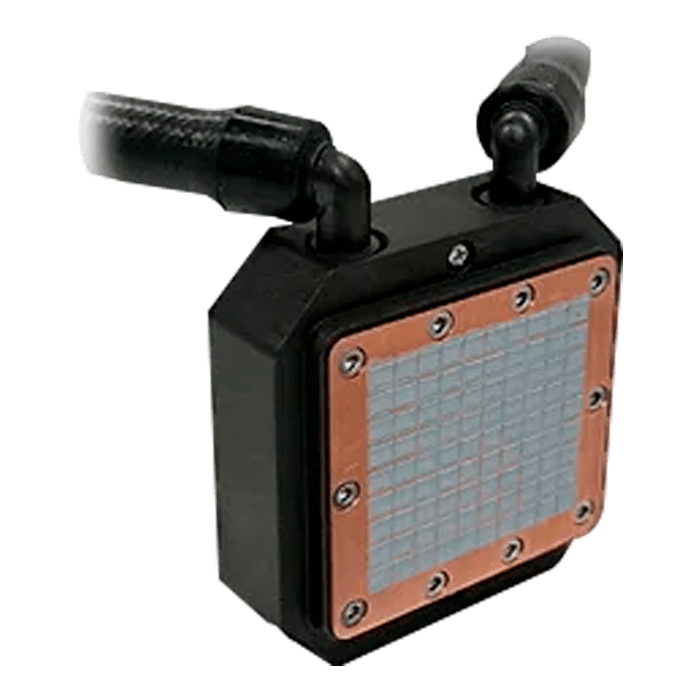

Radiator Dimension/Cold Plate Dimension | 165 x 96 x 120 mm/64.5 x 64.5 x 23.5 mm |
Life – Continuous operating under normal temperature (40 °C or 104 °F) | 70,000 Hours |
