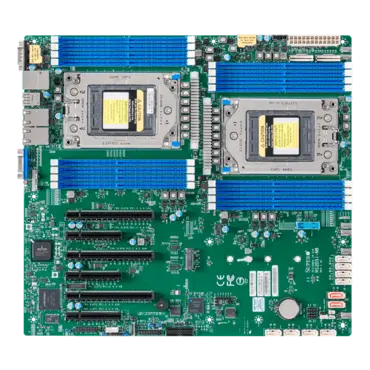

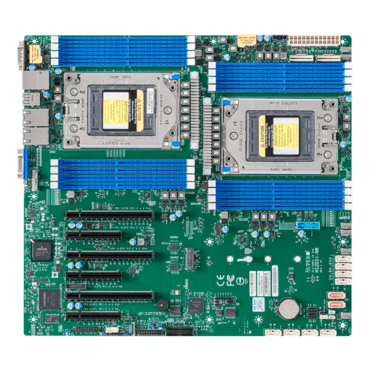

MBD-H12DSI-N6-O, AMD SoC, SP3 / 2, DDR4-3200 4TB RDIMM / 16, SATA DOM / 2, VGA, M.2, USB 3.0 / 2, GbLAN / 2, E-ATX Retail

Quantity:

SKU: 14697775
Manufacturer: SUPERMICRO
MPN: MBD-H12DSI-N6-O
Availability: USUALLY SHIPS WITHIN 3-5 DAYS

Starting At

$763.22

Product SKUs
MBD-H12DSi-N6	H12DSi-N6
Physical Stats
Form Factor	EATX
Dimensions	12" x 13.05" (30.5cm x 33.1cm)
Processor/Chipset
CPU	Dual AMD EPYC™ 7003/7002 Series Processors Socket SP3
Cores	Up to 64 Cores
Chipset	System on Chip
System Memory
Memory Capacity	16 DIMM slots Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM 8-channel memory bus For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type	DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
SATA	SATA3 (6 Gbps)
IPMI	Support for Intelligent Platform Management Interface v. 2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2600 BMC
Network Controllers	Dual LAN via Broadcom BCM5720L Gigabit Ethernet Controller
VGA	ASPEED AST2600 BMC
Input / Output
SATA	10 SATA3 (6 Gbps) ports
LAN	2x 1GbE LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 2.0 ports (rear) 4 USB 3.0 ports (2 rear, 2 headers)
VGA	1 VGA port
Others	1 COM port (rear) 2 SATA DOM power connectors 4 PCI-E 4.0 NVMe x4 internal ports TPM 2.0 header
Expansion Slots
PCI-Express	3 PCI-E 4.0 x16 slots 3 PCI-E 4.0 x8 slots
M.2	Interface: 1 PCI-E 4.0 x4 Form Factor: 2280, 22110 Key: M-key
Chassis ( Optimized for H12DSi-N6)
2U	SCLA25TQC-R609LP SCLA26AC12-R920LP1
3U	SC835TQC-R1K03B
Server(s) (with H12DSi-N6)
Model(s)	AS -2024S-TR
System BIOS
BIOS Type	AMI 256Mb SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 6.2 USB Keyboard Support SMBIOS 3.1.1
Management
Software	Supero Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN
Power Configurations	ACPI Power Management Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU	Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standby CPU switching voltage regulator VBAT
FAN	Up to 8 fan status tachometer monitoring Up to 8x 4-pin fan headers Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 8x Fan connectors I²C Temperature Sensing Logic
LED	CPU / System Overheat LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header
Operating Environment / Compliance
Environmental Specifications	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
