MCI-10G/82599-2S, 10Gbps, 2xSFP+, Ethernet, OCP Mezzanine Network Adapter
Quantity:
- SKU: 12671950
- Manufacturer: ASUS
- MPN: MCI-10G/82599-2S
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$179.12
MCI-10G/82599-2S, 10Gbps, 2xSFP+, Ethernet, OCP Mezzanine Network Adapter

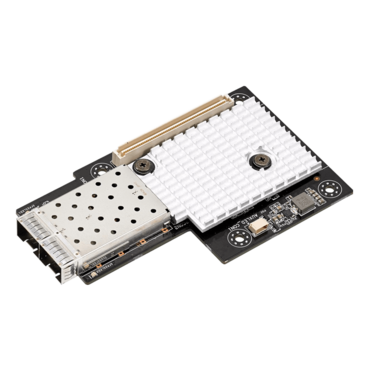

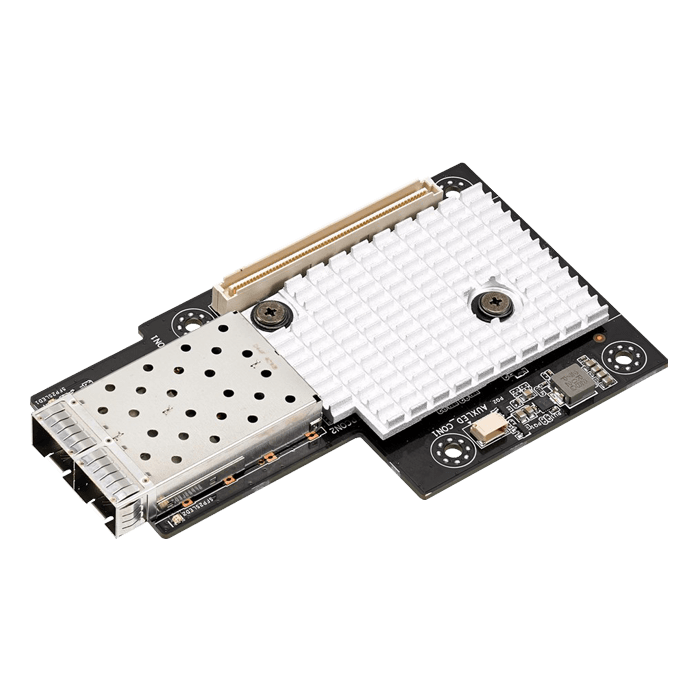

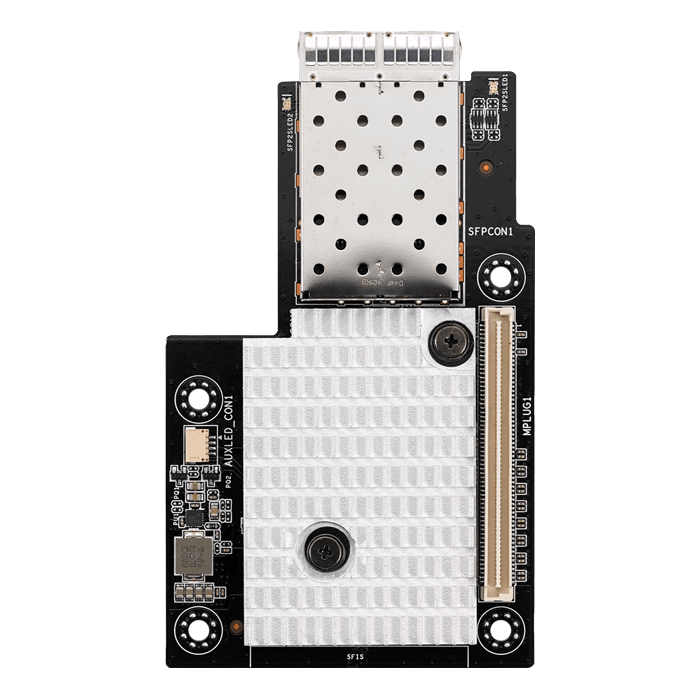

The ASUS MCI-10G/82599-2S SFP+ OCP network mezzanine card is designed for ASUS E8 and E9 series rack servers and provides a fiber solution via SFP+LR and SFP+SR optical modules, or enables a copper solution via direct-attach passive twinaxial cable. Its multiple connectivity options are ideal for applications requiring various distances and network architectures.
- Enables fiber and copper solutions for different data center applications
- Small form factor for flexible system integration
| Controller | Intel® 82599 |
| Data Transfer Rate | 10Gbps Ethernet |
| Connection Ports | Dual Port, SFP+ |
| Host Interface | PCIe 2.0 x8 |
| Module Type |
SFP+ SR/LR Optical Module AOC (Active Optical Cable) DAC (Direct Attached Copper) |
| Jumbo Frame | Yes (15.5 KBytes) |
| RDMA | No |
| Boot Support |
Pre-eXecution Environment (PXE) iSCSI boot FCoE boot |
| Form Factor | OCP Mezzanine Card |
| Dimensions | 2.68 x 4.33 Inch |
| Cable |
1. SMF up to 10km (LR) 2. MMF 62.5/50um up to 300m (SR) 3. Passive Twin-AX up to 10m (SFP+ Direct Attach) |
| Package Content |
1 x Card 1 x LED Signal Cable |
| Note | *All specifications are subject to change without prior notice. |
