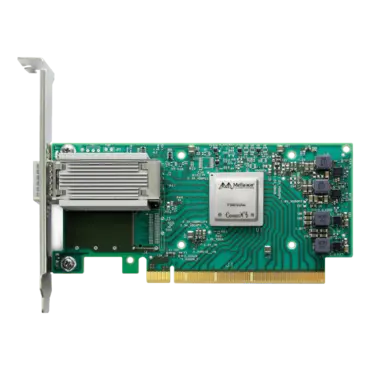

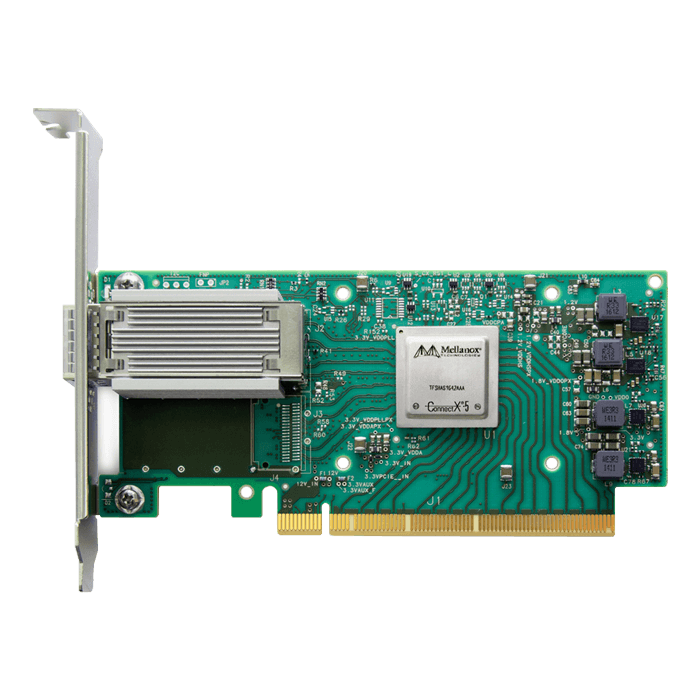

MCX555A-ECAT, 100Gbps, QSFP28, PCIe Network Adapter
Quantity:
- SKU: 10829210
- Manufacturer: MELLANOX
- MPN: MCX555A-ECAT
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$909.09
| Header | |
|---|---|
| Compatibility | PC |
| Manufacturer | MELLANOX TECHNOLOGIES INC |
| Packaged Quantity | 1 |
| Product Line | Mellanox ConnectX-5 VPI |
| Brand | Mellanox |
| Interface Provided | |
| Qty | 1 |
| Connector Type | QSFP28 |
| Type | 100Gb Ethernet / 100Gb Infiniband |
| Miscellaneous | |
| Compliant Standards | RoHS 6/6 |
| Networking | |
| Type | Network adapter |
| Form Factor | Plug-in card |
| Connectivity Technology | Wired |
| Data Transfer Rate | 100 Gbps |
| Data Link Protocol | 10 Gigabit Ethernet, 100 Gigabit Ethernet, 100 Gigabit InfiniBand, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, Gigabit Ethernet |
| Compliant Standards | IBTA 1.3, IEEE 1588v2, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by |
| Features | Auto-negotiation, Dynamically Connected transport (DCT), Extended Reliable Connected transport (XRC), InfiniBand DDR Link support, InfiniBand EDR Link support, InfiniBand FDR Link support, InfiniBand QDR Link support, InfiniBand SDR Link support, Jumbo Frames support, Large Receive Offload (LRO), Large Send Offload (LSO), On demand paging (ODP), PXE support, Quality of Service (QoS), RDMA over Converged Ethernet (RoCE), RDMA support, Receive Side Scaling (RSS), Transmit Side Scaling (TSS), UEFI support, Virtual Protocol Interconnect (VPI), VLAN support |
| Interface Type | PCI Express 3.0 x16 |
| Network Transport Protocol | iSCSI, TCP/IP, UDP/IP |
| PCI Specification Revision | PCIe 1.1, PCIe 2.0, PCIe 3.0 |
| Ports | |
| Qty | 1 |
| Type | 100Gb Ethernet / 100Gb Infiniband QSFP28 |
